Seamless Roaming

Seamless 802.11k/802.11v roaming automatically switches clients to the access point with the optimal signal with seamless transition while on the move.* This enables sensitive applications such as VoIP and video conferencing to be uninterrupted.

Multiple PoE options for easy installation

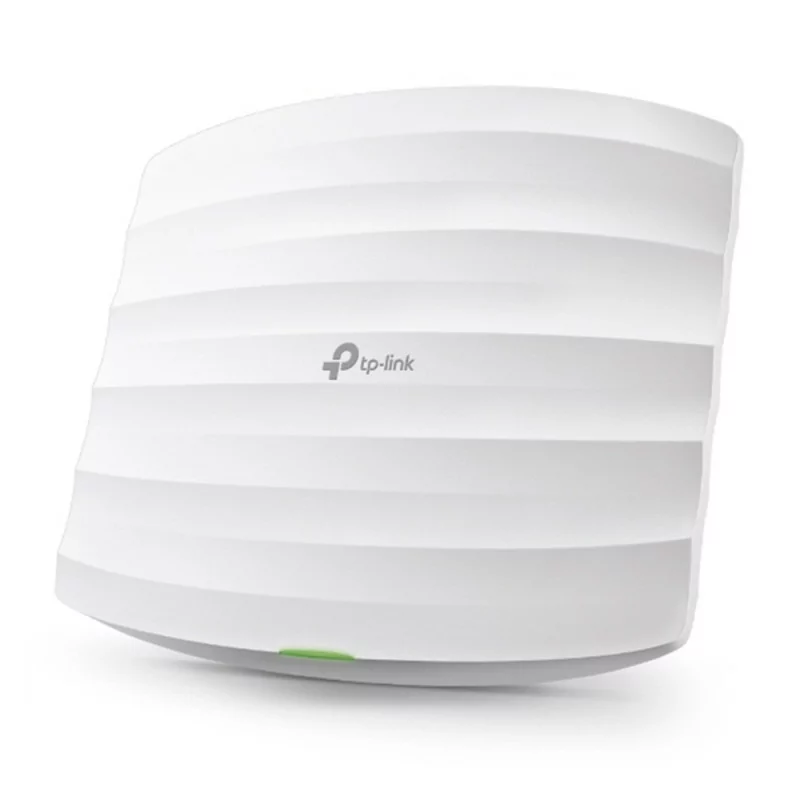

The EAP245 supports 802.3af PoE and Passive PoE power supply, which can be powered by a PoE switch or PoE adapter**. The addition of sleek appearance and simple mounting design for easy attachment to a wall or ceiling makes deployment easy and flexible.

• Wireless Standards: IEEE 802.11ac/n/g/b/a
• Frequencies: 2.4 GHz and 5 GHz
• Max speed: Up to 1300 Mbps (5 GHz), 450 Mbps (2.4 GHz)
• Customer capacity: Not specified
• Wireless Functions: MU-MIMO, Beamforming, Band Steering
• Wireless Security: WPA/WPA2-Enterprise, Captive Portal
• Transmit power: ≤20 dBm (2.4 GHz), ≤23 dBm (5 GHz)

• Ethernet ports: 2 x Gigabit RJ45
• Power Method: PoE 802.3af/at, 48V Passive PoE
• Maximum power consumption: 12.3 W

• Omada App: Yes
• Centralized Controller: Support for Omada Cloud-Based Controller
• Cloud access: Yes
• SNMP: v1, v2c
• Web Management: HTTP/HTTPS
• VLAN Management: Yes

• Operating temperature: 0–40℃
• Operating humidity: 10–90% (non-condensing)
• Certifications: CE, FCC, RoHS

• Dimensions: 205.5 × 181.5 × 37.1 mm
• Antenna Type: Internal omnidirectional (3x 3.5 dBi at 2.4 GHz, 3x 4 dBi at 5 GHz)

• Included: 5 EAP245 Access Points, 5 mounting kits, installation guide
