Easy installation

• Remove the front plate of the junction box* with a screwdriver.
• Remove the EAP front panel.

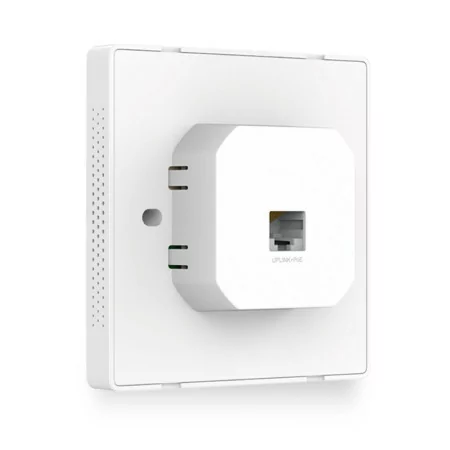

• Connect an in-wall Ethernet cable to the Uplink + POE port.
• Secure the access point to the wall using the nails provided.
• Press the front panel back into position.

Perfectly formed

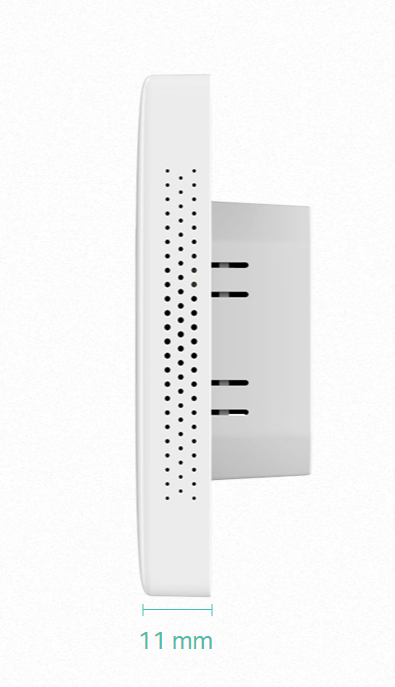

The EAP115-Wall would blend seamlessly into any business environment with a minimalist and refined appearance. A slim design includes a case that is only 11 mm thick.

Effortless deployment

With 802.3af Power over Ethernet supported, there’s no need for additional wiring. Simply connect your existing Ethernet cables and you’re good to go.

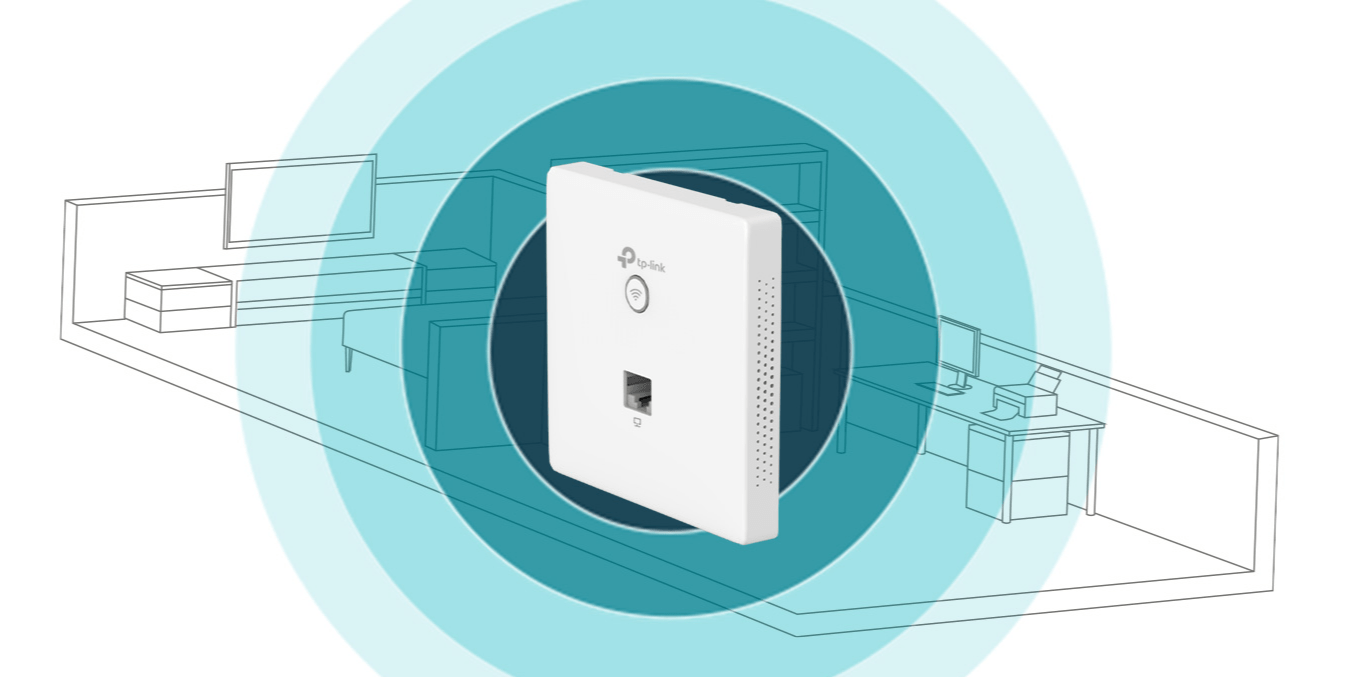

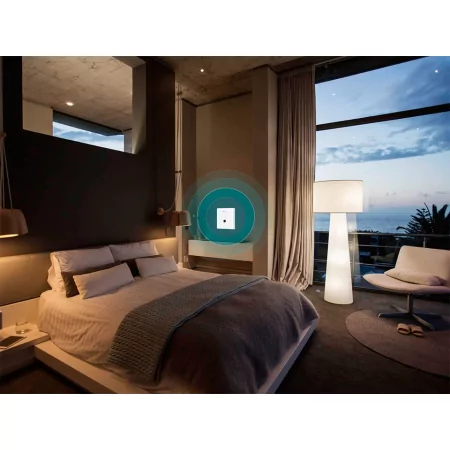

Complete wireless coverage

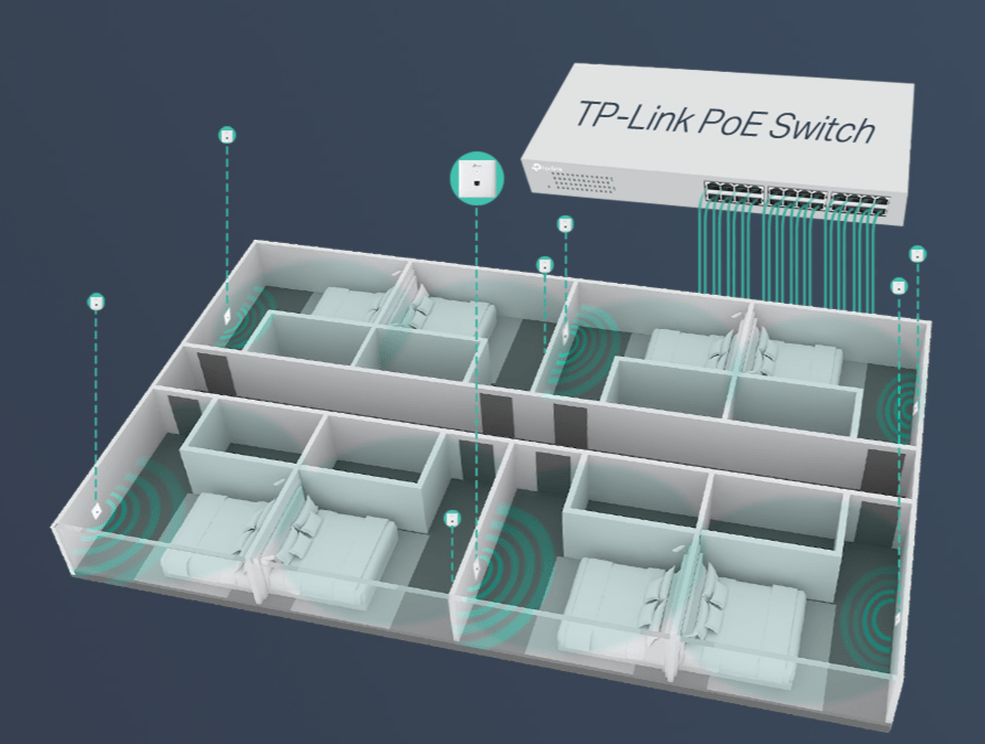

An EAP in each room ensures a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.

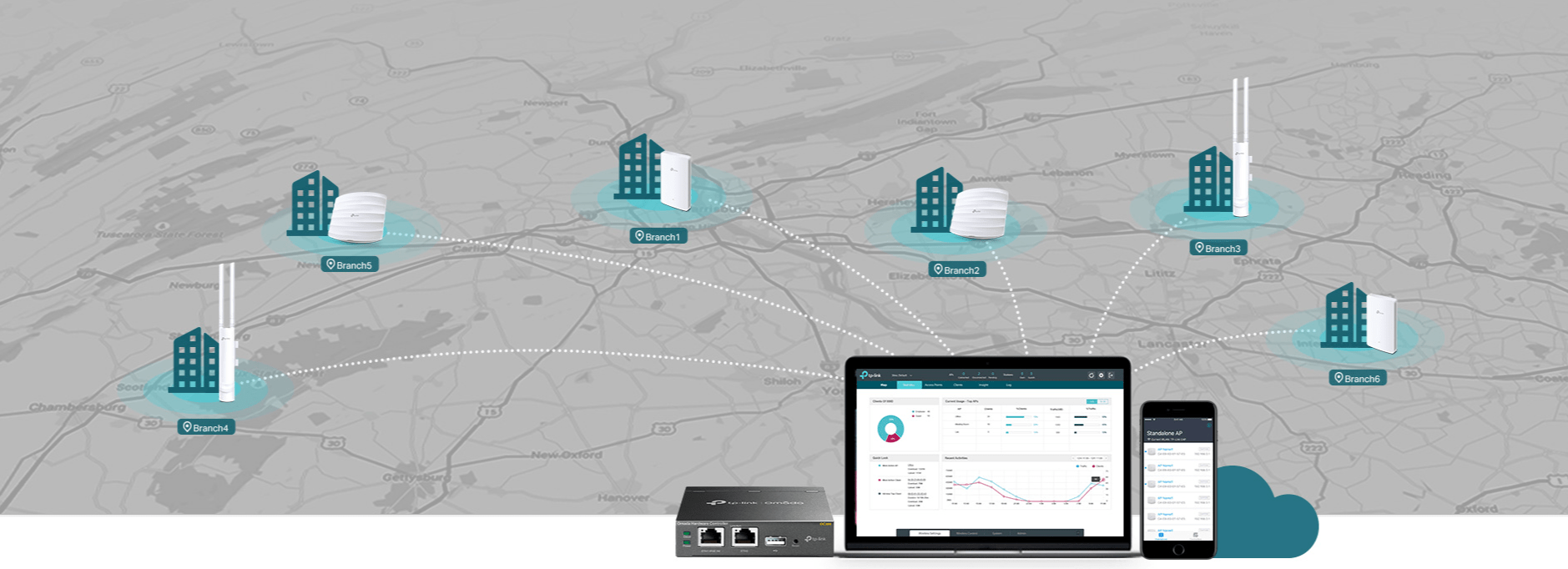

Free centralized cloud management

- Anytime, anywhere

The Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor your entire Omada network in real time, while the cloud service enables secure remote access wherever you are.

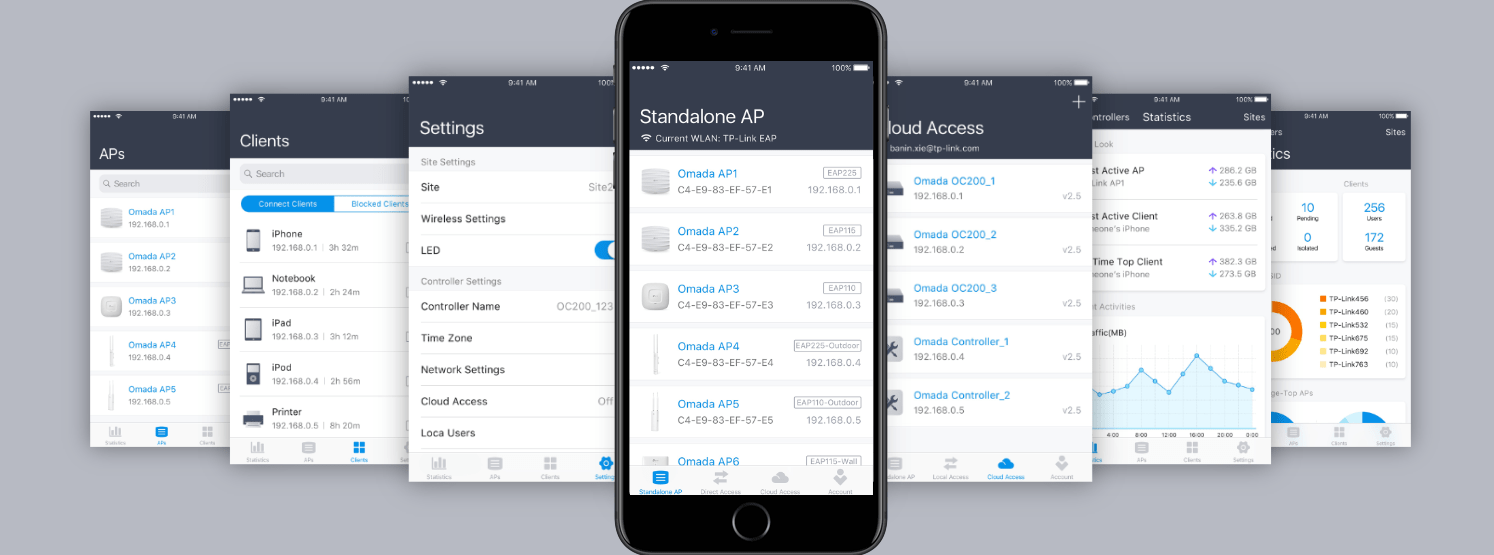

Easy management with the Omada app

Follow the setup instructions in the free Omada app to get set up in minutes. Omada lets you configure settings, monitor network status, and manage clients, all from the convenience of a smartphone or tablet.

• Transmit power: ≤20 dBm (2.4 GHz)
• Frequency: 2.4 GHz
• Antenna: 1.8 dBi (2x)
• Maximum signal rate: 300 Mbps (2.4 GHz)

• Ethernet port: 2 10/100 Mbps Ethernet ports
• Power supply: 802.3af PoE
• Power consumption: 2.8 W

• Web Management: HTTP/HTTPS
• App Management: Omada App
• SNMP: Support v1, v2c

• Operating temperature: 0°C to 40°C
• Certifications: CE, RoHS

• Dimensions: 143 × 86 × 42.6 mm
• Weight: 185 g

• Included: TP-Link EAP115-Wall, Mounting Kits, Installation Guide
