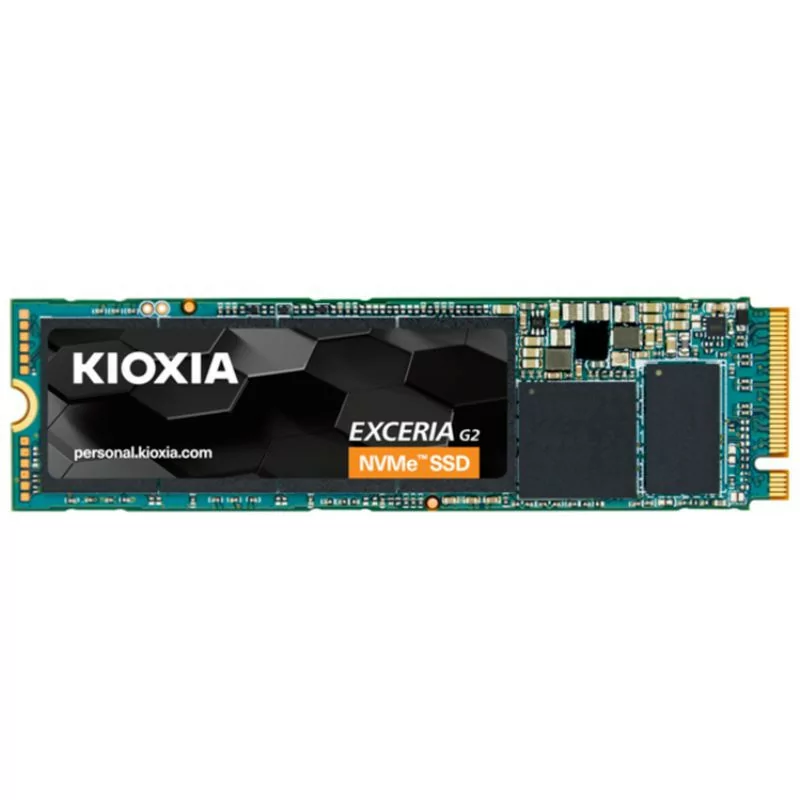

SSD M.2 2280 Kioxia Exceria - 2TB - PCIe NVMe - LRC20Z002TG8

Affordable Performance

The KIOXIA EXCERIA M.2 2280 SSD Series redefines conventional storage for everyday users who feel limited by SATA-based hardware. Say goodbye to hard drive lag and get a computing experience worthy of your applications. Compared to SATA SSDs , the EXCERIA G2 SSD series offers balanced performance and value that will transform your system.

Small and Compact for Easy Upgrading

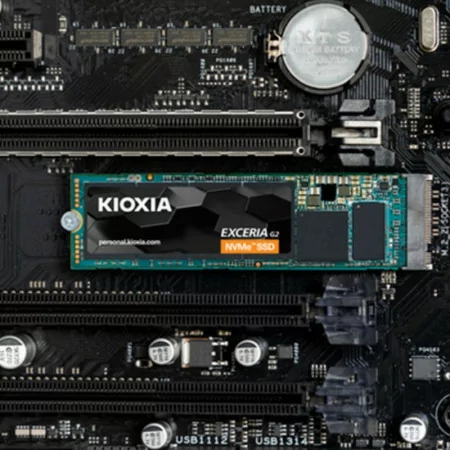

With a slim single-sided M.2 2280 form factor, the EXCERIA G 2 SSD series plugs directly into the motherboard, reducing the clutter of additional cables for a sleeker, easier system upgrade.

NVMe™ technology

Why continue to use an interface designed for hard drives? Utilizing NVMe™ 1.3c technology, the EXCERIA G2 SSD series reduces latency in your system's I/O path between your SSD and your CPU , resulting in smooth, responsive performance.

• Capacity: 500GB, 1TB, 2TB
• Form Factor: M.2 type 2280-S2-M
• Interface: PCI Express® Base Specification Revision 3.1a (PCIe®)
• Flash Memory Type: BiCS FLASH™ TLC
• Maximum Interface Speed: 32 GT/s (PCIe® Gen3x4)
• Dimensions (maximum: LxWxH): 80.15 x 22.15 x 2.23 mm
• Command Interface: NVM Express™ with command set revision 1.3c architecture
• Weight: 500GB, 1TB: 6.8 g (typ.); 2TB: 7.1g (typ.)

• Maximum Sequential Reading Speed: 2,100 MB/s
• Maximum Sequential Writing Speed: 1,700 MB/s
• Maximum Random Read Speed: 500GB, 1TB: 400,000 IOPS; 2TB: 360,000 IOPS
• Maximum Random Write Speed: 400,000 IOPS
• Endurance (TBW): 500GB: 200TB, 1TB: 400TB, 2TB: 800TB
• MTTF: 1.5 million hours

• Operating Temperature: 0 ℃ (Ta) to 85 ℃ (Tc)
• Storage Temperature: -40℃ to 85℃
• Certification: RoHS compliant
• Shock Resistance: 9.806 km/s2 {1 000 G} 0.5 ms average sine wave
• Vibration: 196 m/s2 {20 G} Peak, 10~2 000 Hz, (20 min / eje) x 3 ejes
• Supply Voltage: 3.3 V ±5 %
• Power Consumption (active): 500GB, 1TB: 3.5W (typ.), 2TB: 5.3W (typ.)

• PCI Express: Compatible with PCI Express® Base Specification Revision 3.1a and NVM Express™ Revision 1.3c command set
• Connector Type: M.2 M main socket
• Target Applications: Client desktops and laptops
