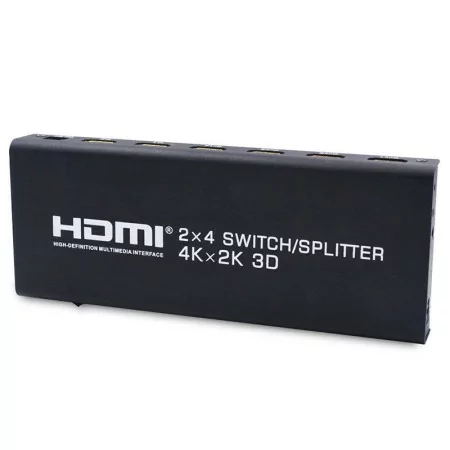

2x4 4 K HDMI Switch / Splitter:

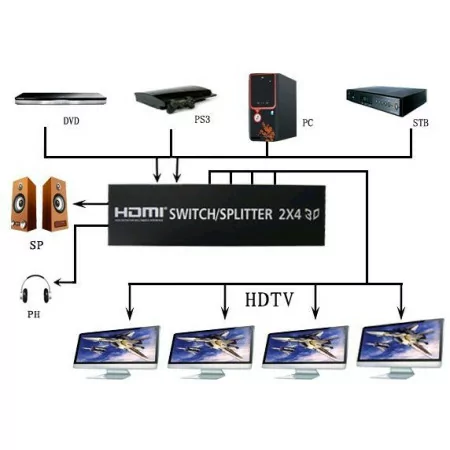

With HDMI Switch Splitter 2x4 you can connect 2 HD signal sources to 4 HD Display Terminals.

You can easily split the 2 HD signals generated by 2 HD signal sources to 4 HD display stands or projectors. Also, when connecting it to an HDMI output cable, it can amplify the HDMI signal. The 2 signal sources can be changed freely.

The HDMI Splitter supports all HD multichannel audio formats, including 720p, 1080i, 1080p, 2160p.

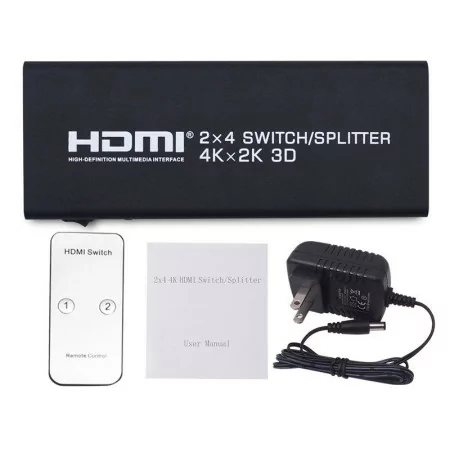

The remote control:
1) Press key 1 to switch to input 1, L1 indicator lights up.

2) Press button 2 to switch to input 2, L2 indicator lights up.

Features

• Support HDMI1.4b
• 3D support
• Supports highest video resolution 3840 * 2160 / 30Hz
• Support 3 5Gbps data rate for TMDS clock up to 300 MHz
• Support 8/10 / 12bit deep color
• Support AWG26 HDMI cable standard

1) When the resolution is 1080p and below, input up to 15 meters, output to 15 meters.

2) When the resolution is 4K, input up to 8 meters, output up to 8 meters.

Support single high-definition display for multiple sources such as DVD players

Satellite receivers, digital projectors, A / V receivers, set-top boxes and consoles among others.

Specifications:

• HDMI version - HDMI 1.4b
• HDMI Resolution - Up to 3840 * 2160 / 30Hz
• Support for video format - 8/10/12 deep color bits
• Supports audio format - DTS-HD / Dolby TrueHD- / DTS / Dolby-AC3 / DSD
• Max Bandwidth - 300 MHz
• Max baud rate - 3 Gbps
• Input cable distance - (1080p resolution) = 15m, (4K resolution) = 8m AWG26 HDMI cable standard
• Output cable distance - (1080p resolution) = 15m, (4K resolution) = 8m AWG26 HDMI cable standard
• Max working current - 1000mA
• Power adapter format - input: AC (50 Hz, 60 Hz) 100 V-240 V; Output: DC5V / 2A
• Operating Temperature Range - (-15to + 55)
• Dimension (L x W x H) - 00x70x25 (mm)
• Weight - 280g

Brand

K-Pro

Reference

KHS04
