UP TO 500 M2 OF WI-FI COVERAGE

The MW325R creates an expansive wireless network that is capable of covering your home with up to 500 m2 of wireless coverage. You can enjoy reliable, high-performance connections in your living room, bedroom or even your backyard.

FOUR 5 dBI ANTENNAS

Combining 2x2 MIMO Technology and four high-gain antennas, the MW325R is able to significantly increase its signal transmission and reception capabilities. That means you don't have to worry about lag or dropped connections while enjoying online gaming and video streaming.

INSTALLATION IN 3 STEPS

With no complicated setup required, you can simply follow the step-by-step instructions on the intuitive webpage to configure your MW325R in minutes.

NETWORK SECURITY

Comprehensive security features help your devices form secure connections with the MW325R.

Wireless:

-Wireless standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

-Frequency: 2.4 - 2.4835GHz

-Signal Rate: 11n: Up to 300Mbps (Dynamic) / 11g: Up to 54Mbps (Dynamic) / 11b: Up to 11Mbps (Dynamic)

-Transmit power: <20dBm

-Wireless security: WPA-PSK / WPA2-PSK

-Wireless functions: WDS

Software:

-WAN Type: Dynamic IP/Static IP/PPPoE

-Management: Access Control / Local Management / Remote Management

-DHCP: Server

-Port Forwarding: Virtual Server, UPnP, DMZ

-Dynamic DNS: Oray

-Firewall: IP and MAC Address Binding

-Protocols: IPv4

-Guest Network: 2.4GHz Guest Network

Hardware:

-Dimensions: 167 x 118 x 33 mm

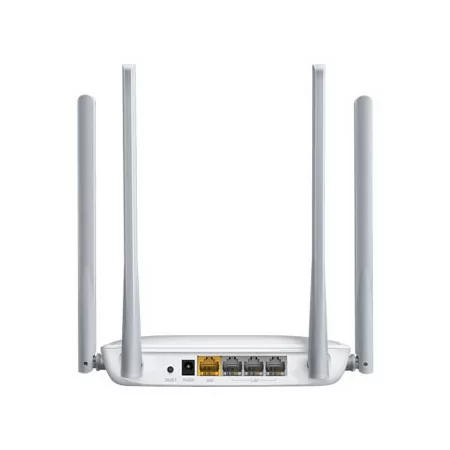

-Interfaces: 4 LAN 10/100Mbps Ports, 1 WAN 10/100Mbps Port

-Buttons: Reset button

-External Power Supply: 9VDC/0.6A

-Antenna: 4 Fixed Omnidirectional Antennas of 5dBi

Package content:

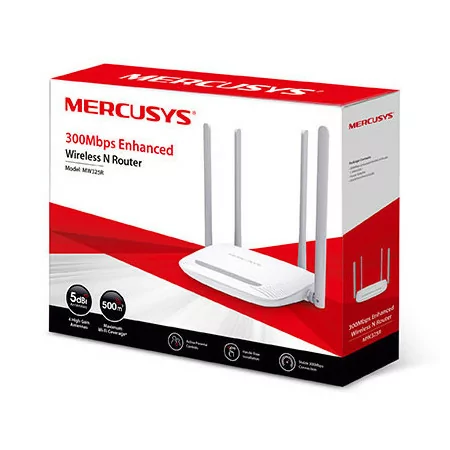

- Optimized Wireless N Router 300Mbps MW325R

-Power supply

-Quick Installation Guide

-Ethernet cable
