Ultra Fast WI-FI 6

Wi-Fi 6 (802.11ax) is the latest generation of Wi-Fi standards. Thanks to its superior transfer rates, the XIAOMI Router AX3200 lets you easily enjoy nearly twice the speed of a standard AC1200 router. The Wi-Fi 6 router significantly reduces latency and improves device responsiveness, even when multiple users are using different devices at the same time. Glide into the new digital era with an ultra-fast network response rate.

MU-MIMO Technology

MU-MIMO technology allows the multiple antennas on your XIAOMI Router AX3200 to provide network connectivity to multiple devices simultaneously. If a router were a highway, it would come with extra lanes that increase throughput and prevent unresponsiveness on your devices.

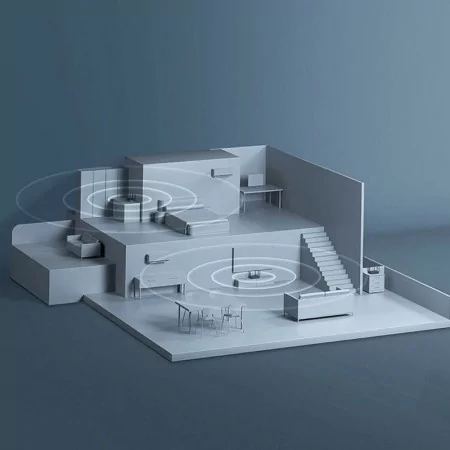

Whole-Home Coverage with Wi-Fi 6

Set up mesh networks made up of multiple routers compatible with Xiaomi mesh routers. Don’t worry about the layout of your home, because this system is designed to work in all types of complex layouts and provide signal coverage throughout your home. The wireless signal flows between each router seamlessly, allowing you to enjoy your network wherever you are.

Specifications:

• Processor: MediaTek Filogic800 Dual-core A53 1.35GHz CPU
• Network Processing Unit: 1.0 GHz Single-Core NPU
• Memory: 256 MB

Interface:

• 1 x 10/100/1000 Mbps self-adaptive WAN port (Auto MDI/MDIX)
• 3 x 10/100/1000Mbps Auto-adaptive LAN Ports (Auto MDI/MDIX)

LED indicator light:

• 1x System Indicator
• 1x Internet Indicator

Buttons:

• System reset button: 1
• Mesh network button: 1
• Power input port: 1

Protocol Standards:

• IEEE 802.11a/b/g/n/ac/ax
• IEEE 802.3/3u/3ab
• Dimensions: 284 x 186 x 186 mm

Wireless:

• Dual band: 2.4GHz, 5GHz

Modulation:

• 11b: DSSS: DBPSK (1 Mbps), DQPSK (2 Mbps), CCK (5.5/11 Mbps)
• 11a/g: OFDM: BPSK (6/9 Mbps), QPSK (12/18 Mbps), 16QAM (24/36 Mbps), 64QAM (48/54 Mbps)
• 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Data rate: MCS0-MCS15
• 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
• 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

Package Contents:

• 1x Xiaomi Router AX3200
• 1x User Manual
• 1x Power cable
• 1x Network cable
