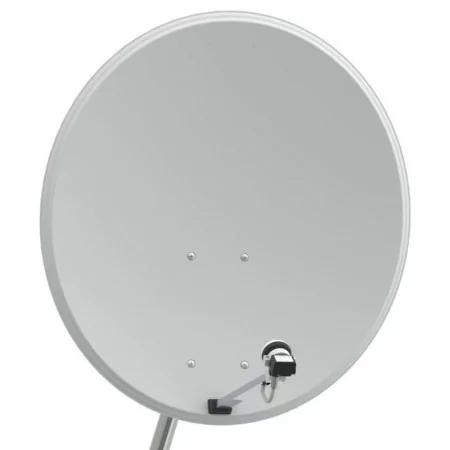

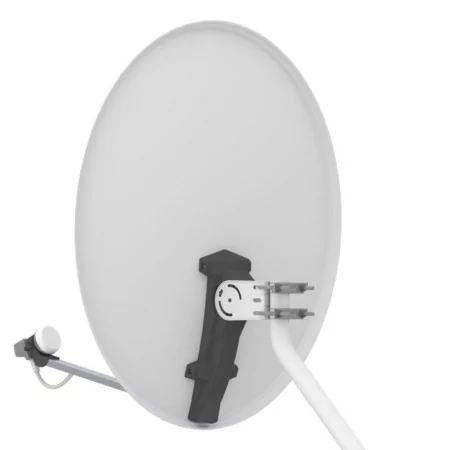

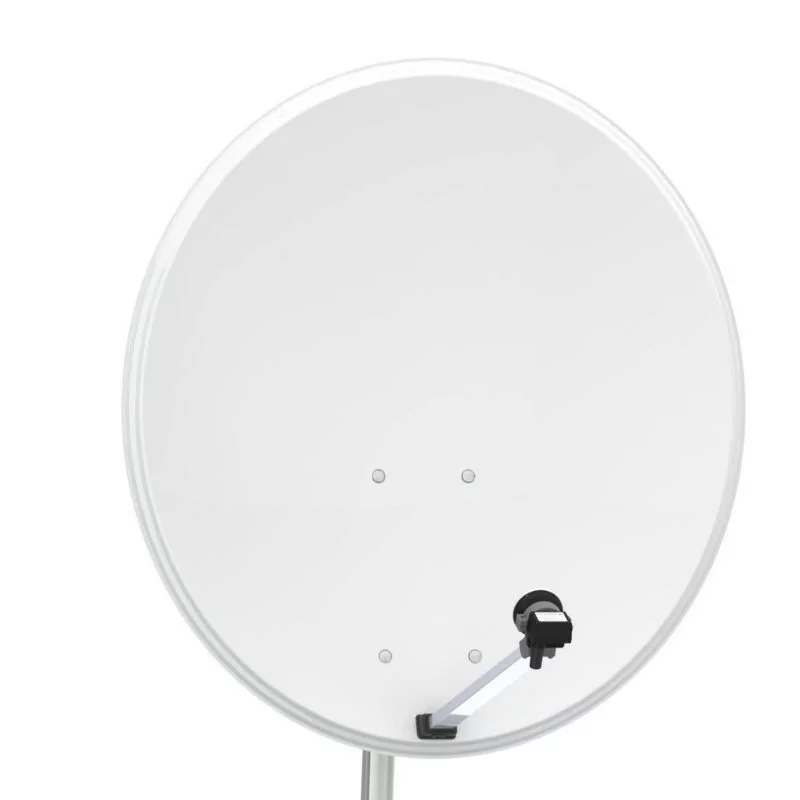

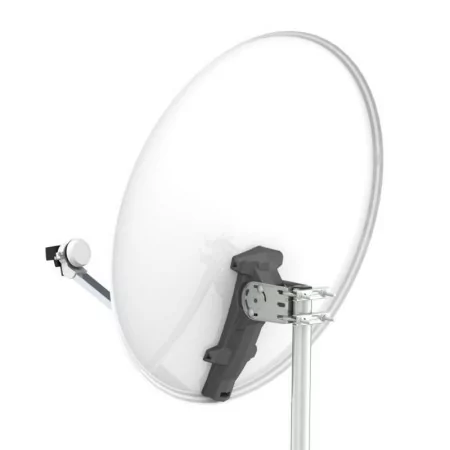

Aluminum Satellite Antenna 80cm - 80PB - AP0028 - 2 Clamps
REF: AP0028
EAN: 7924410272231
Aluminum Satellite Antenna 80cm - 80PB - AP0028 - 2 Clamps
REF: AP0028
EAN: 7924410272231
notifications
€29.90
Specifications:
- • Technical specifications
- • Type: Offset
- • Deviation (º): 24
- • Reflector Diameter (mm): 730 x 800
- • Focal Distance (mm): 467
- • F/D ratio: 0.64
- • Frequency Range (GHz): 10.70 – 12.75
- • Efficiency (%): > 70
- • Reflector Material: Galvanized Steel / Aluminum
- • Reflector Thickness (mm): 0.6 / 0.8
- • Polarization: Linear/Circular
- • Gain @ 10.7 GHz (dBi): 36.5
- • Gain @ 11.7 GHz (dBi): 37.3
- • Gain @ 12.7 GHz (dBi): 38.0
- • Elevation Adjustment Range (º): Min – 10 / Max – 90
- • Azimuth Adjustment Range (º): 360

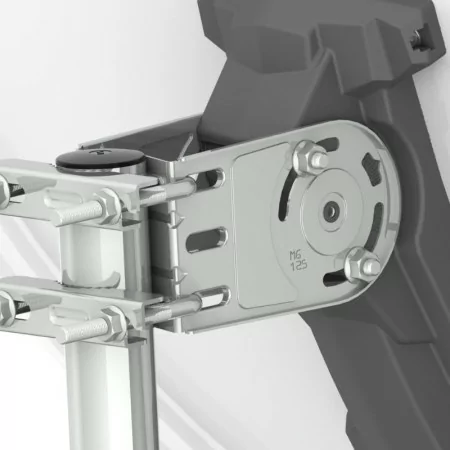

- • Mast Tube Interface (mm): 32-60
- • Feeding Interface Diameter (mm): 40
- • Beamwidth at -3 dB in azimuth: 2.2˚ at 12.75 GHz
- • Beamwidth at -3 dB in elevation: 2.2˚ at 12.75 GHz
- • Operating Wind Load (Km/h): 72 (IEC1114-2 Standard)
- • Survival Wind Load (Km/h): 144 (IEC1114-2 Standard)
- • Destructive Wind Load (Km/h): 216 (IEC1114-2 Standard)
- Brand
- Daxis
- Reference
- AP0028
- Stock Online
- Sold out
- Stock Store
- Sold out
