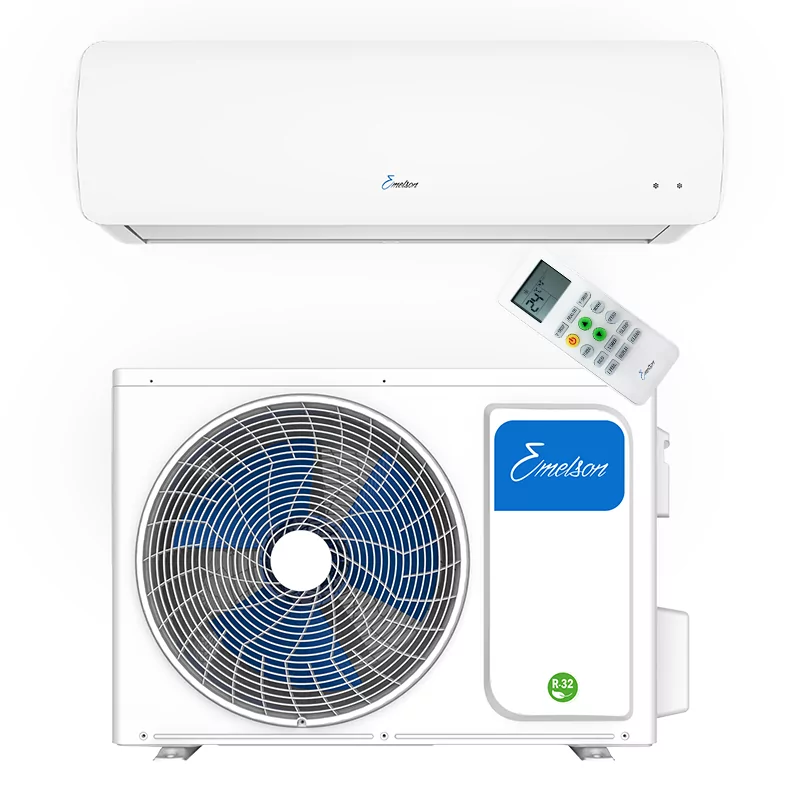

EMELSON EVO Split Air Conditioner - 12,000 BTU

Efficient and quiet air conditioning with triple filter.

The EMELSON EVO (model EML12EVO-R32) is a highly energy-efficient 1x1 split air conditioning system, ideal for air conditioning medium-sized rooms with maximum comfort and savings. Equipped with DC Inverter technology in the compressor and fans, and environmentally friendly R32 refrigerant, this model stands out for its triple purification filter and extended 5-year compressor warranty.

Main Features

Advanced Air Purification

• 3-in-1 Cold Catalytic Filter for maximum air quality:
• Cold Catalyst: eliminates odors and breaks down pollutants without consuming energy.
• Activated Charcoal: absorbs bad odors, fumes, and harmful particles.
• Silver Ion: powerful antibacterial and antiviral action
• Cleaner, healthier air for the whole family.

Advanced Technology

• DC Inverter Compressor and DC Inverter Fans for maximum efficiency and precise control.
• R32 refrigerant gas: more environmentally friendly, with less environmental impact and better performance.
• Golden Fin protection on coils for superior corrosion resistance.
• Operating temperature: -15°C to +53°C (outdoor) - works in extreme conditions.
• Selectable indoor temperature: 17°C to 32°C

Smart Functions

• Turbo Mode: rapid cooling/heating when needed.

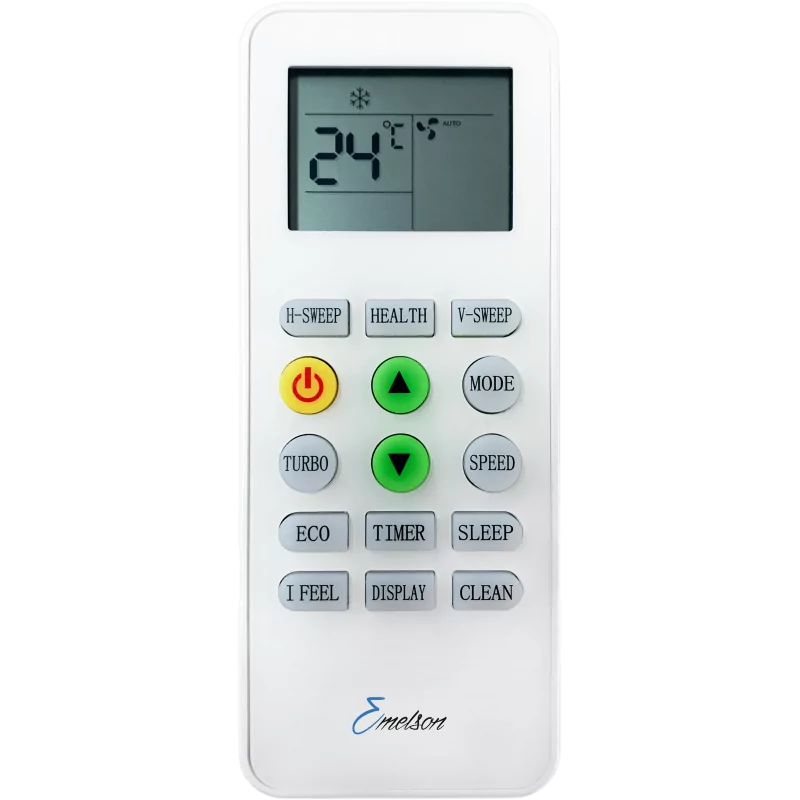

• I Feel function: sensor in the control that adjusts the temperature according to your exact location.
• Auto-restart: automatically resumes settings after a power failure.
• Self-Cleaning: prevents the formation of bacteria and eliminates bad odors.
• 24-hour stopwatch: flexible programming for automatic on/off.

Technical Specifications

Interior Unit

• Dimensions: 805 × 270 × 197 mm (W × H × D)
• Weight: 7.5 kg (net) / 8.5 kg (gross)
• Airflow: 400-550 m³/h (adjustable in 4 speeds)
• Sound pressure: 36-42 dB (minimum 21 dB in super quiet mode)
• Sound power: 37-52 dB

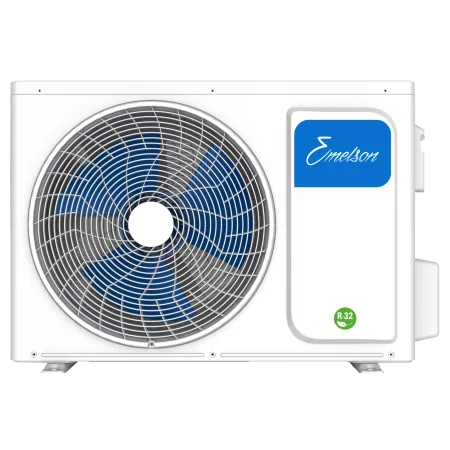

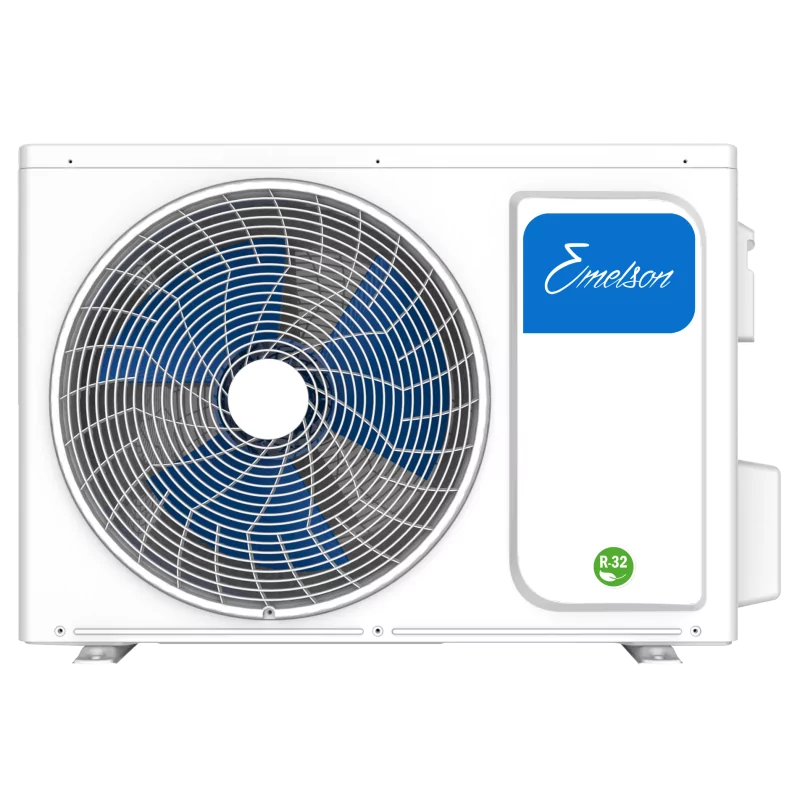

Outdoor Unit

• Dimensions: 665 × 530 × 260 mm (W × H × D)
• Weight: 22.8 kg (net) / 26.2 kg (gross)
• Airflow: 1650 m³/h
• Sound pressure: 52 dB
• Sound power: 64 dB

Installation

• Power supply: 220-240V ~ 50Hz (single phase)
• Electrical connection: 2 x 2.5 mm² + Ground (power supply) | 3 x 1.5 mm² + Ground (interconnection)
• Refrigeration connections: 1/4" - 3/8"
• Gas charge: 0.63 kg R32
• Extra charge: 15 g/m²
• Maximum pipe length: 20 m
• Maximum elevation difference: 15 m

Ideal for: Living rooms, bedrooms, offices or rooms up to 35m² that require efficient, extremely quiet air conditioning with advanced air purification.

EAN code: 8435483871212

Model: EML12EVO-R32
