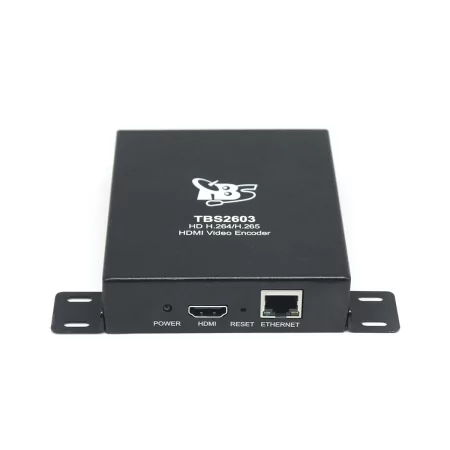

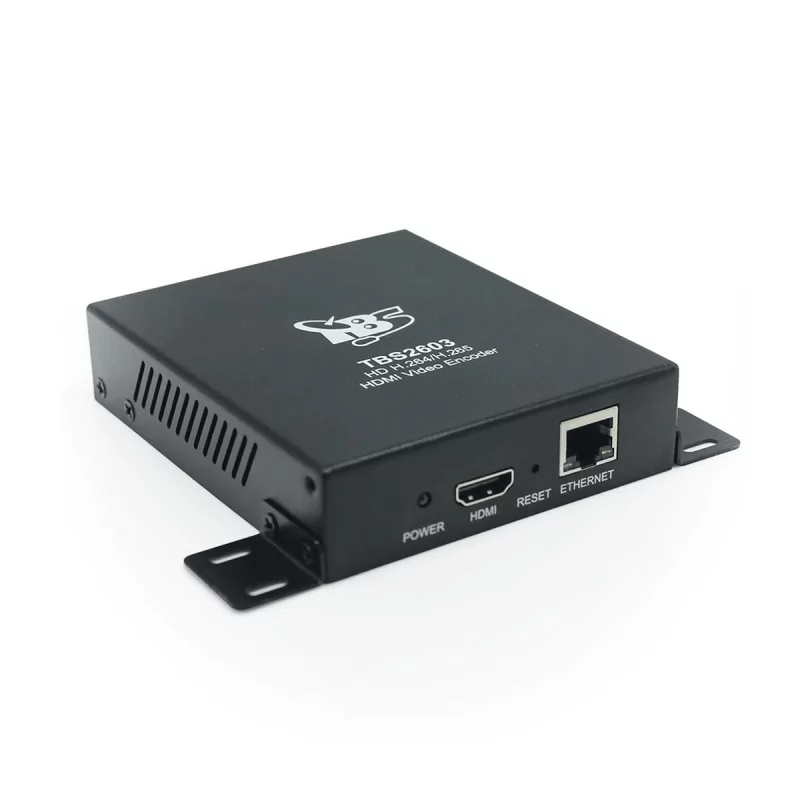

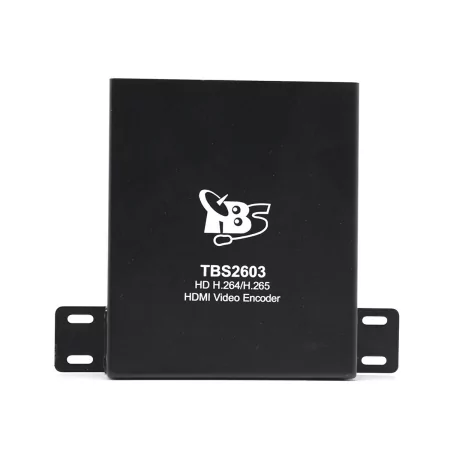

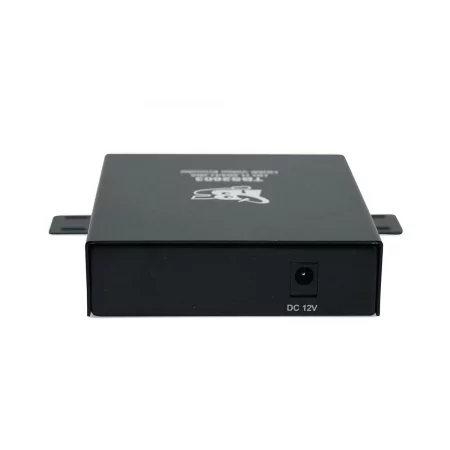

TBS2603 HD H.264/H.265 HDMI Video Encoder

The professional encoder with HDMI H.265 is the latest audio and video encoder with great functionality. Contains an HDMI input with H.264 / 265 encoding and AAC and Mp3 audio format. From any source inserted by HDMI, it generates an H.264 / 265 format compatible with HTTP / RTSP / RTP / RTMP / UDP protocols.

• Features
• Support multiple equipments display at the same time on a computer
• Support direct network connection without HD capture card
• Main stream and secondary stream can use different network protocols for transmission
• Low Power consumption, less than 6W

• Application
• IPTV
• Digital Signage
• Video Conference
• Replace HD Video Capture Card
• Hotel TV system
• Live Broadcast;
• Teaching/Campus Broadcast
• Recording System
• NVR (Network Video Recorder)

• Specifications

• Video
• Input: 1x HDMI (1.3a)
• HDMI Resolution:
• 1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/704*576 etc.
• Encoding: BASELINE PROFILE (for H.264 and H.265) / MAIN PROFILE (for H.264 only)/ HIGH PROFILE (for H.264 only)
• Data Rate: 0.8Mbps~12Mbps;
• Rate Control: CBR/VBR, 16KBIT/S~12MBIT/S
• GOP Structure: IBBP;
• Advanced Pretreatment: De-interlacing, Noise Reduction, Sharpening.
• Dimension: 110.5*70mm (length x height)
• Max Power consumption: 6W

• Audio
• Encoding: AAC, MP3
• Sampling rate: Auto
• Bit-rate: 32K/48K/64K/96K/128K/160K/192K
• Sampling precision: 16 bit
• Data Rate: 64Kb/s ~ 384Kb/s

• System
• System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64; Linux
• Ethernet/RJ45: 1000 Base-T Ethernet interface Protocol: RTSP/RTP/RTMP, HTTP, UDP

• Package Contents
• 1x TBS2603
• 1x AC line
• 1x Power adapter
• 1x HDMI cable
