HEAT DISSIPATION

High quality metal case, sturdy and durable with long service life, provides better heat dissipation, suitable for most environment.

Main Features:

- IEEE 802.3af / 802.3at compliant with the standard

-200-watt total PoE power capacity, up to 30-watt per port

-16 Ports GbE PoE+ 2 Ports x SFP Port

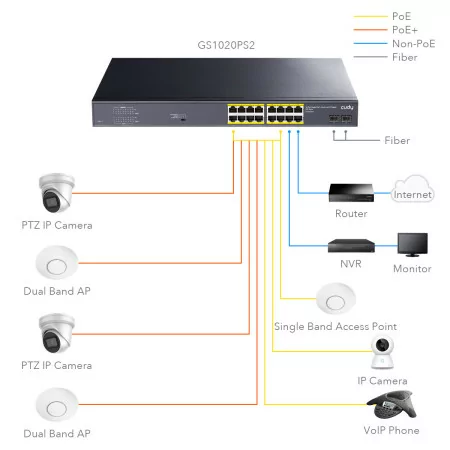

-CCTV mode supports remote power & data supply up to 250 meters

-VLAN mode supports 16 POE+ ports isolated from each other

-LED indicators for network diagnostics

-19-inch metal case, internal power design

Specifications:

-Power supply: Built-in AC100~240V power supply

-Interface:

-16x RJ45 Gigabit PoE ports

-2x SFP 1.25GbE ports

-PoE standards:

-IEEE802.3

-IEEE802.3u

-IEEE802.3x

-IEEE802.3ab

-IEEE802.3z

-Total Capacity: 200W for 16x PoE Ports

-Maximum PoE output per port:

-Maximum each port: 15.4W ( IEEE 802.3af )

-Maximum each port：30W ( IEEE 802.3at )

-Switching Capacity: 52Gbps

- Means of network:

-10BASE-T: Cat 5E UTP(≤250 meters)

-100BASE-TX: Cat5 or more UTP (≤100 meters)

-1000BASE-TX: Cat5 or more UTP (≤100 meters)

-MAC Address: 4K

-Packet Buffer Memory: 4M

-Packet Forwarding Rate: 38.7Mpps
