TEXAS INSTRUMENTS POE CHIPSET INSIDE

Texas Instruments TPS POE chipset and Realtek switch chipset ensure high performance and stable operation of the product.

Main Features:

- Complies with IEEE802.3af/at Standard

-Supports PoE power up to 32W for each PoE port

-Automatic detection of non-PoE device and PoE device

-Energy prioritization guarantees the supply of energy to Key Nodes

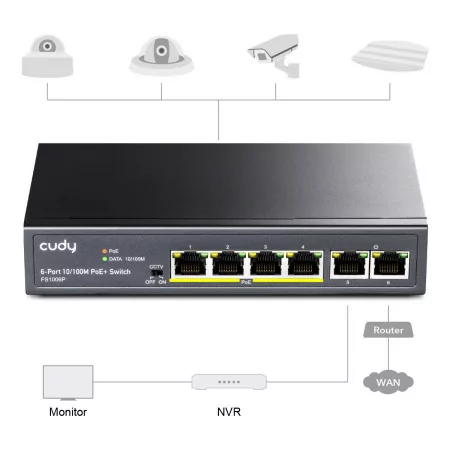

-Switch with CCTV/VLAN mode, remote power and data up to 250m

-Supports IEEE802.3 x full duplex / half duplex flow control

-Supports store and forward for data exchange

Specifications:

-PoE standard: IEEE802.3af/at

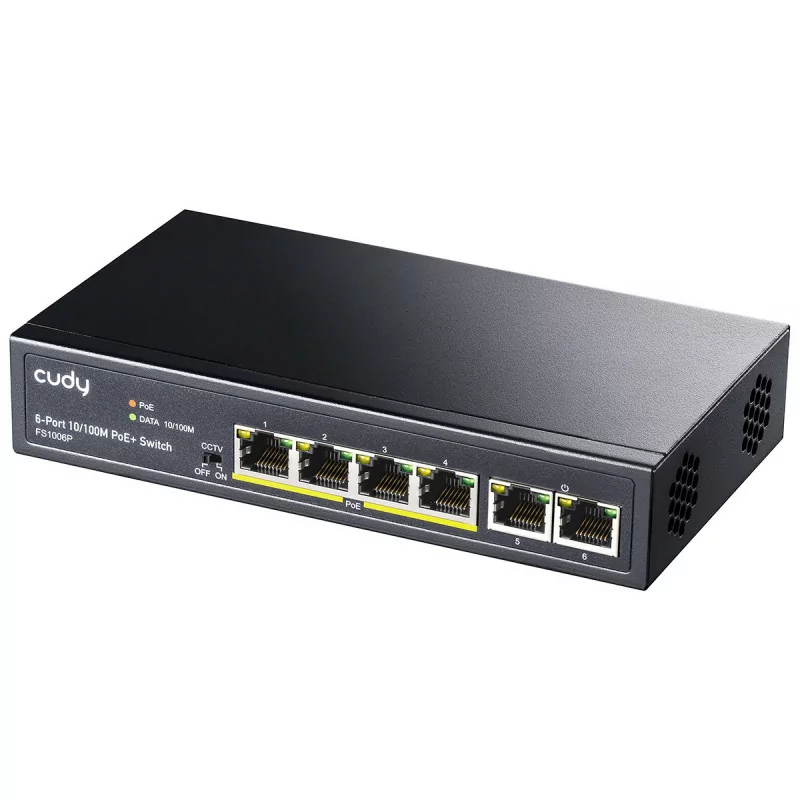

-Interface: 6x 10/100Mbps RJ45 Ports

-Key function: CCTV

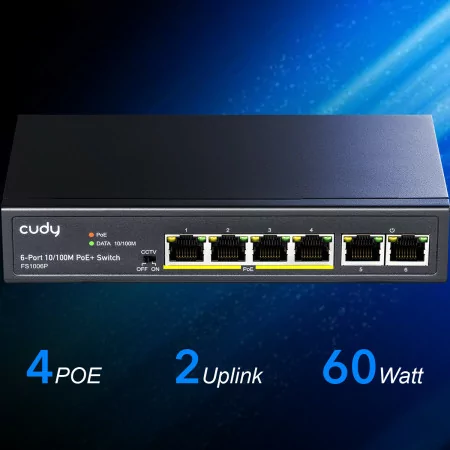

-PoE ports: 1-4

-Total PoE: 60W

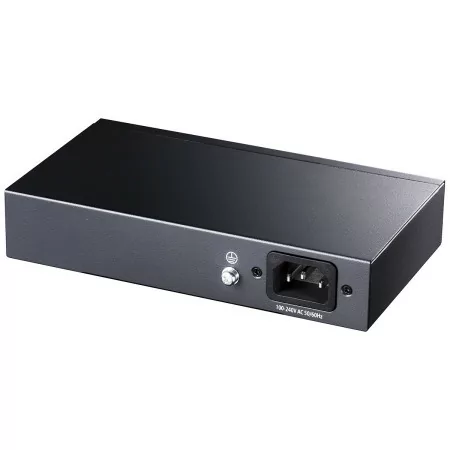

-Power supply: 65W

-Maximum PoE output per port: 32W

-Indicators: PWR, LNK/ACT, PoE

- Means of network:

-10BASE-T: Category 3, 4, 5 UTP cable(≤100m)

-100BASE-TX: UTP cable category 5, 5e(≤100m)

-MAC Address: 2K, Auto Study, Auto Updates

-Jumbo structure: 1528K Bytes

- Packet buffer: 768K bit

-Transfer mode: Store-and-forward

-Package sending rate: 0.89Mpps

-Bandwidth: 1.2Gbps

-Dimensions: 168 x 93 x 32mm

-Weight: <1kg
