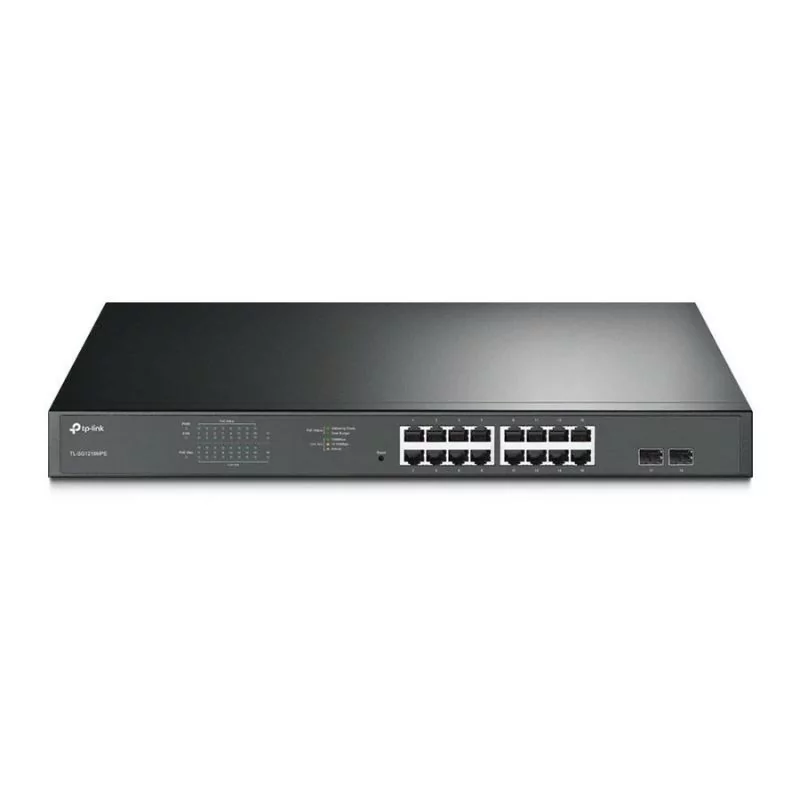

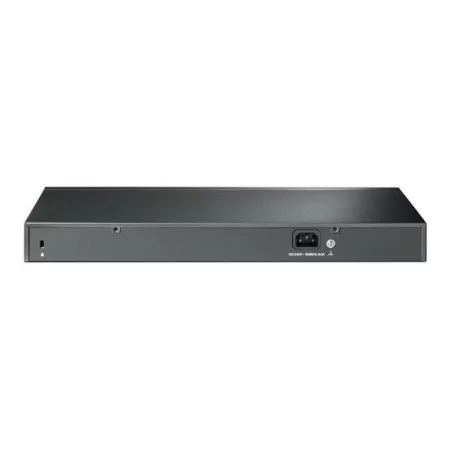

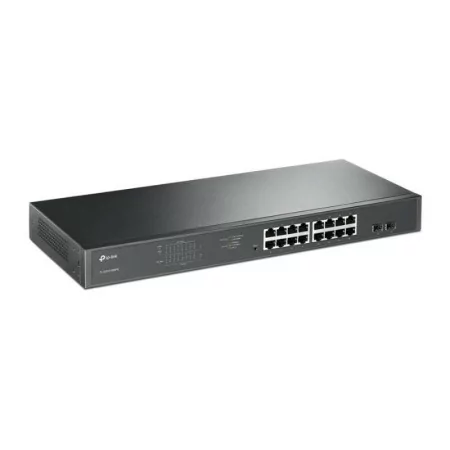

TP-Link Switch 18 Ports - TL-SG1218MPE

IDEAL FOR VIDEO SURVEILLANCE

The TL-SG1218MPE complies with the 802.3af/at PoE+ standard and delivers up to 30W on each PoE port. It has a total of 192W for the 16 PoE ports , making it ideal for video surveillance systems in the network infrastructures of small and medium-sized companies.

INTELLIGENT ENERGY MANAGEMENT

When the total power consumption exceeds 192W , intelligent power management will cut power to the port with the lowest priority profile, thus ensuring power availability to ports with the high priority profile and protecting other POE equipment from overload. power.

EASY MANAGEMENT

The TL-SG1218MPE offers a management system for administrators to observe the behavior of network traffic. Through browser management, the TL-SG1218MPE offers a variety of useful features, including network supervision, traffic prioritization and improved QoS .

• Supported Protocols and Standards:
• IEEE 802.3 (Ethernet)
• IEEE 802.3u (Fast Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3x (Flow Control)
• IEEE 802.3af (PoE)
• IEEE 802.3at (PoE+)
• IEEE 802.1q (VLAN)
• IEEE 802.1p (QoS)
• Interfaces:
• 16x RJ45 Ports 10/100/1000 Mbps (Auto Negotiation/Auto MDI/MDIX)
• 2x Gigabit SFP ports
• Fans: 2
• Security Lock: Yes (supports physical lock mechanism)
• Power Supply: 100-240V AC, 50/60 Hz
• PoE+ Port Standard (RJ45): 802.3at/802.3af
• PoE+ ports: 16
• Power Supply: 192W
• Dimensions: 440 × 180 × 44 mm (Width × Depth × Height)
• Mounting: Rack Mountable

• Switching Capacity: 36 Gbps
• Packet Forwarding Rate: 23.8 Mbps
• MAC Address Table: 8K
• Buffer Memory Packets: 4.1Mbit
• Jumbo Frame: 9 KB (allows the transmission of packets of up to 9 KB)

• 1x TL-SG1218MPE Switch
• 1x Power Cord
• Installation Guide
• Resource CD (possibly with manuals and software)
• Rackmount Mounting Kit
• Rubber Feet (for non-rack-mounted use)

Brand

TP-Link

Reference

TL-SG1218MPE

Stock Online

Low stock

Stock Store

Available soon
