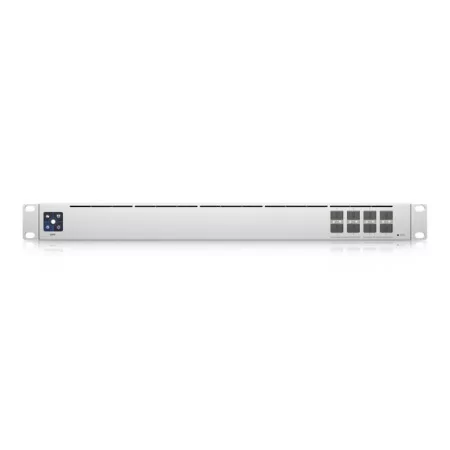

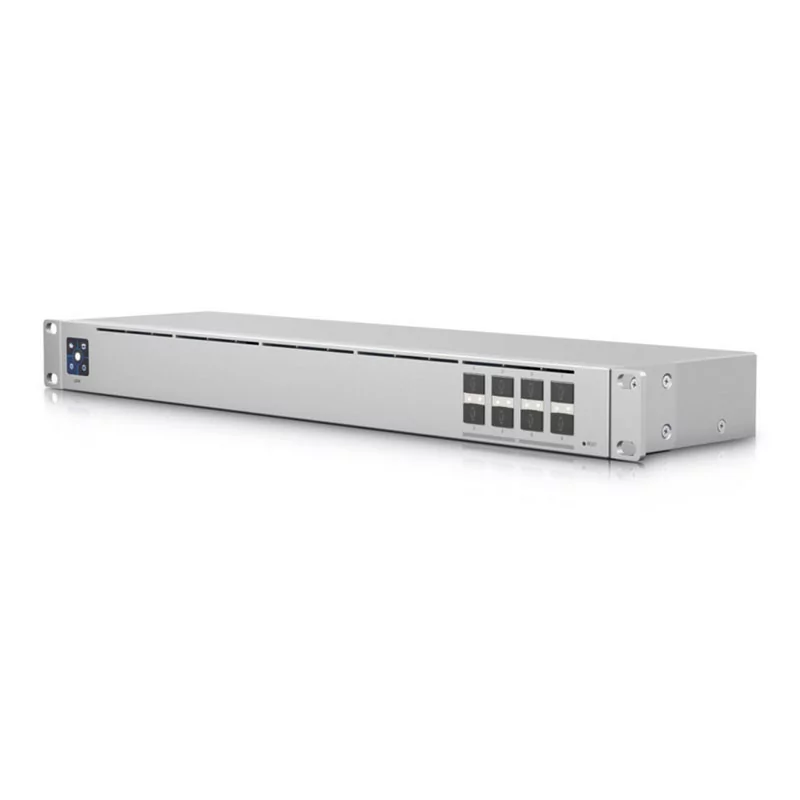

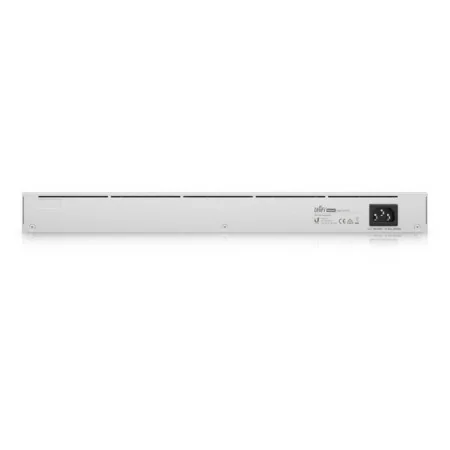

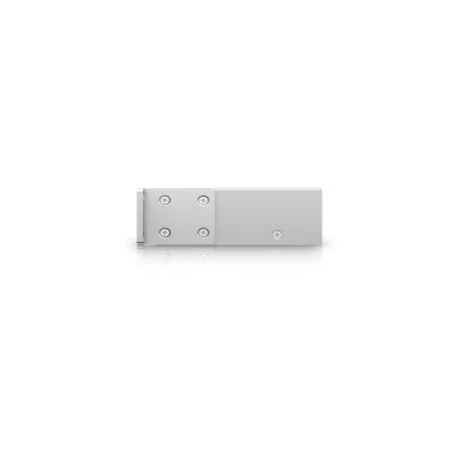

Ubiquiti Switch Aggregation 8 SFP + 10G - USW-AGGREGATION

Switch Aggregation is a fully managed layer 2 switch with (8) 10G SFP+ ports designed to enhance your network's switch capacity and performance by creating high-bandwidth aggregation links.

This rackmountable switch also offers 160 Gbps switching capacity and features a 1.3" LCM touchscreen that concisely displays main system and connection insights.

With its 4.7" depth, this compact fanless switch is easy to mount in a SOHO rack cabinet. This switch can be monitored or configured from anywhere with the powerful and intuitive UniFi Network web app and mobile app.

management features

Switch Type: Managed

Switch layer: L2

connectivity

Basic switching RJ-45 ethernet port types: None

Number of installed SFP+ modules: 8

Network

10G Support: Yes

data transmission

Routing/switching capacity: 160 Gbit/s

Transfer rate: 80 Gbit/s

Forwarding rate: 119.04 Mpps

Design

Shelf mount: Yes

Form factor: 1U

Product Color: Silver

Product body material: Galvanized steel

Dual LED display: System

Regulatory Approvals: CE, FCC, IC

Performance

No fans: yes

Harmonized System Code (HS): 85176990

Power management

Included Power Supply: Yes

AC input voltage: 100 - 240 V

AC input frequency: 50/60 Hz

Power consumption (max): 30W

Put

Power over Ethernet (PoE): No

Environmental conditions

Ambient temperature: -5 - 40 °C

Relative humidity range: 10 - 90%

weights and dimensions

Product Width: 442.4mm

Unit Depth: 120mm

Unit Height: 43.7mm

Product weight: 2.65 kg

Packaging

Cables: AC

Shelf Mount Kit: Yes
