Main Features

The receiver offers a range of features that enhance the viewing experience. With the ability to recall the last channel viewed when switched on, this device makes it easy to switch to your favourite programmes. It supports teletext and DVB audio tracks and subtitles, and is fully multilingual.

Features:

- Software update via satellite (OTA)

- DiSEqC 1.0, 1.1 supported

- Low energy consumption

- On-Screen Display (OSD) function in French and English

- Quick installation of TNT channels available via satellite with TNTSAT

SPECIFICATIONS:

• Demodulation: QPSK, 8PSK
• Input symbol rate: 2 ~ 45 Ms/s SCPC & MCPC signals from Ku-band satellites

TUNER:

• RF Impedance: 75 Ohms +/- 5%
• Input frequency range: 950 – 2150 MHz
• Signal level: -65 ~ -25 dBm
• Input Signal Impedance: 75 Ohms +/- 5%

LNB:

• Voltage: 13/18 V, 400 mA, overload protected
• DiSEqC version: 1.0, 1.1

VIDEO:

• Input rate: 60 Mbit/s max.
• Video resolution: 1920 x 1080p, 1920 x 1080i, 1280 x 720p
• Image Format: Letter Box, Pan & Scan

AUDIO:

• Sampling rate: 32, 44.1, 48 kHz
• Audio Mode: Stereo, Mono

SYSTEM & MEMORY:

• Processor: STIH237@ 650 MHz
• Flash Memory: 4MB SPI + 128MB
• System memory: 256 MB

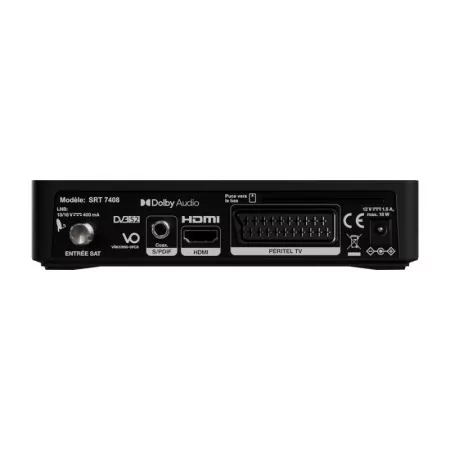

CONNECTIVITY:

• SAT IN
• HDMI
• TV (SCART)
• CVBS
• S/PDIF (coaxial)
• USB 2.0
• Power input (12V)

USB:

• Version: USB 2.0 Hi-Speed
• Connector Type: Type A
• Maximum load: 5 V / 500 mA (max.)

GENERAL DATA:

• Power: External adapter
• Input voltage: 100 – 240 V AC 50/60 Hz
• Output voltage: DC 12V, 1.5A
• Consumption: 18 W max, typical 10 W
• Standby power consumption: max. 1.0 W
• Operating temperature: -5°C ~ +45°C
• Storage temperature: -40°C ~ +70°C
• Dimensions (W × D × H) in mm: 180 x 110 x 43
• Operating Humidity Range: 5~95% RH, non-condensing
• Weight in kg: 0.285 kg
• EAN code: 9120072373060
