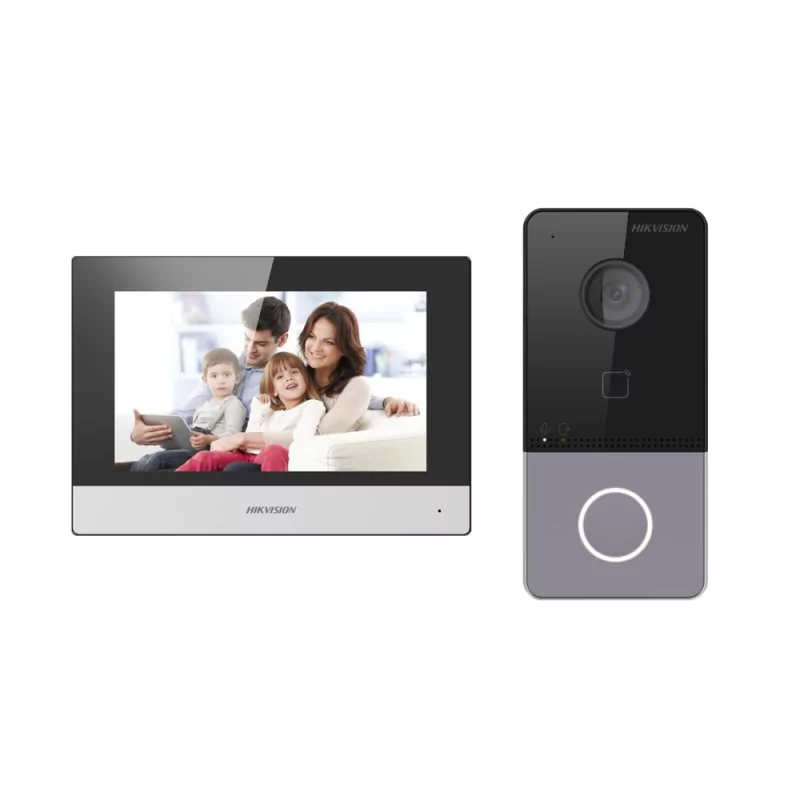

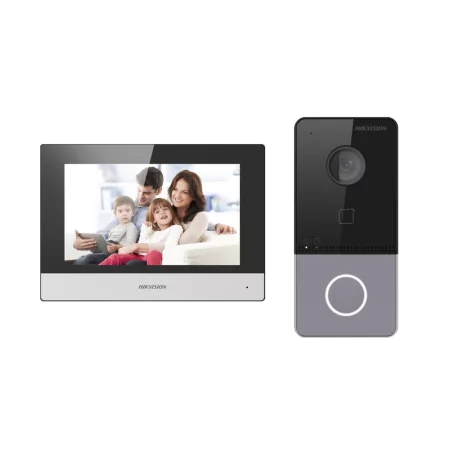

Hikvision DS-KIS603-P(C) Video Door Phone Kit

• Video intercom exterior plate to be installed on a Hikvision surface
• Hikvision Indoor Monitor
• 2 x power supply

• Brand: Hikvision
• Model: DS-KV6113-WPE1(C)

• Operating System: Linux
• Image Sensor: 2 MP 1/3" wide-angle CMOS with IR

• Image Functions: BLC / WDR / DNR
• Viewing Angle:
• Horizontal: 131º
• Vertical: 78º

• Audio: Two-way audio with microphone and speaker
• Access control:
• Door opening with RFID card (MF 13.56 MHz)
• Capacity for up to 2,000 users and 10,000 cards

• Keyboard: Mechanical call button
• Outputs:
• 1 x lock relay
• 1 x RS485

• Appetizer:
• 4 x auxiliary inputs (exit button, feedback, door sensor)
• 1 x tamper
• Remote Access: Web Browser

• Software: iVMS-4200
• Mobile Application: Hik-Connect

• Network Interface:
• Ethernet 10/100 BaseT
• SIP 2.0 protocol
• WiFi (only for connecting to the application via P2P)
• Power: DC 12 V / 1000 mA max.
• PoE IEEE802.3af
