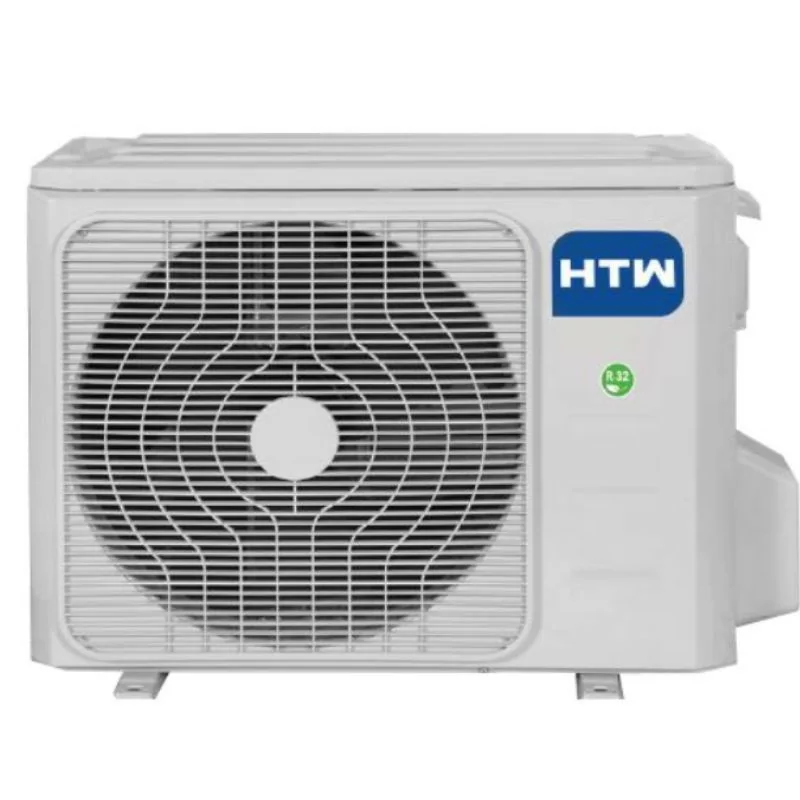

Air Conditioning Multisplit HTW Outdoor Unit - 36,000 BTU - IX41BR32

DC Inverter Compressors and Fans

The Air Conditioner is equipped with DC Inverter technology, the compressors and fans dynamically adjust their speed to optimize energy efficiency and maintain a more comfortable environment.

Standby 1W

In standby mode, power consumption is minimal, just 1W , ensuring energy efficiency even when the system is not in active use.

Anti-oxidation housing

The robust conditioner housing has an anti-oxidation coating, protecting the equipment against the corrosive effects of humidity and extending its useful life.

Greater efficiency

With advanced design and technology, it offers greater energy efficiency , resulting in lower energy consumption and reduced operating costs.

Number of fan speeds

It offers multiple ventilation speed options to suit individual preferences and the air conditioning needs of different spaces.

Consumption and space savings

In addition to saving energy , it helps to optimize installation space , offering an efficient and economical solution for air conditioning.

Specifications

V,F,Hz: 220–240V (1 Phase ~ 50Hz)

Connectable Units: 4

Capacity (kW): 10.5 (6.2~10.5)

Capacity (Btu/h): 36,000 (21,000~36,000)

Consumption (W): 3,280 (2,150~3,520)

SEER: 6.2

Energy Rating (Cold): A++

Capacity (kW): 10.5 (7.0~11.1)

Capacity (Btu/h): 36,000 (24,000~38,000)

Consumption (W): 2,630 (2,880~3,360)

SCOP: 3.8

Energy Rating (Heat): A

Sound Power (dB(A)): 67

Sound Pressure (dB(A)): 63

Air Flow (m3/h): 4,000

Operating Temperature (ºC): -15~50 / -15~24

Refrigerant Type/Charge: R32/Kg 2.1

Additional Load (g/m): 12

Net Dimensions (An×H×Dr) (mm): 946x810x410

Gross Dimensions (An×Al×Pr) (mm): 1,090×875×500

Net Weight (Kg): 68.8

Liquid – Gas Pulg.: 1/4”-3/8”x3 | 1/4”-1/2”x1

Max length (m): 80

Max length (1 interior) (m): 35

Max. Difference (Inside/Outside) (m): 15

Max. Difference (Between Int.) (m): 10

Electrical Connections - Power (mm): 2x4+T

Electrical Connections - Interconnection (mm): 3x2.5+T

EAN code: 8435483814684
