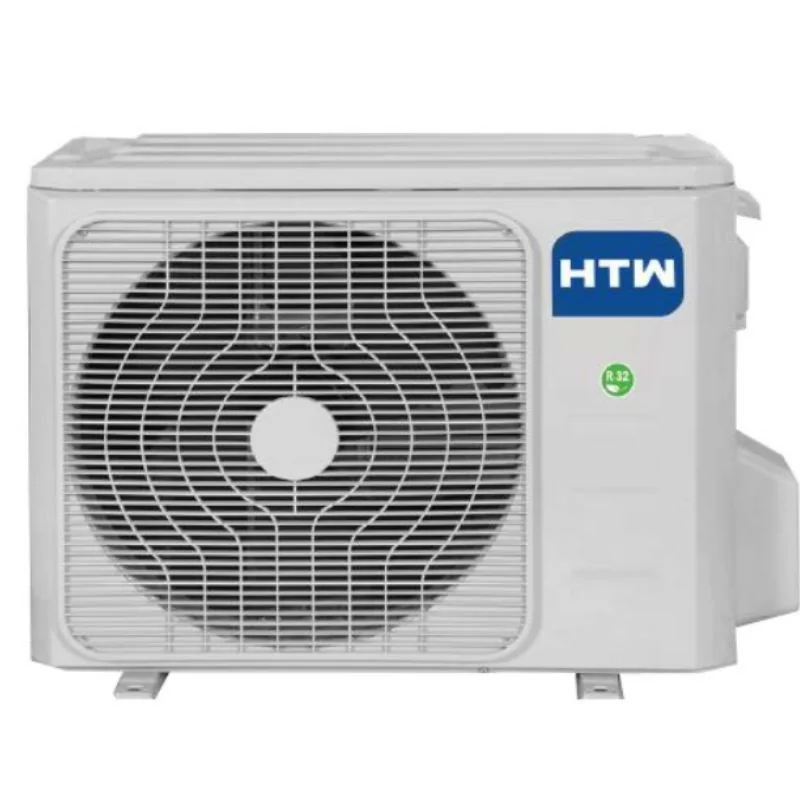

Air Conditioning Outdoor Unit 2X1 Multisplit HTW - 14,000 BTU - IX41BR32

Golden Fin Protection

This feature offers a special anti-corrosion coating, knownthe Air Conditioning Outdoor as Golden Fin , which protects outdoor units against damage caused by exposure to air and moisture, thus extending the life of the equipment.

Anti-oxidation housing

The structure of the air conditioning outdoor unit is constructed from oxidation- resistant materials , providing additional protection against the corrosive effects of environmental factors such as humidity and atmospheric pollutants.

Greater efficiency

This system is designed to operate with significantly greater energy efficiency compared to traditional systems, resulting in lower energy consumption and reduced operating costs .

Connectable indoor units

The indoor units can be easily connected together, offering flexibility in installation and allowing the system to be adapted according to the specific needs of the space.

DC Inverter Compressor and Fans

This system uses a compressor and direct current fans (DC Inverter) , which are capable of dynamically adjusting their operating speed as needed. This results in more efficient operation, greater comfort and energy savings.

Specifications

kW capacity: 4.1 (1.8~4.8)

Btu/h capacity: 14,000 (5,000~17,000)

Consumption W: 1,270 (115~1,672)

SEER: 5.6

Cold energy rating: A+

kW capacity: 4.4 (1.5~5.0)

Btu/h capacity: 15,000 (5,200~17,000)

Consumption W: 1,185 (253~1,592)

SCOP: 3.8

Energy rating: A

Sound power: 65 dB(A)

Sound pressure: 56 dB(A)

Air flow: 2100 m3/h

Operating temperature: 15~50 / -15~24 ºC

Refrigerant Type/Charge: 1.1 R32/Kg

Additional load >7.5: 12 g/m

Outdoor unit:

Net dimensions (W×H×D): 805x554x333 mm

Gross dimensions (W×H×D): 915x615x370 mm

Net weight: 31.6 kg

Cooling tube

Liquid - Gas: 1/4”-3/8”x2 In.

Maximum length: 40 m

Comp. max. (1In): 25 m

Unequal. max. (inside/outside): 15 m

Unequal. max. (between int.): 10 m

Electrical connections

Feed: 2x2.5+T mm

Interconnect: 3x2.5+T mm
