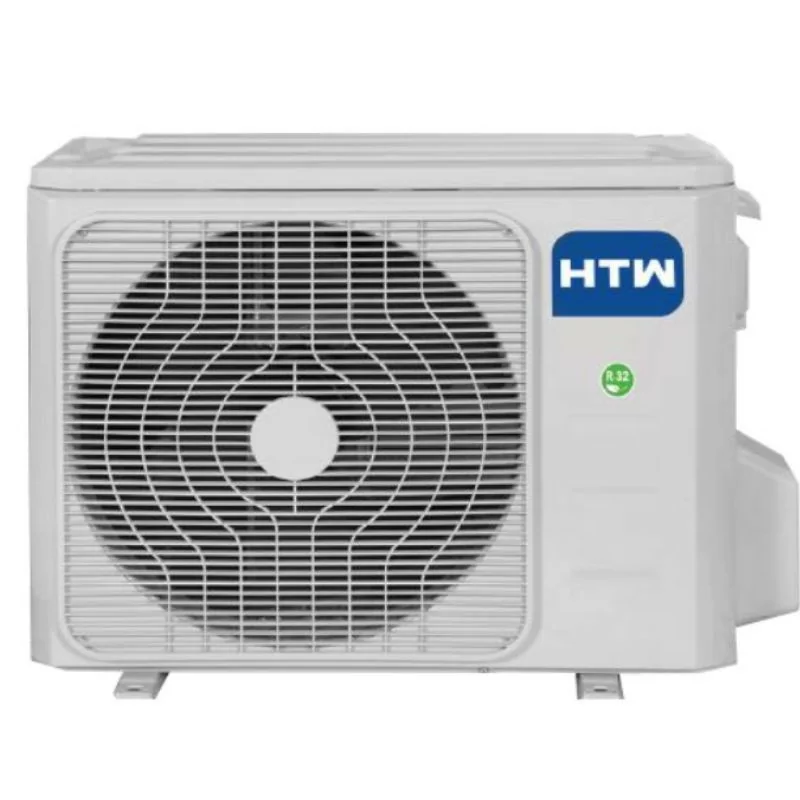

Air Conditioning Multisplit HTW Outdoor Unit - 42,000 BTU - IX41BR32

Golden Fin Protection

This feature offers a special anti-corrosion coating, known as Golden Fin , which protects outdoor units against damage caused by exposure to air and moisture, thus extending the life of the equipment.

Anti-oxidation housing

The structure of the air conditioning outdoor unit is constructed from oxidation- resistant materials , providing additional protection against the corrosive effects of environmental factors such as humidity and atmospheric pollutants.

Greater efficiency

This system is designed to operate with significantly greater energy efficiency compared to traditional systems, resulting in lower energy consumption and reduced operating costs .

Connectable indoor units

The indoor units can be easily connected together, offering flexibility in installation and allowing the system to be adapted according to the specific needs of the space.

DC Inverter Compressor and Fans

This system uses a compressor and direct current fans (DC Inverter) , which are capable of dynamically adjusting their operating speed as needed. This results in more efficient operation, greater comfort and energy savings.

Characteristics

220-240V (1 Phase ~ 50Hz)

kW capacity: 12.3 (8.2~11.7)

Btu/h capacity: 42,000 (10,300~42,000)

Consumption W: 3,810 (280~4,650)

SEER: 6.1

Cold energy classification: A++

kW capacity: 12.3 (8.2~11.7)

Btu/h capacity: 42,000 (11,800~42,000)

W Consumption: 3,300 (650~3,800)

SCOP: 3.5

Energy rating: A

Sound power: 69 dB(A)

Sound pressure: 64 dB(A)

Air flow: 3850 m3/h

Operating temperature: 15~50 / -15~24 ºC

Refrigerant Type/Charge: 2.9 R32/Kg

Additional load >7.5: 12 g/m

Net dimensions (W×H×D): 946x810x410 mm

Gross dimensions (W×H×D): 1,090×885×500 mm

Net weight: 74.1 kg

Liquid - Gas: 1/4"-3/8"x4, 1/4"-1/2"x1 In.

Maximum length: 80 m

Comp. max. (1In): 35 m

Unequal. max. (inside/outside): 15 m

Unequal. max. (between int.): 10 m

Feed: 2x4+T mm

Interconnect: 3x2.5+T mm
