USB READER:

Playback formats: WAV and MP3

MP3 Recording

USB port for connecting USB flash drives or connecting to PC as a Plug and Play audio card on Windows and Mac

Supports flash drives up to 128 GB

TICKETS:

8 balanced XLR microphones, 600 Ω 2 mV (LED peak, 1 kHz, 20 mV RMS)

8 unbalanced lines, 6.3 mm jack, 47,000 Ω 45 mV (LED peak, 1 kHz, 180 mV RMS)

2 balanced returns, 2 x 6.3 mm connector, 47,000 Ω 300 mV RMS

DEPARTURES:

1 stereo main (2 x XLR or 2 x 6.3mm), 5 V RMS

1 x stereo line, 2 x RCA, 5V RMS

1 post-fader send, 6.3 mm jack

5V RMS stereo headphones, 6.3mm jack

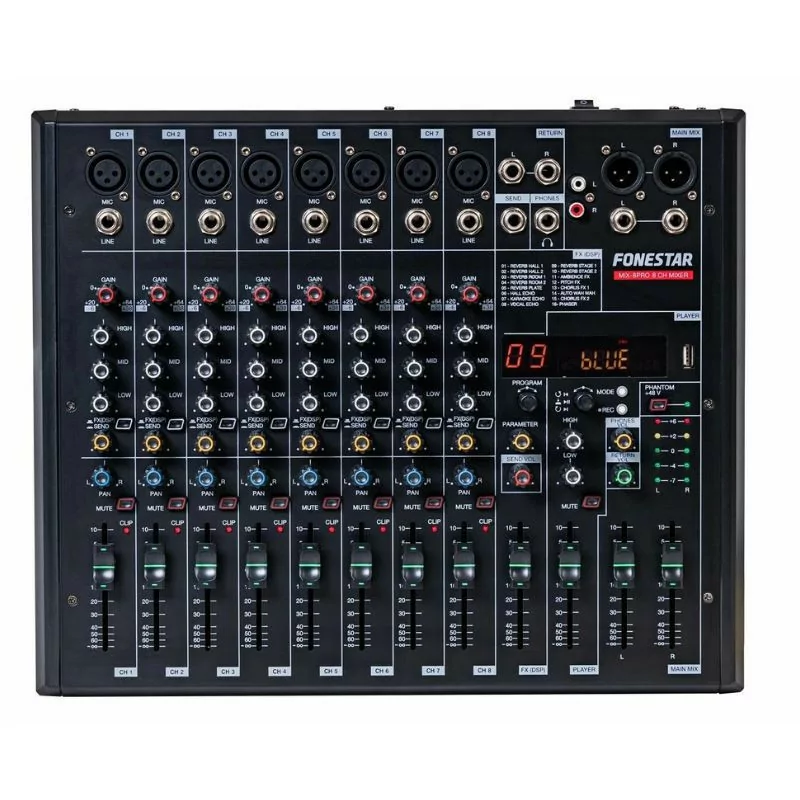

CONTROLS:

Mic/Line: Low Roll Filter (18 dB/octave, 75 Hz), Gain, Bass (±15 dB, 80 Hz), Mid (±15 dB, 2500 Hz), Treble (±15 dB, 12,000 Hz), Aux /EFX send, pan, mute and volume slider

USB Recorder/Player: mode, play/pause/record, song forward/rewind, bass (±15 dB, 80 Hz), treble (±15 dB, 12,000 Hz) and volume slider

Main: volume slider

Phones: volume control

Post-Fader Aux Send: volume control

Aux Returns: volume control

Effects DSP processor: Effects selection, repeat and volume slider

FUNCTIONS:

faders per channel

3-band EQ on channels 1 to 8

2-band EQ on USB recorder/player

Light indicator for signal excess and main output level

GHOST:

48V, selectable

TO RESPOND:

20-20,000 Hz

DISTORTION:

Harmonic: 0.07%

SIGNAL/NOISE RATIO:

65dB

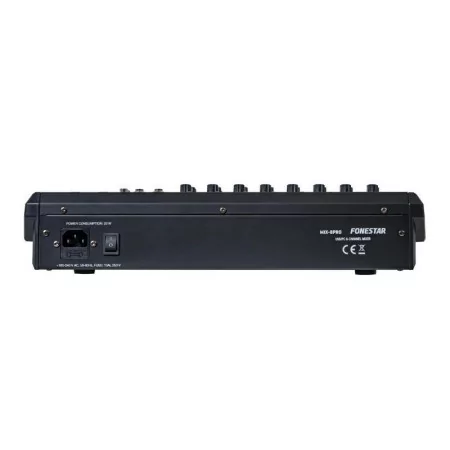

FEEDING:

100-240V AC, 20W maximum

MEASUREMENTS:

390 x 85 x 320 mm deep

WEIGHT:

3.8 kg

OPTIONAL:

SM-8PRO: 19" rackmount brackets
