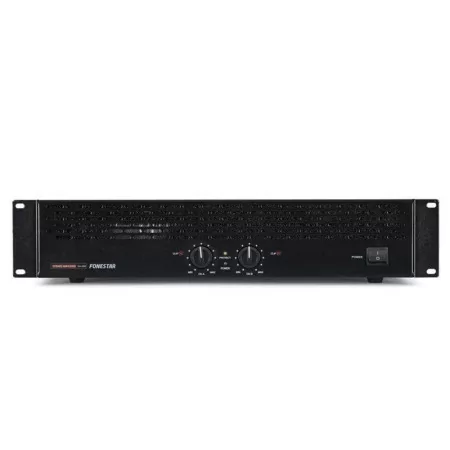

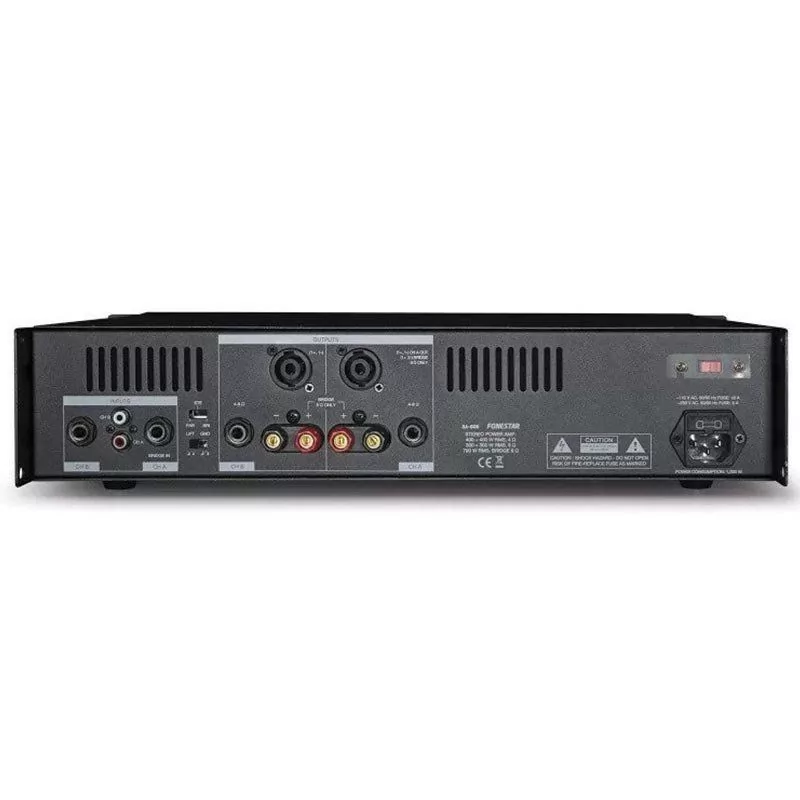

Fonestar Power Amplifier SA-606

Professional stereo power stage.
STEREO POWER

Stereo and parallel mode:

400 + 400 W RMS at 4 Ω
300 + 300 W RMS at 8 Ω
Bridge mode: 700 W RMS at 8 Ω
FUNCTIONS
Light indicators for connection, protection and signal peak
PROTECTIONS

Temperature, short circuit and overload.
Forced ventilation.
CONTROLS

Volume per channel.
Parallel / stereo / bridge mode selector.
Ground disconnection GND lift.
APPETIZER

2 unbalanced auxiliary lines, jack 6'3 mm and RCA, 20,000 Ω 1'3 V
ANSWER

10-50,000 Hz
DISTORTION

Harmonica: <0'05%
DAMPING FACTOR

> 150
SIGNAL / NOISE RATIO

> 90 dB
DIAPHONY

> 70 dB
RATE OF CHANGE

30 V / µs
OUTPUTS

Loudspeakers: 4-8 Ω stereo, 6'3 mm mono jack, screw terminals and bananas or speaker connector.
8 Ω mono bridge, screw terminals and bananas.
FOOD

230/115 V AC, 1,000 W maximum
MEASURES

483 x 89 x 350 mm depth
Rack 2 U 19 "
WEIGHT

12 kg
