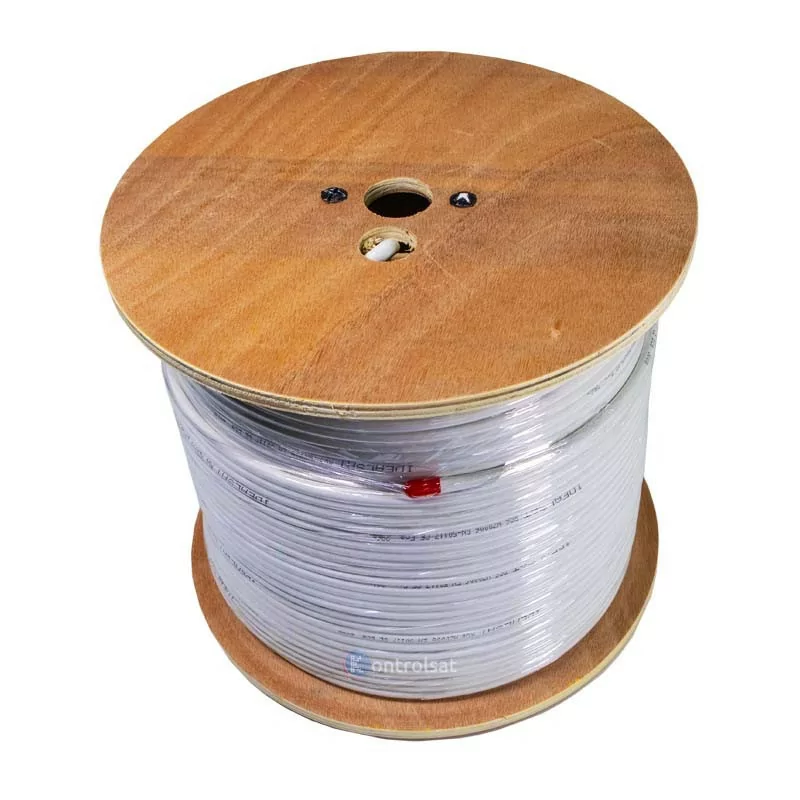

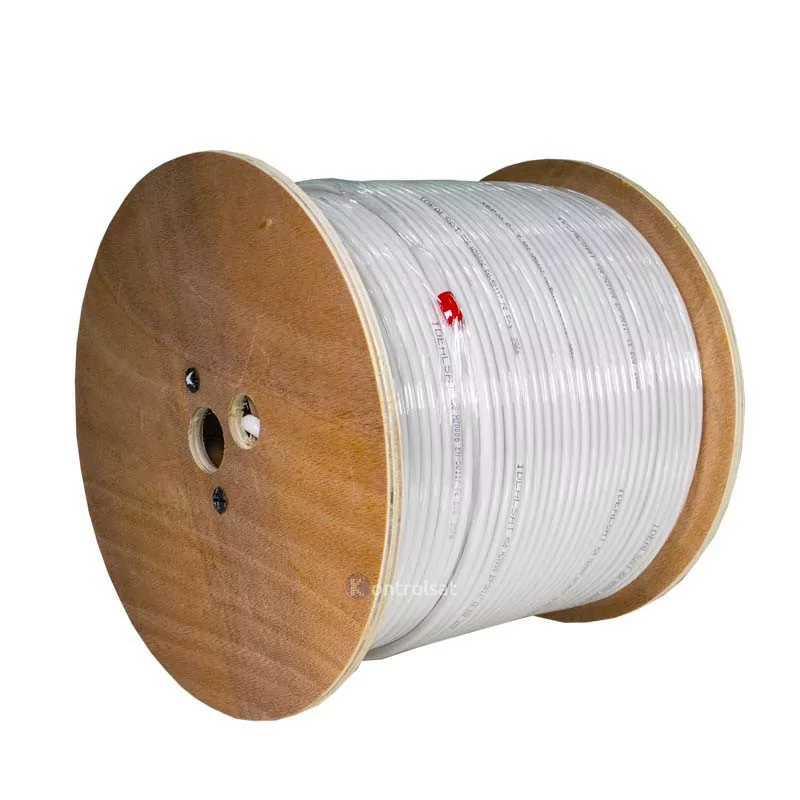

COAXIAL CABLE RG6 White - 300M- IDEALSAT

The RG6 White Coaxial Cable HZ0006 is 300m long, ideal for indoor and outdoor use.

You can see other models here!

TECHNICAL SPECIFICATIONS:

• Internal Conductor: 1.02mm Coppered Steel
• Class A: 3GHz
• Mesh Coverage: AI > 60%
• Outer Coating: PVC UV
• Standard: EN50117
• Mitigation:
• 16.8 - 800mhz
• 28.9 - 2150mhz

Construction Parameters

Inner Conductor Diameter (mm): 1.02 ± 0.02 Coppered Steel - 100%

Dielectric Diameter (mm): 4.55 ± 0.05 PE

Coating sheet: 100% Al

Mesh

Threads: 16x4x0.12mm | Al

Coverage (%): 60

Outer Coating Diameter: (mm) 6.8 ± 0.1 PVC

Impedance: 75 +/- 3 Ohms

Propagation Speed: 0.85

Attenuation 20ºC dB - 100m

Frequency | dB/100mt +/- 3%

50 | 5.0

100 | 6.0

200 | 8.2

800 | 16.8

1000 | 19.0

1250 | 21.4

2150 | 28.9

2250 | 29.6

ROHS Certification: YES

Brand

Idealsat

Reference

HZ0006

Stock Online

Available

Stock Store

Available
