Main Features

• One Conax Embedded card reader
• One Common Interface slot
• HEVC decoding support
• 6000 channels (TV and Radio) programmable
• Two High Speed USB 2.0 Connections
• Ethernet Connection & USB WiFi Support (Ralink RT5370 chip only)
• YouTube videos (feature subject to availability)
• RSS Reader & Weather Forecast Function
• Channel Recording to External Storage Devices (optional)
• Timeshift support
• Channel Recording & Timeshifting Simulteniously (optional)
• Channel switching time less than 1 second
• True-color, User Friendly On-Screen Display (OSD)
• Full Picture In Graphic (PIG) function
• Electronic Program Guide (EPG)
• Subtitle supported
• Teletext supported with VBI insertion
• Parental lock facility by channel and program event
• Program and Channel information transfer from receiver to receiver
• Satellite Blind Scan & Fast Scansupport
• DiSEqC 1.0, 1.1, 1.2 and USALS Compatible
• Full HD (1080p) Output via HDMI
• Exciting games embedded
• Multi-Language support
• Software upgrade support via USB, Network, OTA, RS232
• Power Consumption in Stand-By: <0.5W

Technical Specifications

• Tuner & Demodulation
• Tuner Type: DVB-S / DVB-S2
• Input Connector: F-type, Connector, Female
• Signal Level: -65 to -25 dBm
• LNB Power & Polarization: Vertical: +13V/+14V, Horizontal: +18V/+19V
• Current: Max. 400mA (Overload Protection)
• 22KHz Tone Frequency: 22±1KHz
• DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
• Demodulation: QPSK, 8PSK
• Input Symbol Rate: 2-45 Mbps,
• FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto

• Tuner Type: DVB-T2 / DVB-C
• Frequency Range: 48~862MHz
• RF Input Level: -80dBm to -20dBm
• Antenna power output: DC 5V at max 75mA, Overload protection
• Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended
• Input Symbol Rate: 1.0 ~ 7.0Ms/s
• Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated
• Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
• Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6

• MPEG TS A/V Decoding
• Transport Stream: MPEG-2, H.264, H.265
• Input Rate: Max.120Mbit/s
• Aspect Radio: 4:3, 16:9, Letter Box
• Video Decoding: MPEG-4/H.265 SP@L3 to ASP@L5, AVC, HP@level 4.1, MP@level 4.1
• Video Resolution: 720*480P/I, 720*576P/I, 1280*720p, 1920*1080i, 1920*1080p
• Audio Decoding: MPEG-1/2,AAC-LC,HE-AAC,MP3,Dolby Digital
• Audio Mode: Left / Right / Stereo/ Mono
• Sampling Rate: 32, 44.1 and 48KHz

• System Resources
• Main Processor: 800MHz CPU
• Flash Memory: 16MB
• DDR3 RAM: 256MB

• Power Supply
• Input Voltage: 12VDC
• Power Consumption: 24W Max
• Stand-By Power Consumption: <0.5W

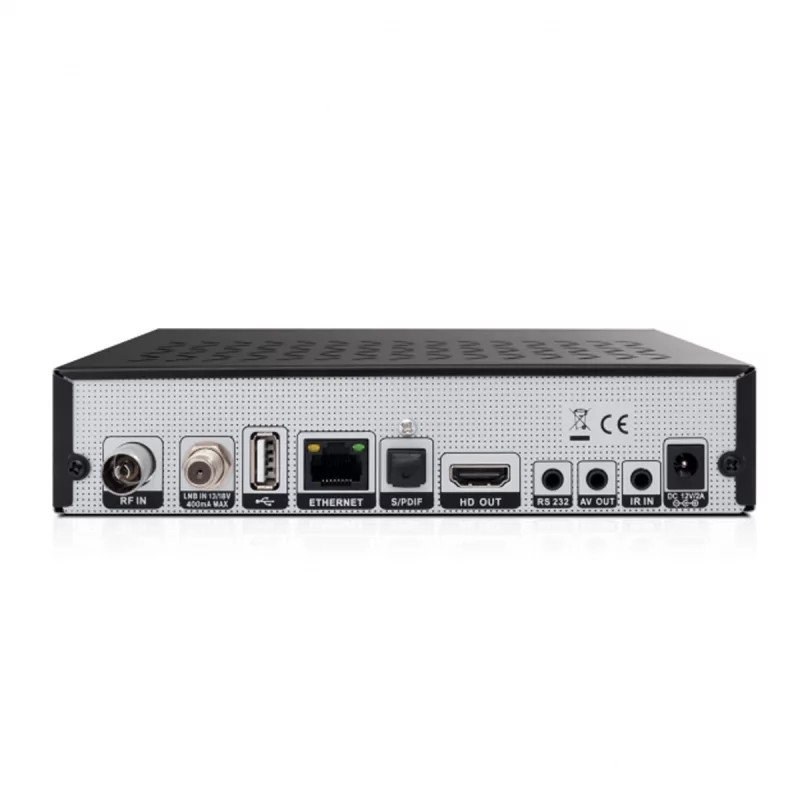

• A/V & Data Input/Output
• RCA: Jack-type, CVBS Video out, L&R Audio out
• RS-232C: Jack-type, Transfer rate 115.2Kbps, 9 pin D-sub Type
• USB: Two USB 2.0 slots
• S/PDIF: Optical
• HDMI: VER1.4, Type A
• Ethernet: 10/100M RJ45
• IR IN: Jack-type, External IR sensor connection

• Physical Specifications
• Size[W*H*D]: 180mm x 43mm x 155mm
• Net Weight: 1.0KG
• Operation Temperature: 0°C~+45°C
• Storage Temperature: -10°C~+70°C
• Storage Humidity: 5%~95% RH (Non-Condensing)

• Package Contents

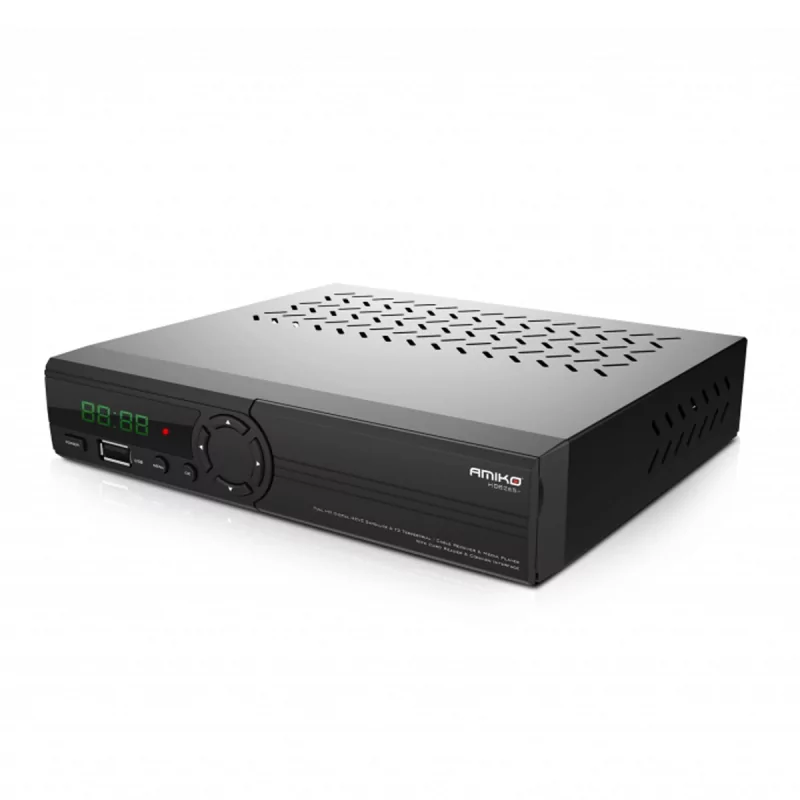

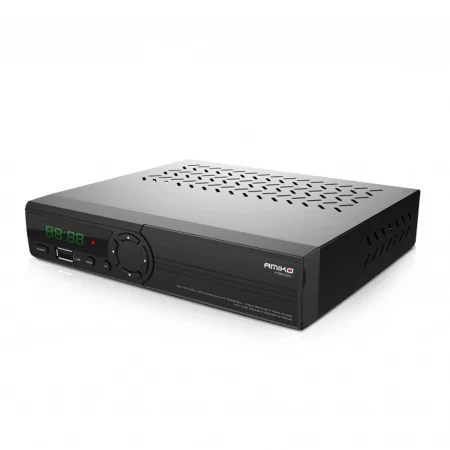

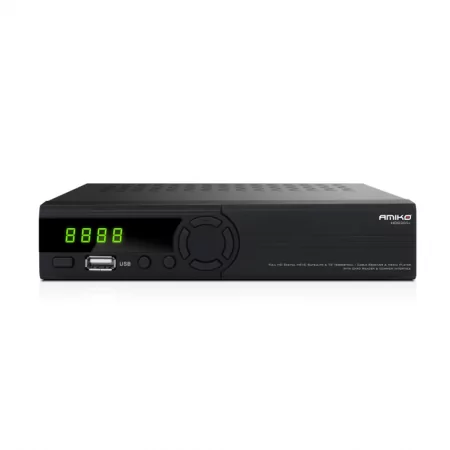

• Sat & Cable/T2 STB Amiko 8265+

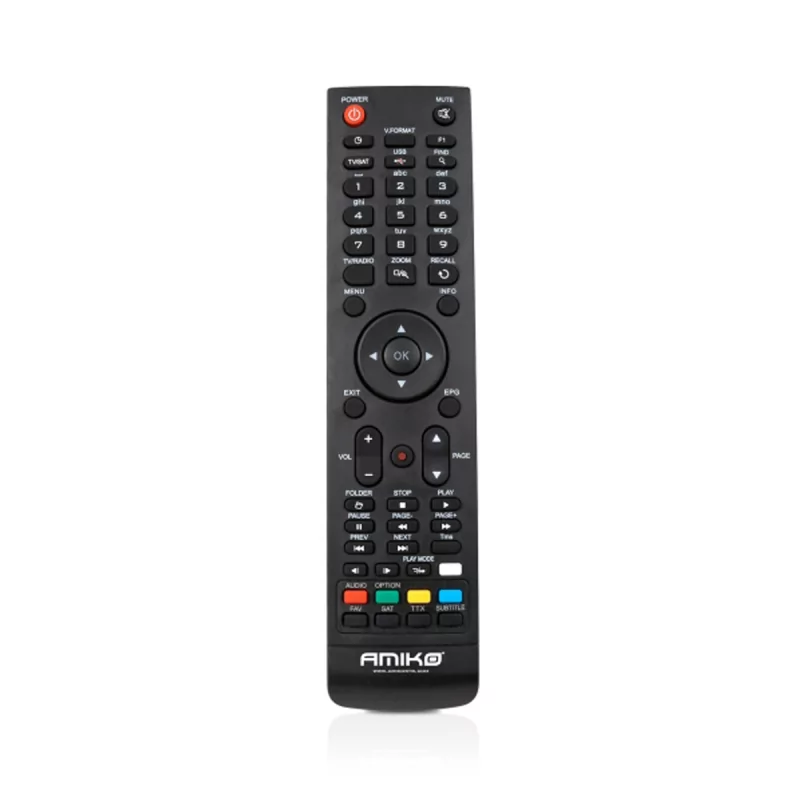

• Remote Control Unit
• 2x AAA Batteries
• HDMI Cable
• Infrared Cable
• Power Adapter
• User Manual
