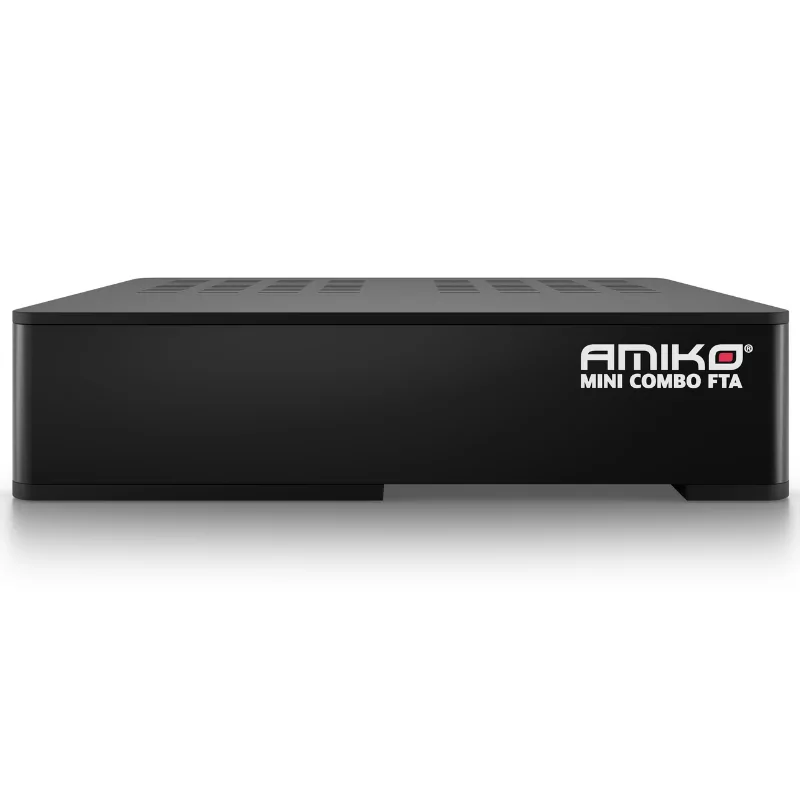

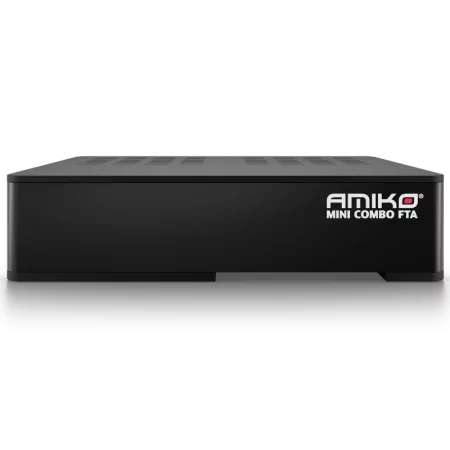

Amiko Mini Combo FTA Specifications:

• Timeshift Support
• Simultaneous Recording and Timeshifting (optional)
• Change channels in less than 1 second
• Colorful and user-friendly OSD (On-Screen Display)
• Full PIG (Picture In Graphic) function
• EPG (Electronic Program Guide) with on-screen information

Subtitle support:

• Teletext with VBI insertion and software emulation
• Parental lock by channel and event
• Transfer of program and channel information between receivers
• Multilingual support
• Standby consumption: < 0.5W

Tuner and Demodulation:

• DVB-S / DVB-S2
• Input connector: F-type, female
• Signal level: -65 to -25 dBm

LNB power and polarization:

• Vertical: +13V / +14V
• Horizontal: +18V / +19V
• Maximum current: 400 mA, with overload protection
• Tone frequency 22KHz: 22 ± 1KHz
• DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
• Demodulation: QPSK, 8PSK
• Input symbol rate: 2–45 Mbps
• FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and automatic
• DVB-T2 / DVB-C
• Frequency range: 48~862 MHz
• RF input level: -80 dBm to -20 dBm
• Antenna power output: DC 5V / 75mA max, with overload protection
• Demodulation: COFDM (1K, 2K, 4K, 8K, 16K, 32K – normal and extended)
• Input Symbol Rate: 1.0 ~ 7.0 Ms/s
• Constellations: QPSK, 16QAM, 64QAM, 256QAM (rotated and unrotated)
• Guard intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
• Code Rates: 1/2, 3/5, 2/3, 3/4, 5/6

System Resources:

• Main processor: Dual Core 333 MHz
• Flash Memory: 8 MB (Serial Flash x1)
• DDR RAM: 1 Gb @ 1333 MHz

MPEG TS A/V Decoding:

• Transport stream: MPEG-2, H.265
• Maximum ingress rate: 120 Mbit/s
• Aspect ratio: 4:3, 16:9, Letterbox

Video Decoding:

• H.265 / HEVC HD
• MPEG-4 / H.264: SP@L3 to ASP@L5, MP@ML, MP@HL, [email protected], [email protected]

Supported video resolutions:

• 720×480p/i
• 720×576p/i
• 1280×720p
• 1920×1080i
• 1920×1080p
• Audio decoding: MPEG-1/2, AAC-LC, HE-AAC, MP3, Dolby Digital Plus
• Audio Mode: Left / Right / Stereo / Mono
• Sampling rate: 32, 44.1 and 48 KHz

Food:

• Input voltage: 12V DC
• Maximum consumption: 18W
• Standby consumption: < 0.5W

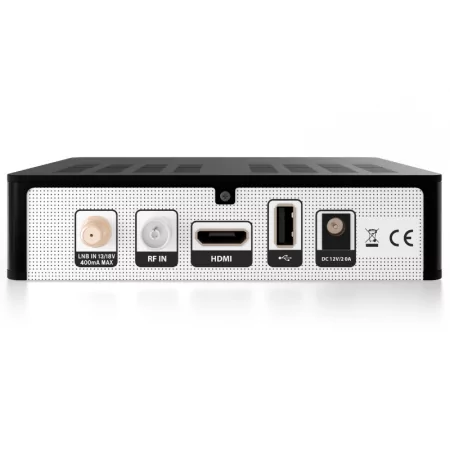

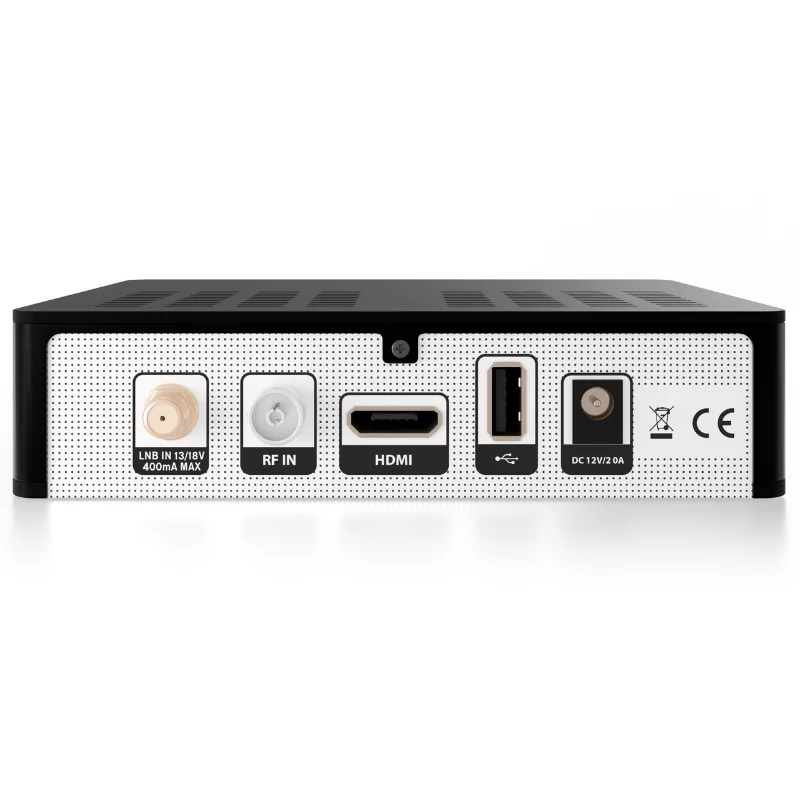

A/V and Data Inputs and Outputs:

• HDMI
• USB: 1 USB 2.0 port

Physical Specifications:

• Dimensions: 144mm × 40mm × 110mm
• Net weight: 0.25 kg
• Operating temperature: 0°C ~ +45°C
• Storage temperature: -10°C ~ +70°C
• Storage Humidity: 5% ~ 95% RH (non-condensing)
