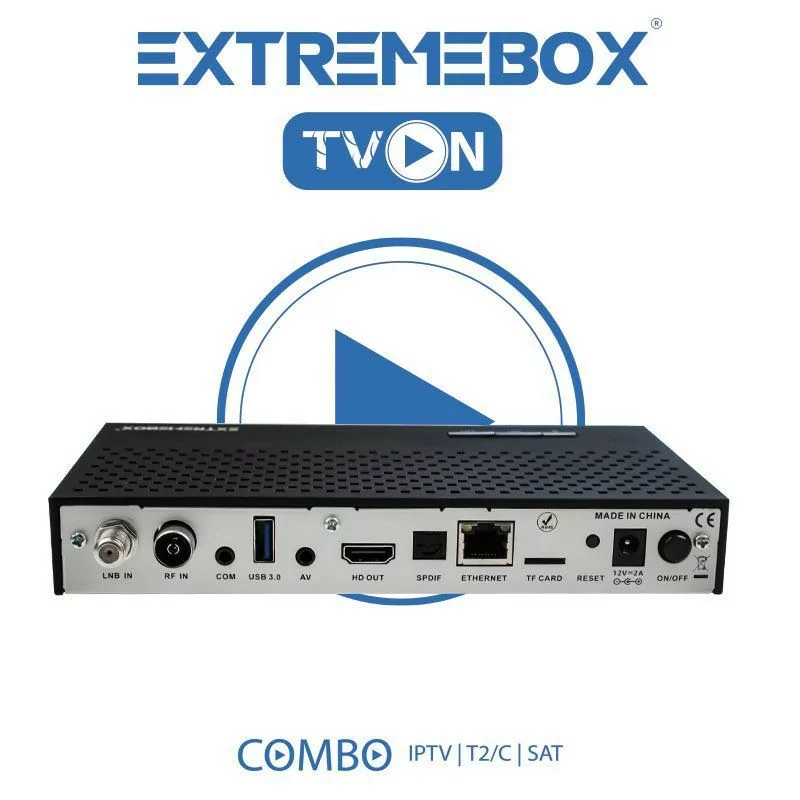

Pack Android Extreme TVON

The new face of modern television arrived with Android TV in Extremebox TVON - Satellite, Cable, Terrestrial and IPTV.

System Resources:

• CPU: ARM Cortex A53, Quad core 64bit, @1.6GHz(15000DMIPS);
• CPU Model: Hi3798MV200M;
• GPU: High-performance multi-core Mali 450;
• Storage: 16GB eMMC
• RAM: 2GB DDR3

Software:

• OS: AndroidTV 8 - Launcher Android Leanback;
• Supports: TVHeadEnd and Live TV Channels;
• App Support: KODI,Hulu, Flicker, Picasa,YouTube 4K,
• Twitter ,Facebook;

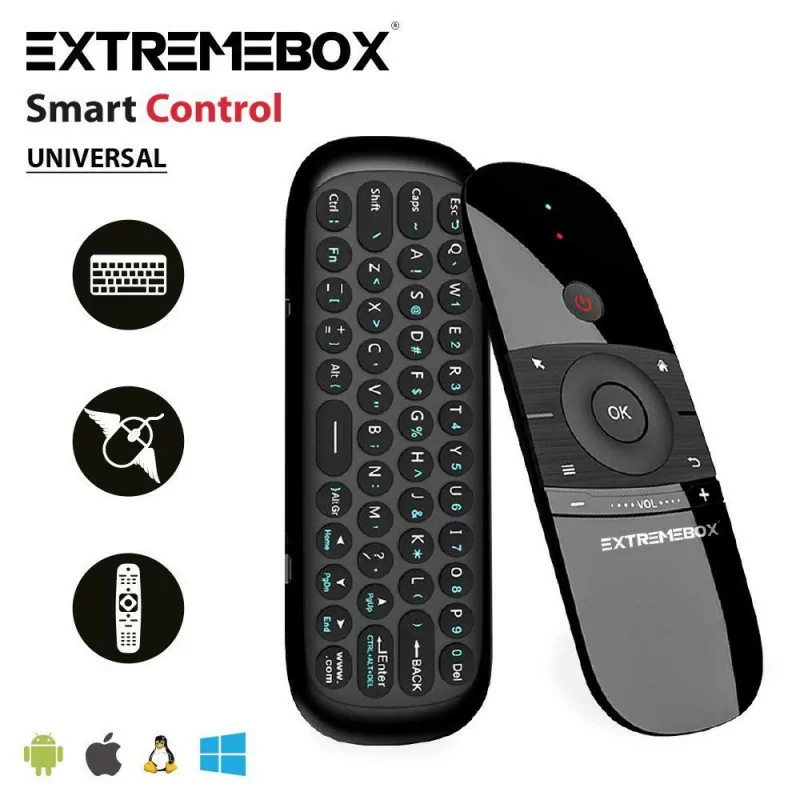

• Mouse/ Keyboard: Extremebox Airmouse Compatible;
• WiFi: 2.4 Ghz;
• Ethernet: 10/100 MB;
• Local Media Playback: Support HDD, U Disk and SD Card;
• MultiScreen: Airplay/Mircast/DLNA and other similar apps;

Tuner 1 (DVB-S2X)

• Input Connector: F-Type Female
• Frequency Range: 950MHz to 2150MHz
• Signal Level: -25 to -70dBm
• LNB Power & Polarisation Vertical: +13.5V ± 0.5V Max 250mA
• Horizontal: +18.5V ± 0.5V Max 250mA
• 22KHz Tone Frequency: 22KHz ± 4KHz, 0.6Vp-p ± 0.2Vp-p
• Diseqc Control: Version 1.0, 1.2, USALS Compatible
• Demodulation: QPSK & 8PSK
• Input Symbol Rate DVB-S: 1 ~ 55Mbps / DVB-S2 : 1 ~ 45Mbps

Tuner 2(DVB-T2/T/C)

• Antenna Input/Output Connector: F-Type Female or IEC Female
• Frequency Range: 52MHz to 866MHz
• Signal Level: -25 dBm to -80 dBm
• IF Frequency Low: 3 ~ 60 MHz
• Mode DVB-T2/T/C: QPSK, 16QAM ~ 256QAM
• Bandwidth: 6 MHz, 7 MHz, 8 MHz, 1.7MHz(Possible to use with Low IF)

MPEG Transport Stream A/V Decoding

• Transport Stream ITU-T H.265/HEVC & H.264, ISO/IEC 13818-2 MPEG-2
• AVS&AVS+,VC1, VP6, VP8, VP9
• Profile Level ITU-T H.265 Main 10 [email protected] high-tier
• MPEG-2 MP@HL
• Input Rate Max. 160Mbit/s (H.265)
• Video Format 4:3, 16:9, Letter Box, Pan&Scan
• Video Resolution 10bit, Up to 3840 x 2160@60fps, HDR 10 Support(Optional)
• Audio Decoding MPEG I&II,MP3,Dolby True HD&Digital Plus,AAC-LC,HE-AAC V1/V2
• Audio Mode Stereo/Mono/Left/Right/Exchange

Power Supply

• Input Voltage: AC 90 ~ 250V, 50/60HZ
• Output Voltage: 12Vdc / 2.0A
• Type: External AC to DC Adaptor
• Power Consumption(Watt) Operation Mode: T.B.D / Stand-by Mode : Under 0.5W

Physical Dimension:

• Size (WXDXH): 195*115*20mm
• Net Weight: 0.8 Kg

Physical Dimension:

• Operating Temperature: 0 ~ 45℃
• Storage Temperature: -10 ~ 70
