Specifications

• Maximum Power: 800W with 80 PLUS BRONZE certificate
• Active PFC (Efficiency>82%)
• Type: Intel ATX 12V V2.31 / EPS 12V V2.92 Compatible with ATX12V V2.2, ATX12V V2.01 etc
• Protections: overvoltage, under voltage, short circuit, overload, over current, over temperature protection

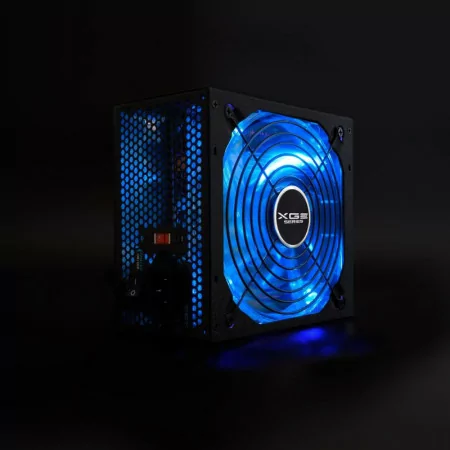

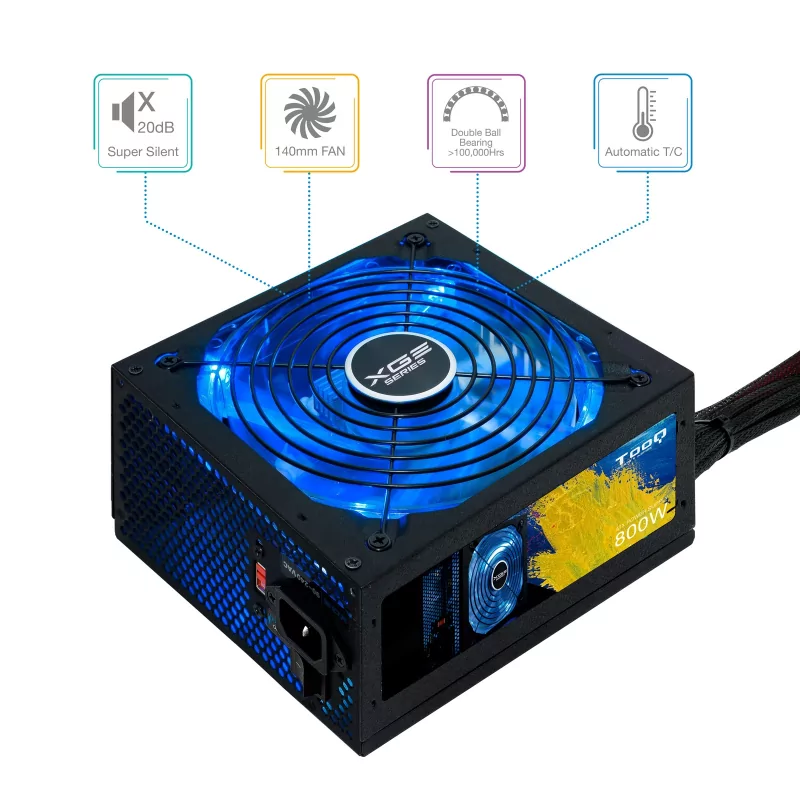

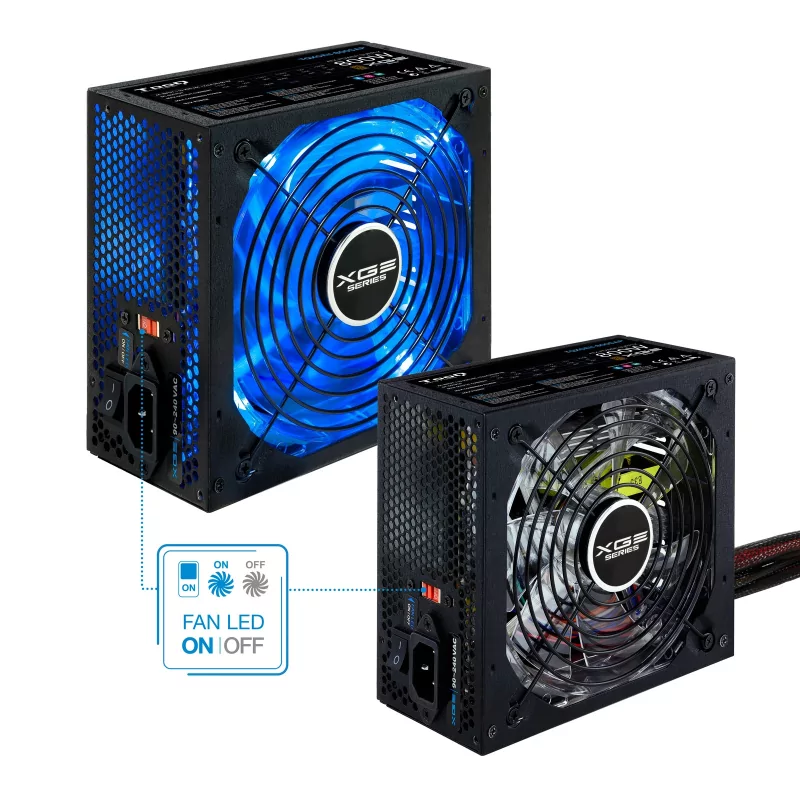

• Super silent 140mm fan with dimmable blue LED light, double ball bearing (MTBF>80,000Hrs, Noise<17dBA) and built-in automatic speed control
• Compatible with AMD/CrossFire and NVIDIA/SLi
• Compatible with cutting-edge multi-core microprocessors
• Extra long cables for tall towers and all cables being wrapped in mesh
• +12V rails: 2X +12V
• Standards: CE / UL / FCC / BSMI / GOST / CCC / KCC / ROHS

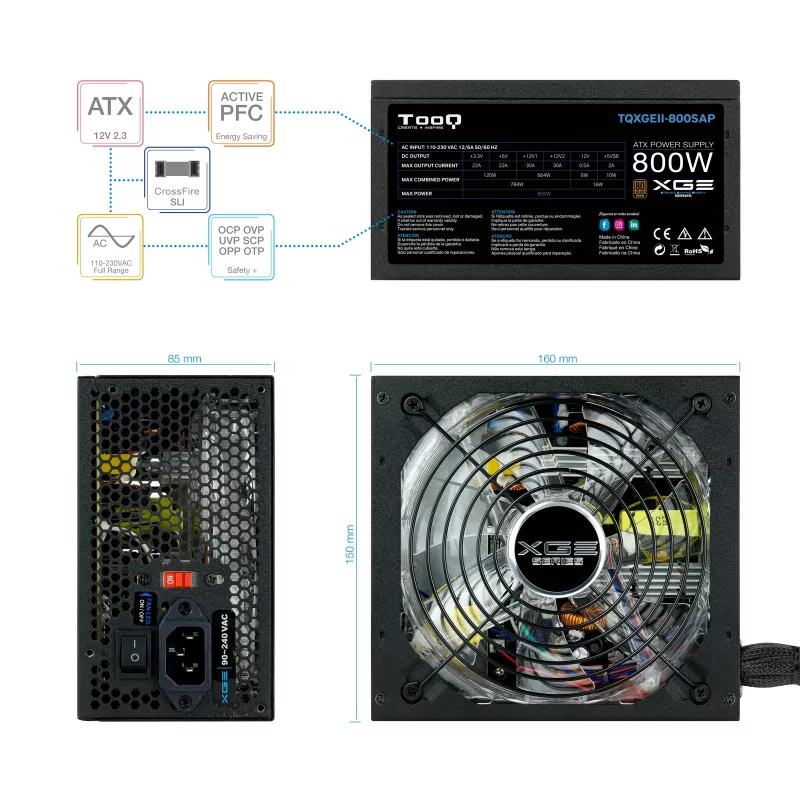

• Measurements: 160 x 150 x 86mm

VOLTAGE TABLE:

• Input voltage: 90-240VAC (Automatic)
• input frequency: 50/60Hz
• +3.3V: 22A / +5V: 22A / +12V1: 30A / +12V2: 30A / -12V: 0.5A /+5VSB: 2A

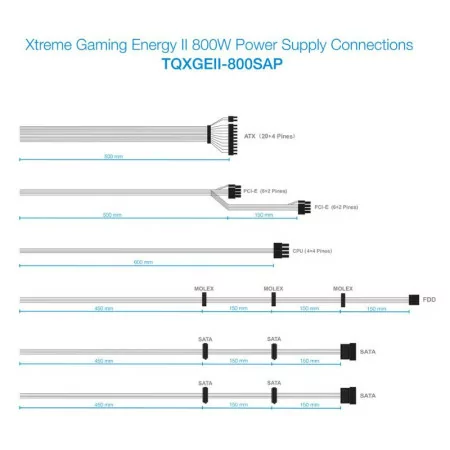

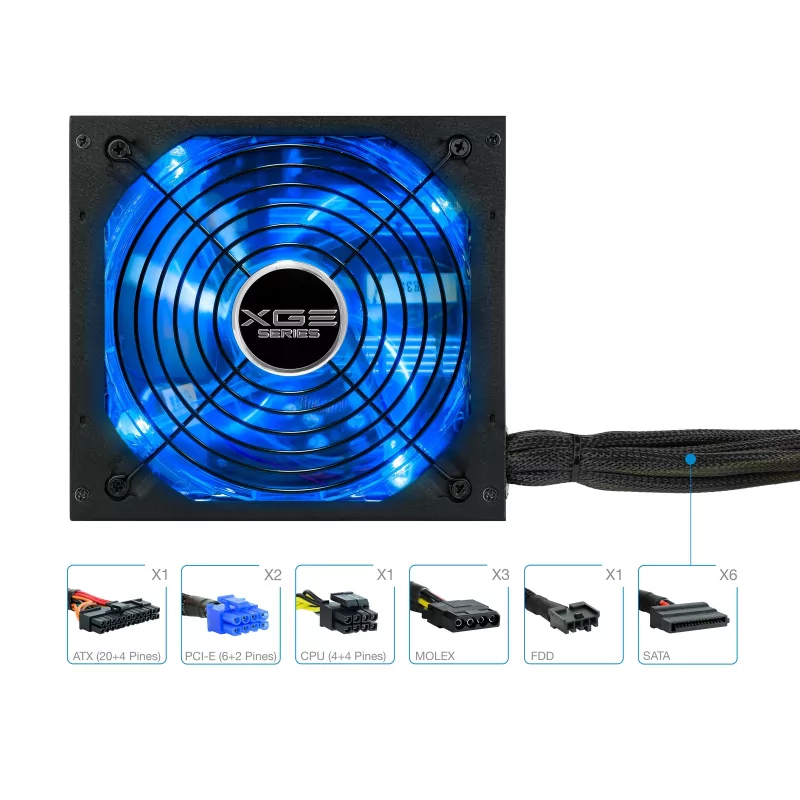

CONNECTORS:

• 1 x ATX 24/20 pin, (500mm) x1
• 1 x EPS/ATX 12V 8-4 pin, (600mm) x1
• 2 x PCI-e 6+2 pins, (500+150mm) x2
• 6 x SATA, (450+150+150+150mm) x2
• 3 x 4 Pins (Peripherals)+1 x 4 Pins (Diskette Reader), (450+150+150+150mm) x1

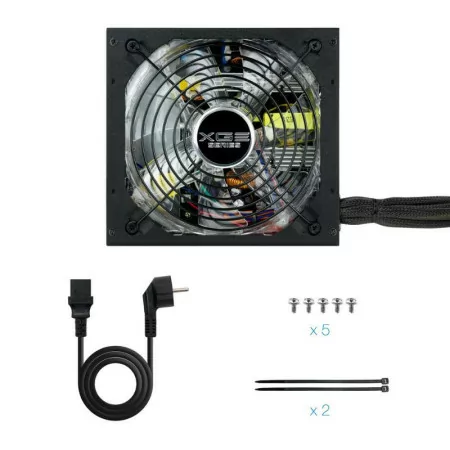

Package content:

• XGE II power supply
• 1.5 m power cable
• Multi-language instruction manual

Brand

TooQ

Reference

TQXGEII-800SAP

Stock Online

Available

Stock Store

Available soon
