Specifications:

• Maximum Power: 525W with 80 PLUS BRONZE certification
• Active PFC (Efficiency>82%)
• Type: Intel ATX 12V V2.31 / EPS 12V V2.92 Compatible with ATX12V V2.2, ATX12V V2.01 etc
• Protections: overvoltage, undervoltage, short circuit, overload, over current, over temperature protection

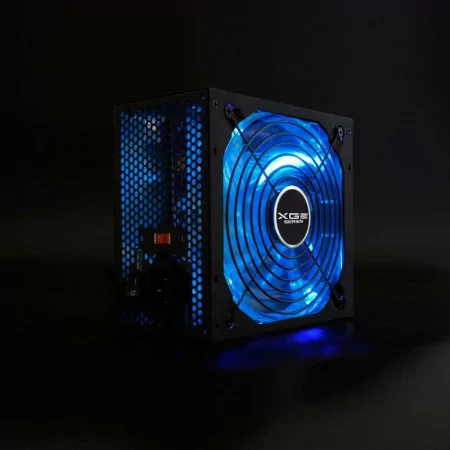

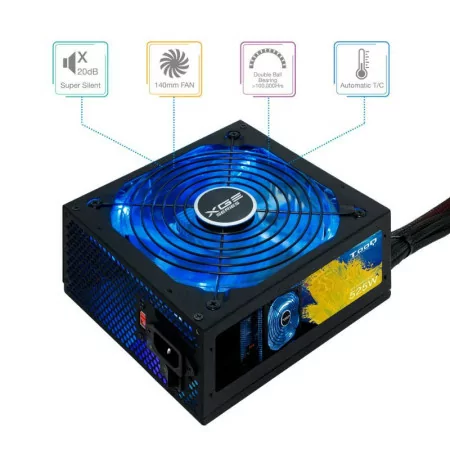

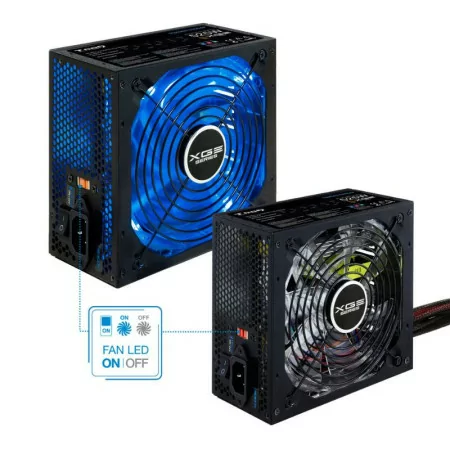

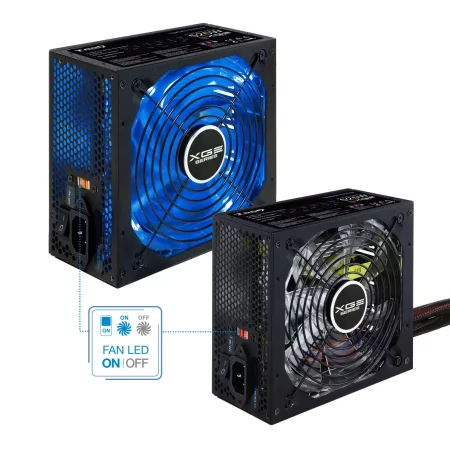

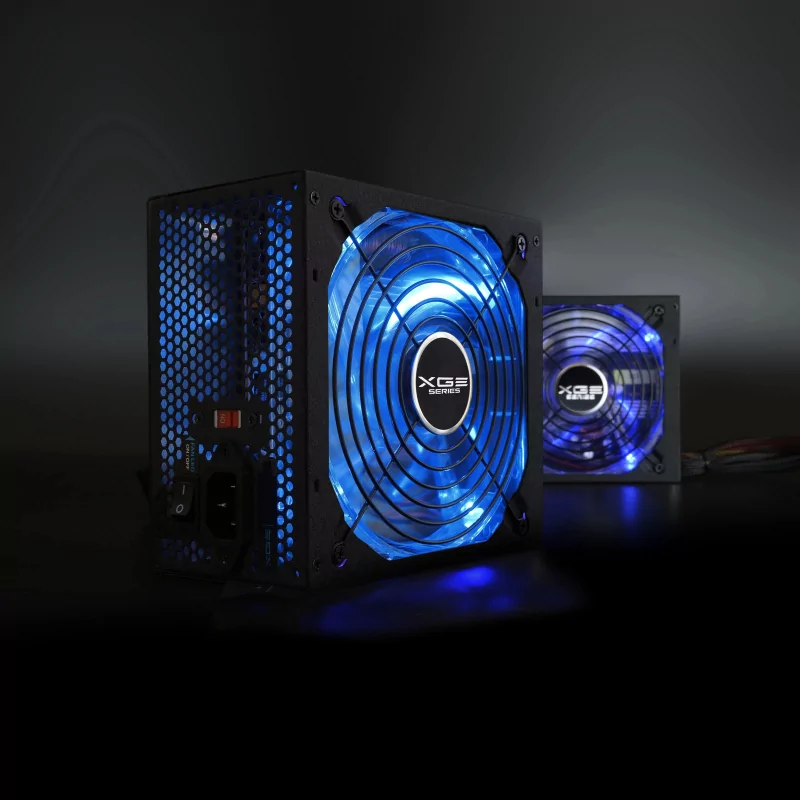

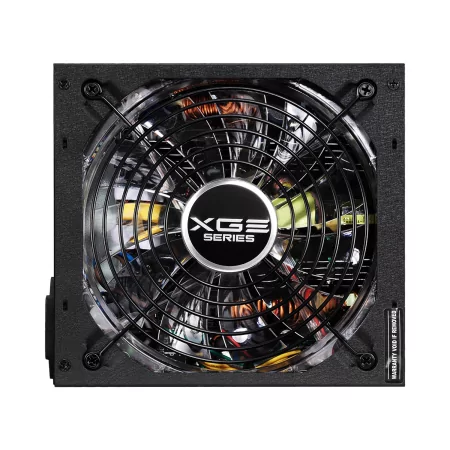

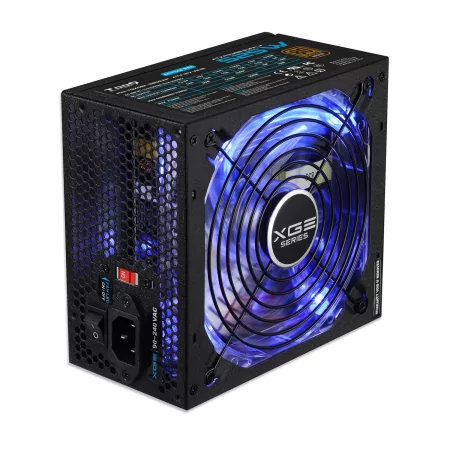

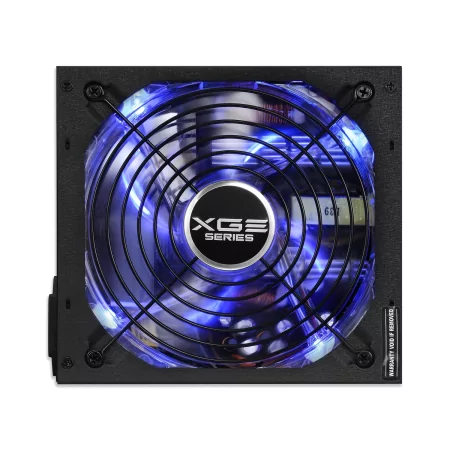

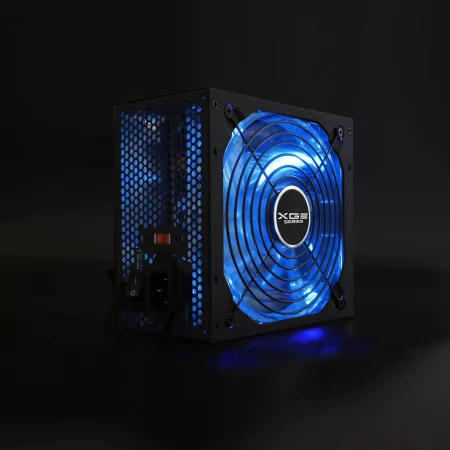

• Super silent 140mm fan with detachable blue LED light, double ball bearing (MTBF>80,000Hrs, Noise<17dBA) and built-in automatic speed control
• Compatible with AMD/CrossFire and NVIDIA/SLi
• Compatible with cutting-edge multi-core microprocessors
• Extra long cables for tall towers and all cables wrapped in mesh
• +12V rails: 2X +12V
• Standards: CE / UL / FCC / BSMI / GOST / CCC / KCC / ROHS

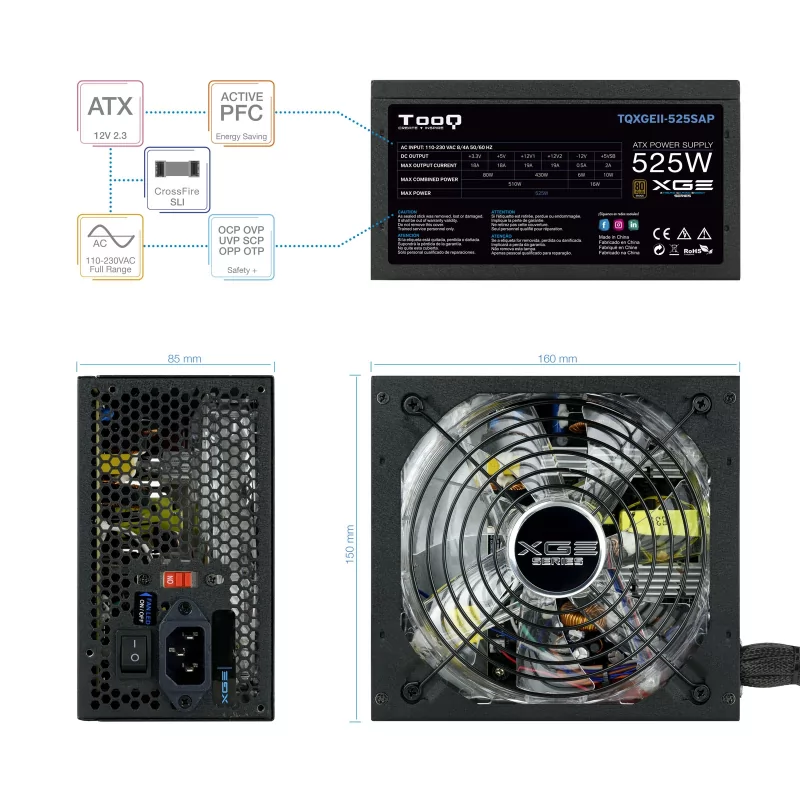

• Measurements: 160 x 150 x 86mm

VOLTAGE TABLE:

• Input Voltage: 90-240VAC (Automatic)
• Input frequency range: 50/60Hz
• +3.3V: 18A / +5V: 18A / +12V1: 19A / +12V2: 19A / -12V: 0.5A /+5VSB: 2A

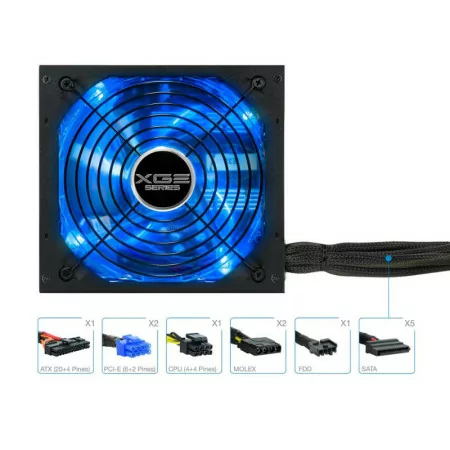

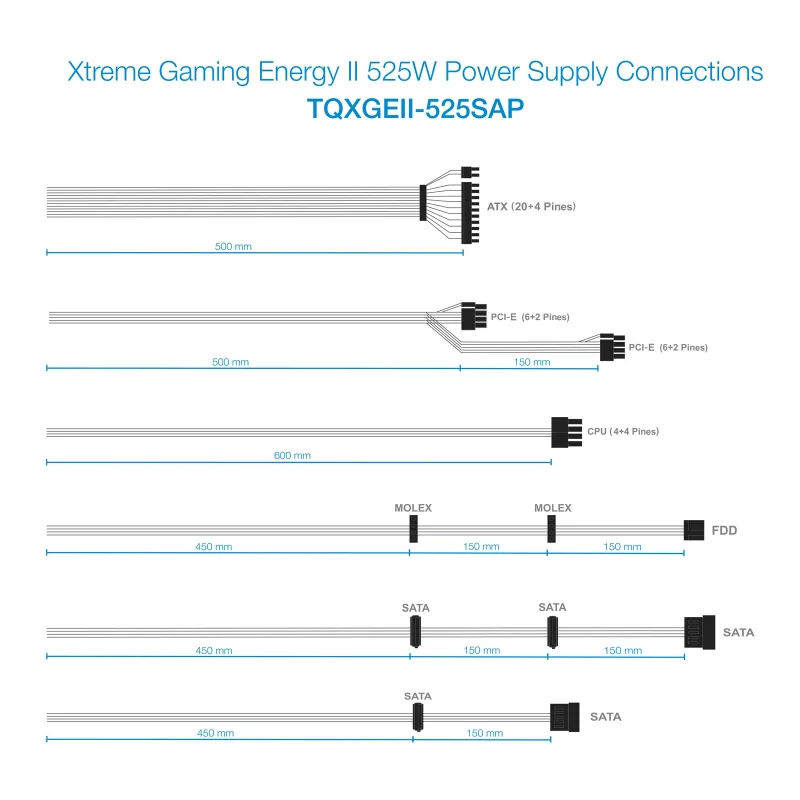

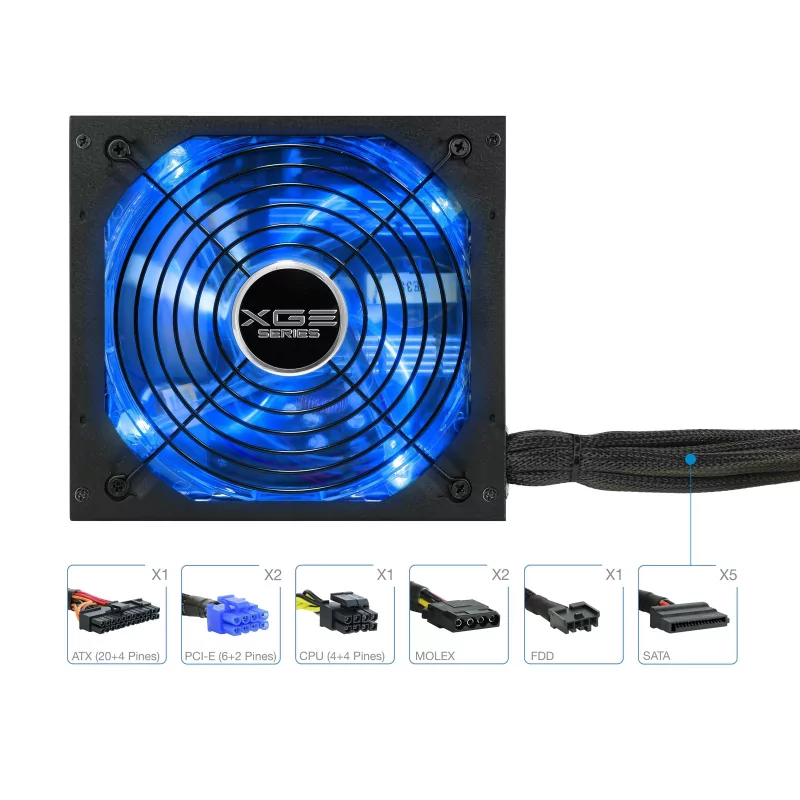

CONNECTORS:

• 1 x ATX 24/20 pin, (500mm) x1
• 1 x EPS/ATX 12V 8-4 pin, (600mm) x1
• 2 x PCI-e 6+2 pins, (500+150mm) x1
• 3 x SATA, (450+150+150mm) x1
• 2 x SATA, (450+150mm) x1
• 2 x 4 pins (Peripherals)+1 x 4 pins (Floppy Disk Reader), (450+150+150mm) x1

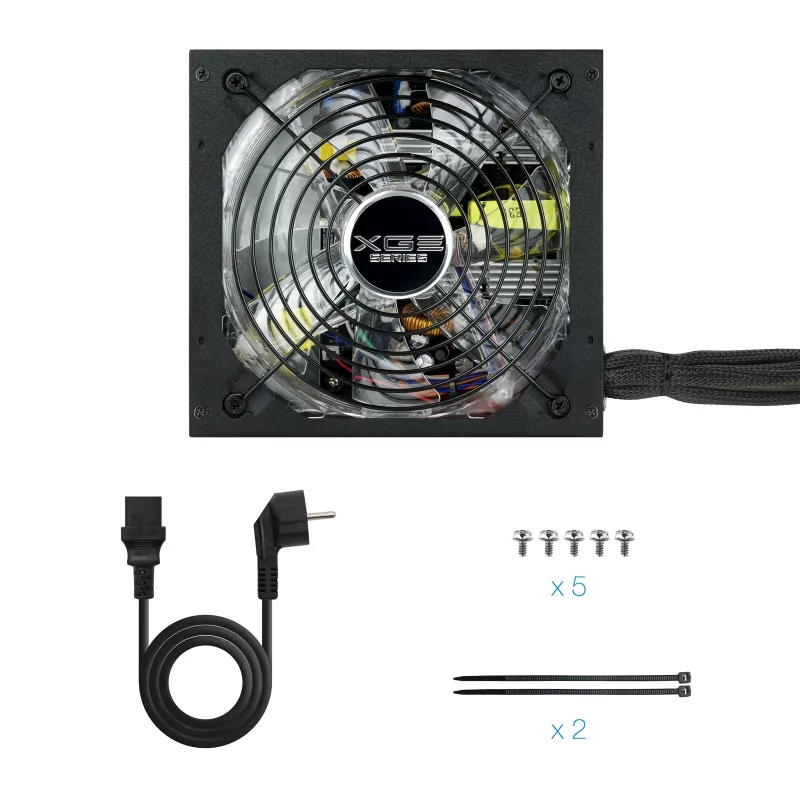

• Package content
• XGE II power supply
• 1.5 m power cable
• Multilingual instruction manual

Brand

TooQ

Reference

TQXGEII-525SAP

Stock Online

Sold out

Stock Store

Sold out
