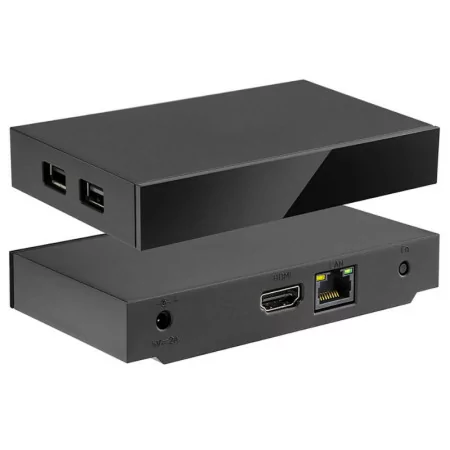

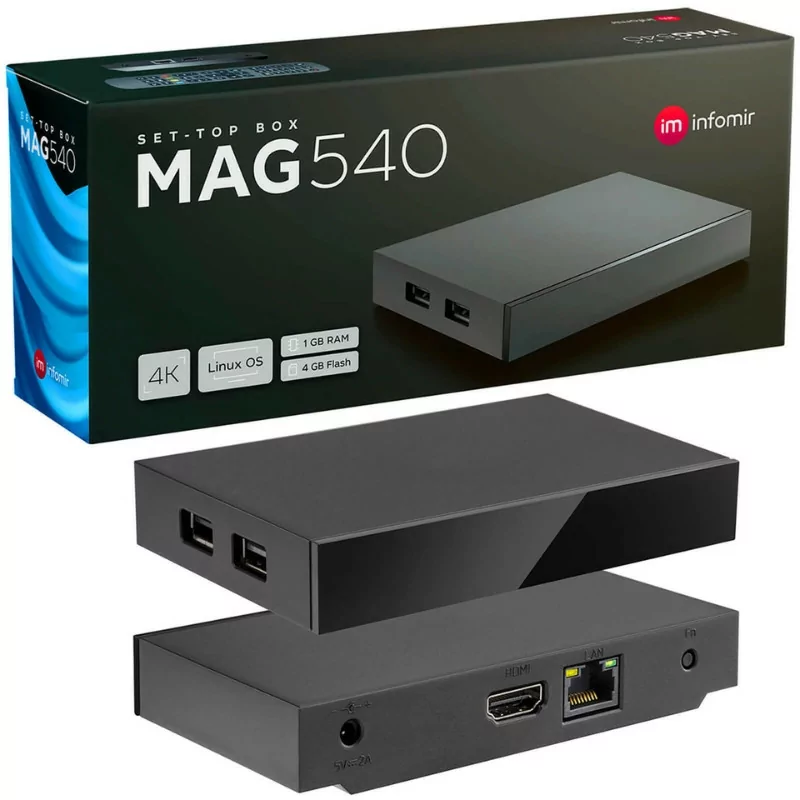

Mag 540 - IPTV Box - Linux 4K

A set-top box for operators and users around the world.

With the MAG540/540w3 box, users can watch linear TV , video on demand and content from IPTV/OTT providers. Additionally, the set-top box plays content within the local network and from external media. Operators can customize the device to provide users with a personalized interface and user experience and offer reliable technical support.

Amlogic S905Y4 High Performance Chipset

The devices are powered by an Amlogic S905Y4 chipset with an ARM Cortex-A35 quad-core processor. Thanks to its power and reliability, the set-top box can run for months without restarting.

Dolby Digital Plus™

The IPTV Box supports Dolby Digital Plus to provide clear eight-channel surround sound. The set-top box can be connected to seven speakers and a subwoofer . In this way, the soundtracks are distributed throughout the space, creating a surround sound effect and offering an immersive experience.

USB ports for connecting peripherals

A Box IPTV MAG540/540w3 is equipped with two USB 2.0 ports. They allow the connection of wired and wireless devices, such as keyboards, mice, memory cards, etc. Peripherals make typing and using the browser easier.

• Video modes: PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
• Audio codecs: MPEG L1/L2/L3, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
• Video codecs: MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main [email protected] High 2160p@60 fps (optional), H.264 AVC [email protected] 2160p@30 fps, XviD, 3D video support
• Video containers: TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
• Image formats: JPEG, PNG, BMP, RAW
• Subtitles: DVB, PGS, SRT, SSA/ASS, SUB, teletext, WebVtt, closed captions
• Playlist formats: M3U, M3U8, PLS, CUE

• Chipset: Amlogic S905Y4-B
• Performance: 16,500 DMIPS
• Processor: ARM Cortex-A35 quad-core, 2,000 MHz
• RAM: 1GB LPDDR4
• Flash memory: 4GB eMMC

• Operating system: Linux 4.9
• CAS/DRM: Upon request
• Supported middleware: Pre-integrated Ministra TV Platform. Customization with operator apps, customization or complete replacement available.

• Digital ports: HDMI 2.1
• Ethernet: 100Mbps
• USB: USB 2.0 × 2
• Wi-Fi: No Wi-Fi

• Power adapter: DC 5V, 2A (DC 12V, 1A optional)

• W/H/P: 120 × 78 × 21 mm
• Weight: 110 g.
