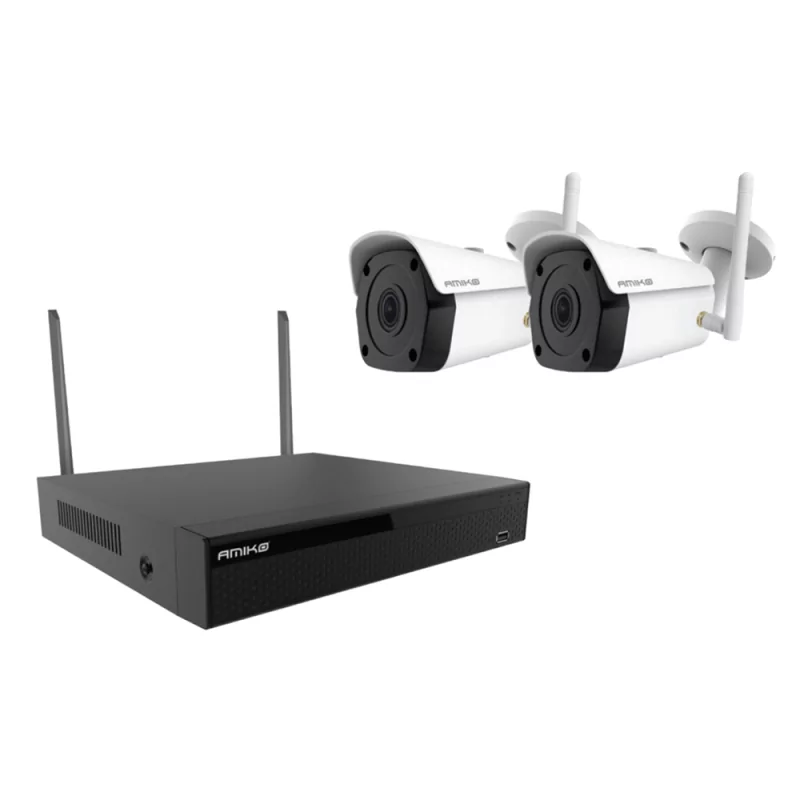

5 Megapixel, 2 Cameras, 4 Channel Wi-Fi Camera Kit

Packing

• 1 x NVR 4CH WIFI 5M
• 2 x 5 Megapixel WIFI Camera with Reset Key
• 1x USB 2.0 mouse
• 1 x DC 12V/2A power adapter for WIFI NVR
• 2 x DC 12V/0.5A power adapter for WIFI IP camera
• WIFI Range: Unobstructed 300m max.
• 2.8 kg / SET
• 315x180x280mm

Features

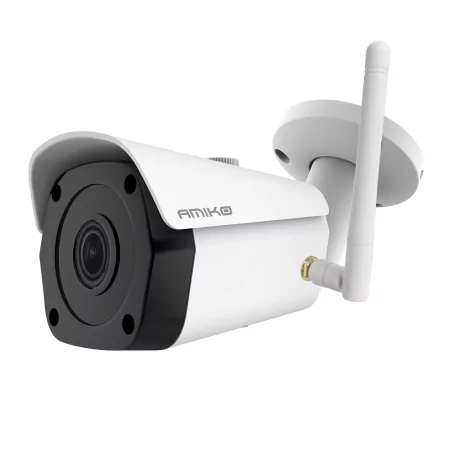

• 5 Megapixel Wi-Fi Bullet Camera
• Image sensor: 1/2.5" Fulhan CMOS sensor
• Resolution: 5 MP
• Effective pixels: 2592 (H) x 1952 (V)
• Compression: H.264 / H.264 + / H.265 / H.265 +/-
• TV System: JPEG / AVI / MJPEG / PAL / NTSC
• Electronic Shutter Time: Auto: PAL 1 / 25-1 / 10000Sec; NTSC 1 / 25-1 / 10000Sec
• S / N Ratio: ≥ 52dB
• Scanning system: progressive
• Video output: network
• Reset button: optional

lens type

• Focus Length: 3.6mm
• Focus control: Fixed
• Lens type: fixed
• Pixels: 5M Pixels

Night vision

• Infrared LED 42μ x 2PCS
• Infrared distance: 25M
• IR Status: Automatic Control
• IR Power: On Auto Control

NVR WIFI FULL HD

• Main processor ARM Cortex A7 Quad coreProcessor
• Integrated LINUX operating system

Video

• 4 input channels (WIFI IP camera / Wired IP camera), support 2592x1952, 2048x1536, 1920 × 1080, 1280 × 960, 1280 × 720
• Output 1 VGA, 1 HD

audio

• Input/Output 1 RCA port (linear, 1k)
• Audio bitrate 64 kbps
• Audio compression standard G711u, G711a, G726

alarm

• Sensor input: NO
• Output: NO
• 4-channel motion detection, MD zones: 396 (22×18)
• Trigger event recording, email, FTP, snapshot, ringer and screen, tips, alarm output

Network

• Interface: 1 10M/100M RJ45 Adaptive Ethernet Interface
• Input Bandwidth: 60MB
• Network Functions TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, p2p
• Onvif version support: Onvif 2.4
• IE8-11 Web Browser, Google Chrome (less than Ver44), Firefox (less than Ver53)
• CMS software support: Windows 7 / Windows 8 / Windows 10
• Cloud support (P2P): Yes
• Smartphone iPhone, iPad, Android, Android Pad
• Support WIFI, WIFI Range: Unobstructed 300m max.

Storage

• Interface type: 1 SATA hard disk interface (2.5"/3.5" SATA)
• Capacity: Up to 8TB of capacity
