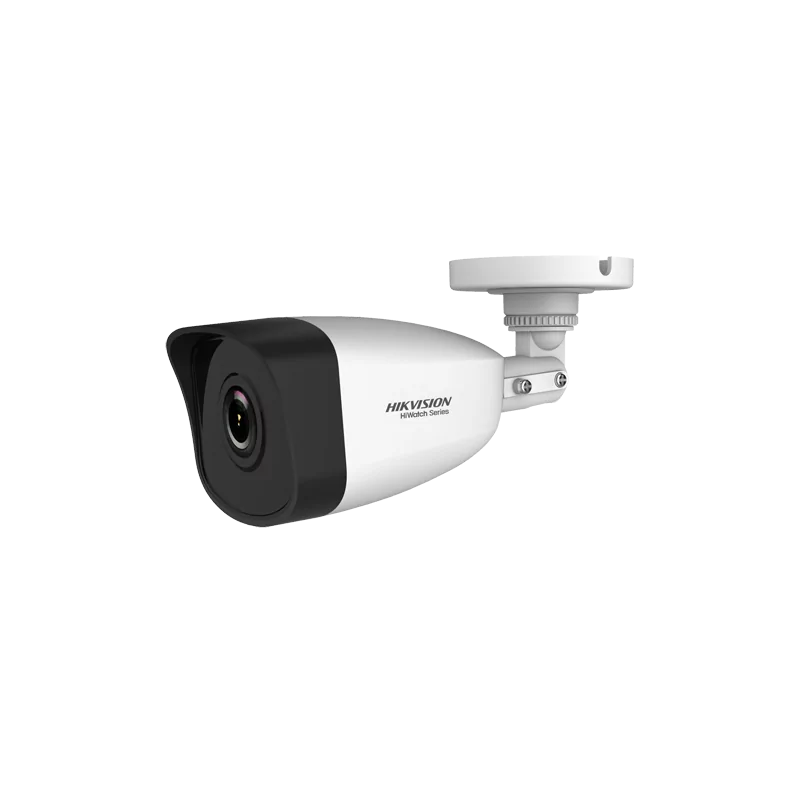

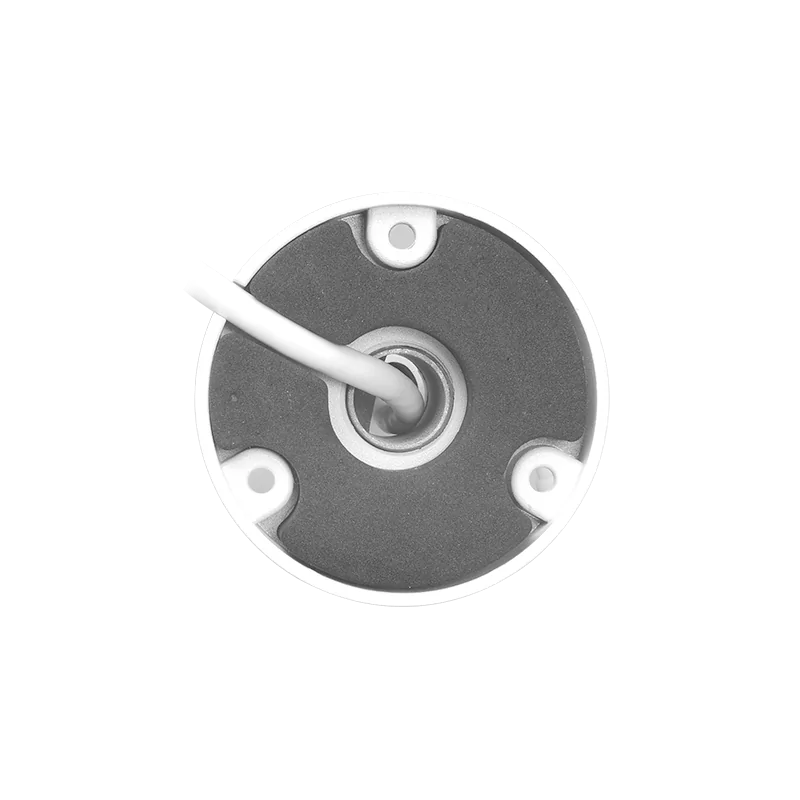

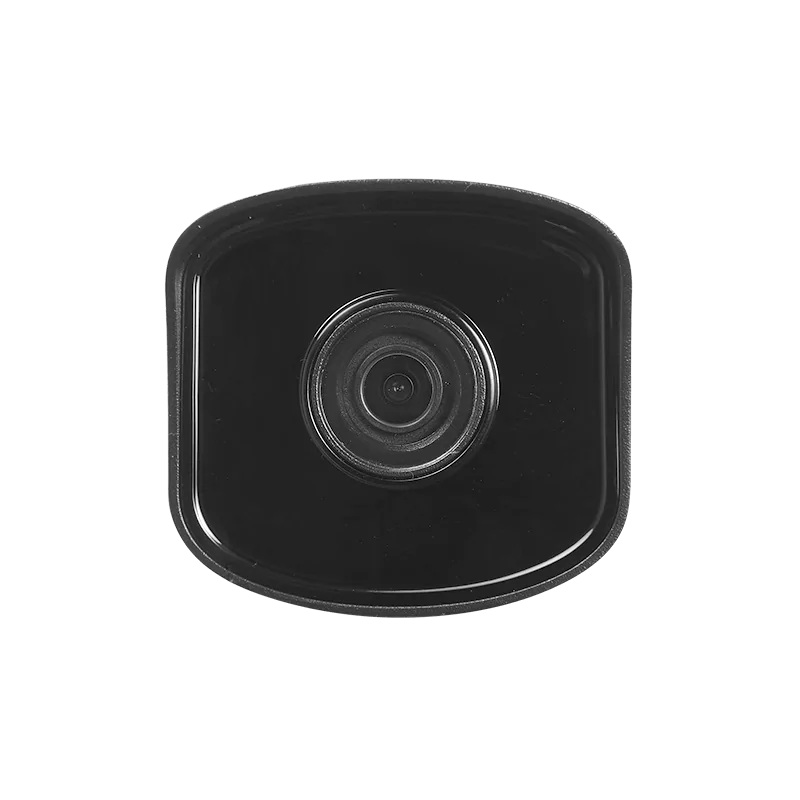

4 Chambers - HWI-B121H-M

Recorder - HWN-2104H-4P

Features | HWI-B121H-M :

-Brand: Hikvision

-Gamma: HiWatch Series

-Image Sensor: 1/2.8" Progressive Scan CMOS

-Maximum resolution: 2 Megapixel (1920x1080)

-Main Stream Rate: 1080p/720p (25 FPS)

-Extra Stream Rate: D1/CIF (1 ~ 25 FPS)

-Compression: H.265+/H.264+/H.265/H.264

-Bitrate: 32 Kbps ~ 8 Mbps

- Lens: 2.8mm

-Minimum Illumination: Color 0.01 Lux @ F1.2 | Color 0.028 Lux @ F2.0

-Infrared Illumination: 0 Lux / EXIR IR LEDs (30 m)

-Image Enhancements: DWDR, BLC, 3D-NR, AGC, Motion detection

-Day/Night: Removable ICR mechanical filter

-Alarms: Not available

-Audio: Not available

-Network Interface: Ethernet 10/100 BaseT

-Internal storage: Not available

-Remote access: Web Browser, IVMS 4500 Smartphone App and IVMS 4200 PC Software

-Interoperability: ONVIF, PSIA, CGI, ISAPI

-Power: DC 12 V / 400 mA, PoE IEEE802.3af

-Degree of protection: Waterproof IP67

-Material: Metal

-Temp. operation: -30º C ~ +50º C

-Dimensions: 186.3 mm (Fo) x 70 (Ø) mm

-Weight: 270g

Features | HWN-2104H-4P:

-Brand: Hikvision

-Inputs for IP cameras: LAN port up to 4 channels

-Power over Ethernet: IEEE802.3af/at 4-port PoE switch (36W max)

- IP compatible cameras: HIKVISION, ONVIF

- Two-way audio: 1 input / 1 RCA output

-Video outputs: 1 HDMI FullHD, 1 VGA

-Video compression format : H.265+ / H.265 / H.264+ / H.264

-Video resolution: 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768

-Total bandwidth: 40Mbps downstream / 60Mbps upstream

-Main stream recording: 4MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF

-Decoding capacity: 1CH@4Mpx or 2CH@1080p

-simultaneous multifunction: Pentaplex: Live, Recording, Playback, Backup and Remote Access

-Alarms: No

-Recording method: Manual, scheduled, motion detection

-External backup: USB memory / USB HDD / USB CD-RW / USB DVR-RW

-Internal memory : 1 SATA HDD 3.5" up to 6TB (not included)

-Communication: 2 x USB 2.0 / 1 x RJ45 10/100/1000 (Ethernet)

-Remote Access: Web Browser, IVMS 4500 Smartphone App and IVMS 4200 PC Software

-Power: DC 48V, 50/60Hz

-Dimensions / Weight: 48 (H) x 200 (W) x 200 (D) mm / 1.0 Kg (without HDD)
