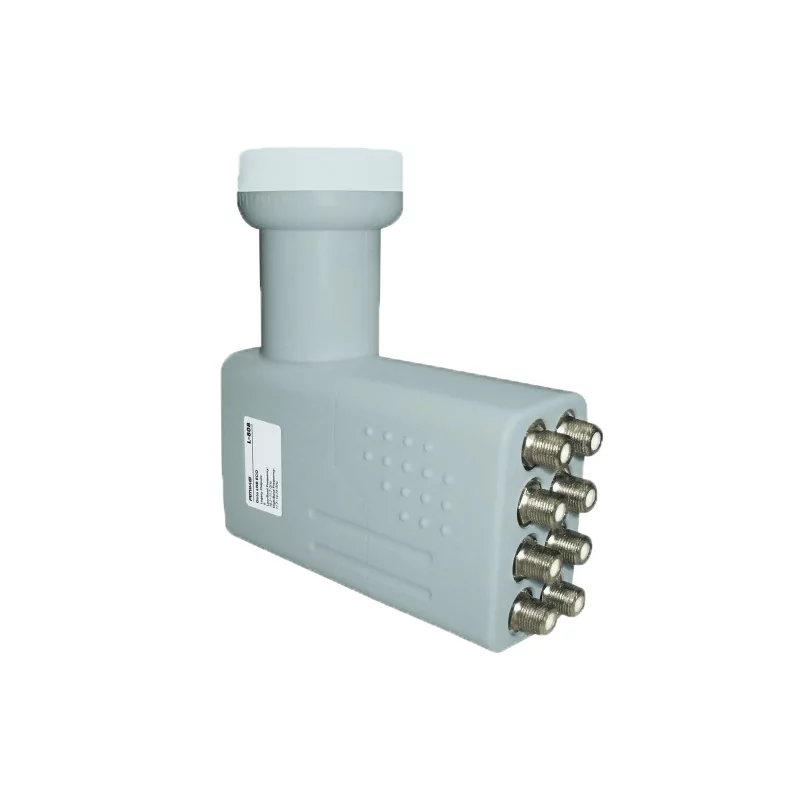

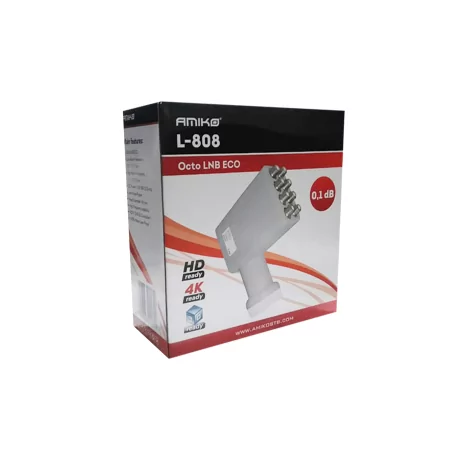

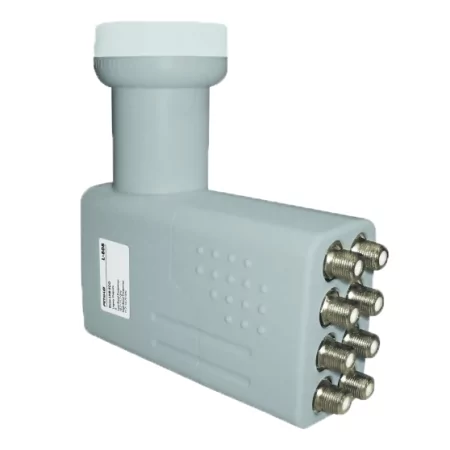

Amiko Octo LNB L808
REF: LNB AMIKO 8 SAIDAS
EAN: 5999883021620
Amiko Octo LNB L808
REF: LNB AMIKO 8 SAIDAS
EAN: 5999883021620
notifications
Store: €32.00
€22.90
- Technical specifications
- Departures : 8
- Noise: 0.1 dB
- Reflector Type : Offset
- Clamp Size: 40mm
- Input Frequency Range: 10.7GHz-11.7GHz (Low Band)
- Input Frequency Range : 11.7GHz-12.7GHz (High Band)
- Output Frequency Range: 950MHz-1950MHz (Low Band)
- Output Frequency Range: 1100MHz-2150MHz (High Band)
- LO Frequency: 9.75GHz (Low Band)/10.6GHz (High Band)
- LO Phase Noise Frequency: -60dBc/Hz @ 1KHz(Max)/-85dBc/ Hz @ 10KHz (Max)/ -100dBc @ 100KHz (Max)
- Conversion Gain: 58-63dB
- Bandwidth 26MHz Flatness Gain : +/- 0.5 dB/36MHz
- Polarity Connection Voltage: Horizontal : 16-18V/Vertical: 12-14.5V
- High Band Switching: 22KHz +/- 4KHz
- Pol Cruz. Isolation : <= 18 dB (.Typ)
- Door-to-Door Isolation: <= 16dB
- Image rejection : 40dB (Min)
- Spurious output: < -60dBm
- Power consumption: 210mA (.Typ)
- Output Type Connector: 75Ohm - Type F (Female)
- Operating temperature range: -40ºC - + 65ºC
- 4K Ready
- Brand
- Amiko
- Reference
- LNB AMIKO 8 SAIDAS
- Stock Online
- Available
- Stock Store
- Available
- Color
- White
- No. of LNB Exits
- 8
