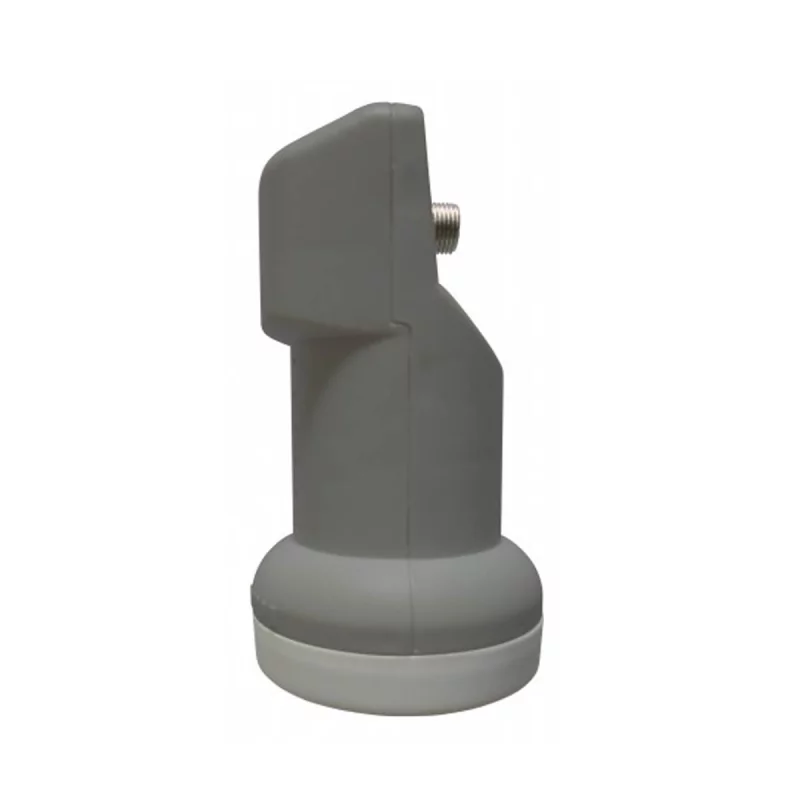

Technical Features:

• Input frequency:
• Low Band: 10.70~11.70 GHz
• High Band: 11.70~12.75GHz

• Output frequency:
• Low Band: 950~1950MHz
• High Band: 1100~2150MHz

• Local Oscillator:
• Low Band: 9.75 GHz
• High Band: 10.60 GHz

• Noise Figure: 0.1 dB (typ.)

• Gain at 25ºC: 58 dB (min.) / 63 dB (max.)

• Gain Stability: ± 0.5 dB / 26 MHz

• Cross-Polarization Isolation: 25 dB (typ.)

• Local Oscillator Stability:
• ± 1.0 MHz (max.) @ +25º C
• ± 2.0 MHz (max.) @ -40º C ~ +60º C

• Local oscillator phase noise:
• -50 dBc / Hz @ 1 kHz
• -75 dBc / Hz @ 10 kHz
• -95 dBc / Hz @ 100 kHz

• Image Rejection: 40 dB (min.)

• VSWR: 2 : 1 (typ.)

• Current consumption: 70 mA (max.)

• Band Change:
• Low Band: 0 kHz
• High Band: 22 kHz ± 4 kHz

• Voltage - polarization change:
• 12.0 ~ 14.0 V Vertical
• 16.0 ~20.0 V Horizontal

• Operating Temperature: -40ºC ~ +60ºC

Brand

Daxis

Reference

AS0420

Stock Online

Available

Stock Store

Available

Color

Gray

No. of LNB Exits

1
