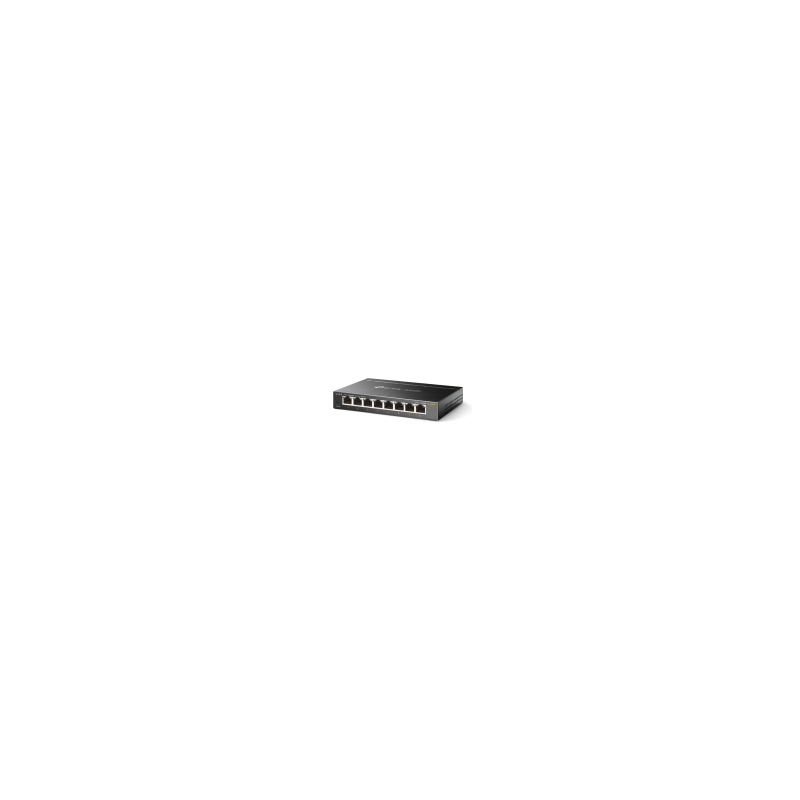

8-port 10/100/1000 Mbps desktop switch

• 8 10/100/1000 Mbps auto-negotiation RJ45 ports supporting Auto-MDI/MDIX
• Green Ethernet technology saves energy consumption
• IEEE 802.3x flow control provides reliable data transfer
• Wall mount, desktop or steel enclosure design
• Supports 802.1p/DSCP QoS and IGMP Snooping function
• Plug and play, no configuration required

Gigabit Switch

Featuring eight 10/100/1000 Mbps ports, the TL-SG108S greatly expands your network capacity, enabling instant transfer of large files. Therefore, power users at home, in the office, in workgroups, or in creative production environments can now move large, bandwidth-intensive files much faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Easy to use

The automatic features of this gigabit switch make installation plug-and-play and hassle-free. No configuration is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port detects the link speed of a network device (whether 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Furthermore, the fanless design ensures quiet operation.

• HARDWARE FEATURES
• Standards and Protocols: IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p
• Interface: 8 10/100/1000 Mbps ports, auto negotiation, auto MDI/MDIX
• Number of Fans: None
• Power Consumption: System Energy
• Link/Act indicators per port integrated into each RJ-45 port
• External Power Supply: External power adapter (output: 9VDC / 0.6A)
• Buffer Size: 1.5Mb
• LED Indicator: System Power
• Link/Act indicators per port integrated into each RJ-45 port
• Dimensions: 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)
• PERFORMANCE
• Packet Forwarding Rate: 11.9Mpps
• MAC Address Table: 4K
• Packet Buffer Memory: 1.5Mb
• Jumbo Frame: 16KB
• SOFTWARE FEATURES
• Advanced Features: Eco-friendly technology, which saves up to 82% energy
• 802.3X Flow Control
• QoS 802.1p / DSCP
• IGMP Inspection
• Transfer Method: Store and forward
• OTHERS
• Certifications: CE, FCC, RoHS
• Package Contents: 8-Port 10/100/1000 Mbps Desktop Switch
• Power adapter
• Installation guide
• Rubber feet
• Environmental Factors: Operating temperature: 0 C ~ 40 C (32 F ~ 104 F)
• Storage temperature: -40 C ~ 70 C (-40 F ~ 158 F)
• Operating humidity: 10% ~ 90%, non-condensing
• Storage humidity: 5% ~ 90% non-condensing
