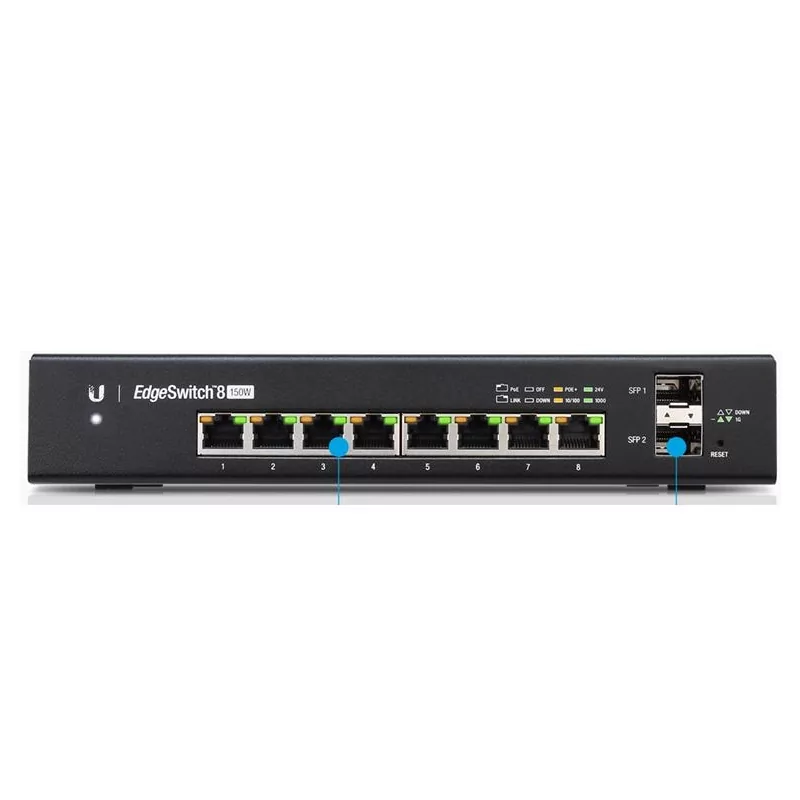

Ubiquiti Switch EdgeSwitch 8 PoE - 150W 24V - ES-8-150W

Build and expand your network with the Ubiquiti EdgeSwitch®, part of the EdgeMAX® product line.

The EdgeSwitch is a fully managed Gigabit PoE+ switch, offering robust performance and smart switching for growing networks.

management features

• Switch Type: Managed
• Support for Quality of Service (QoS): Yes
• Web-based management: Yes
• Event log system: Yes

connectivity

• Number of Basic Switching RJ-45 ethernet ports: 8
• Basic switching RJ-45 ethernet port types: Gigabit Ethernet (10/100/1000)
• Number of SFP module slots: 2
• Console input: RJ-45
• Power connector: DC input jack

Network

• Communications Standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3af ,IEEE 802.3ak,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
• 10G Support: No
• Copper ethernet cabling technology: 10BASE-T,100BASE-T,1000BASE-T
• Port Mirroring: Yes
• Flow control support: Yes
• Link Aggregation: Yes
• Broadcast storm control: Yes
• Spanning tree protocol: Yes
• Active call detection: Yes
• VLAN Support: Yes
• Virtual LAN features: Tagged VLAN, Port-based VLAN

Power over Ethernet (PoE)

• PoE: Yes
• Number of PoE+ ports: 8
• PoE power supply voltage range: 50-75V
• Power per PoE power port: 34.2W
• Voltage: 42-56V

Environmental conditions

• Ambient temperature: -25 - 60 °C
• Relative humidity range: 5 - 95%

weights and dimensions

• Product width: 204 mm
• Unit Depth: 235mm
• Unit Height: 43mm
• Product weight: 1.72 kg

Packaging

Mounting Brackets Included: Yes
