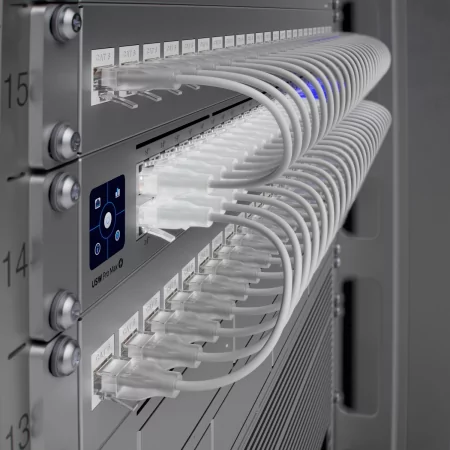

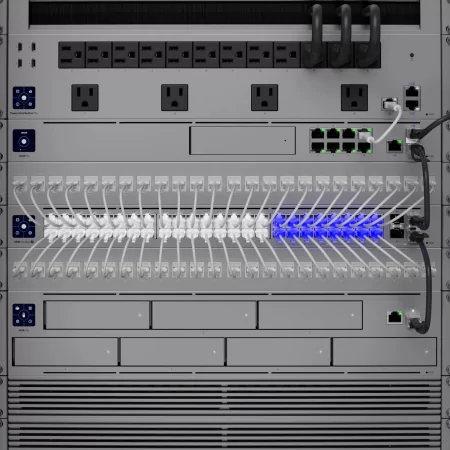

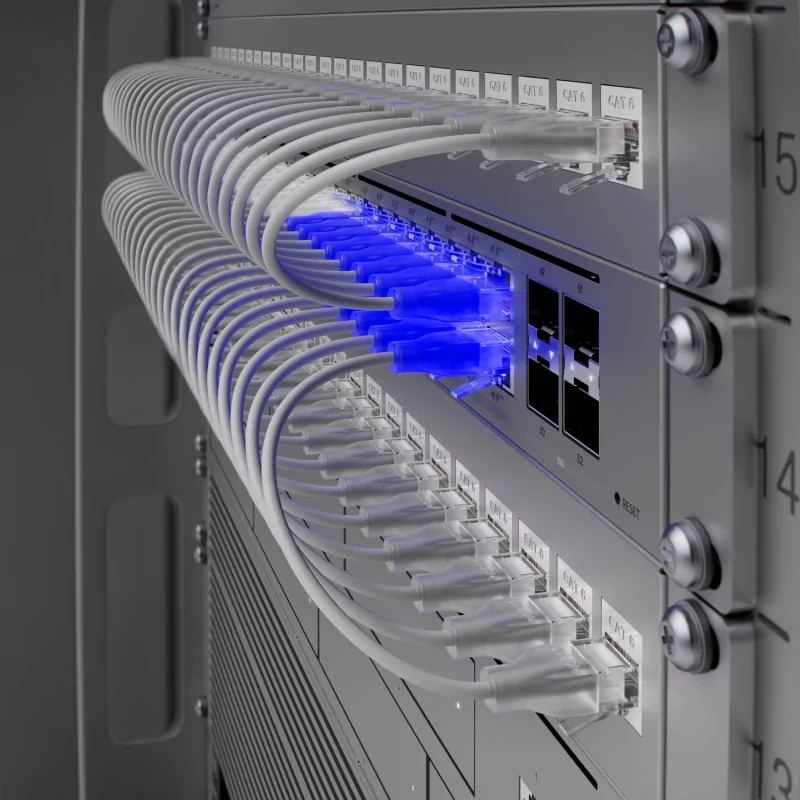

Ubiquiti UniFi Switch Pro Max 48 PoE - (48 Ports - Layer 3 - 2.5GbE - PoE++)

Ubiquiti Unifi

The Ubiquiti UniFi Switch USW-PRO-MAX-48 is a robust and advanced network switch designed to meet the needs of high-performance enterprise networks. With 48 Gigabit Ethernet ports, it provides a reliable connection for multiple devices on a network.

Intuitive Interface

This switch features an intuitive management interface, allowing precise control over network traffic and advanced security configurations. Additionally, it has QoS (Quality of Service) features for traffic prioritization, ensuring a smooth and stable network experience.

High Speed Switching

With high-speed switching capability and support for PoE (Power over Ethernet) , the USW-PRO-MAX-48 is capable of powering compatible devices directly through the network cable, eliminating the need for separate power supplies.

Ideal for Business Environments

This switch is ideal for business environments that require high performance, reliability and scalability in their network infrastructure. With the Unifi USW-PRO-MAX-48 , it is possible to build and manage a powerful and efficient network, meeting connectivity demands effectively.

• Height: 443 mm
• Width: 221 mm
• Depth: 43 mm
• Weight (without mounting brackets): 2.62 kg
• Weight (with mounting brackets): 2.71 kg

• Network Interfaces:
• (32) GbE RJ45 ports
• (16) 1/2.5 GbE RJ45 ports
• (4) 10G SFP+ ports
• PoE Interfaces:
• (32) PoE/PoE+ (Pins 1, 2+; 3, 6-)
• (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
• Throughput and Capacity:
• Total non-blocking throughput: 112 Gbps
• Switching capacity: 224 Gbps
• Food:
• Power method: Universal input (100—240V AC, 50/60 Hz) and USP-RPS DC input
• Power supply: AC/DC, internal, 820W
• Maximum power consumption: 100W (excluding PoE output)
• Total PoE available: 720W
• Maximum power per PoE port by PSE:
• PoE: 15.4W
• PoE+: 30W
• PoE++: 60W
• Voltage range in PoE mode:
• PoE: 44—57V
• PoE+: 50—57V

• 1.3" touch screen (LCM display)
• Factory reset button

• Ambient operating temperature: -5 to 40°C
• Ambient operating humidity: 10 to 90% non-condensing

• CE, FCC, IC

• Layer 2 Features:
• IGMP snooping
• STP/RSTP with port priorities and disabling
• Door insulation
• Storm control
• Voice VLAN
