CHARACTERISTICS

AC/DC adapter 15 to 24 V, 6 A, 90 W maximum and 5 V USB port, 2 A maximum.

Switched and stabilized, energy efficient.

USB port for power supply and 5V charge.

For notebooks and laptops.

OUTPUTS

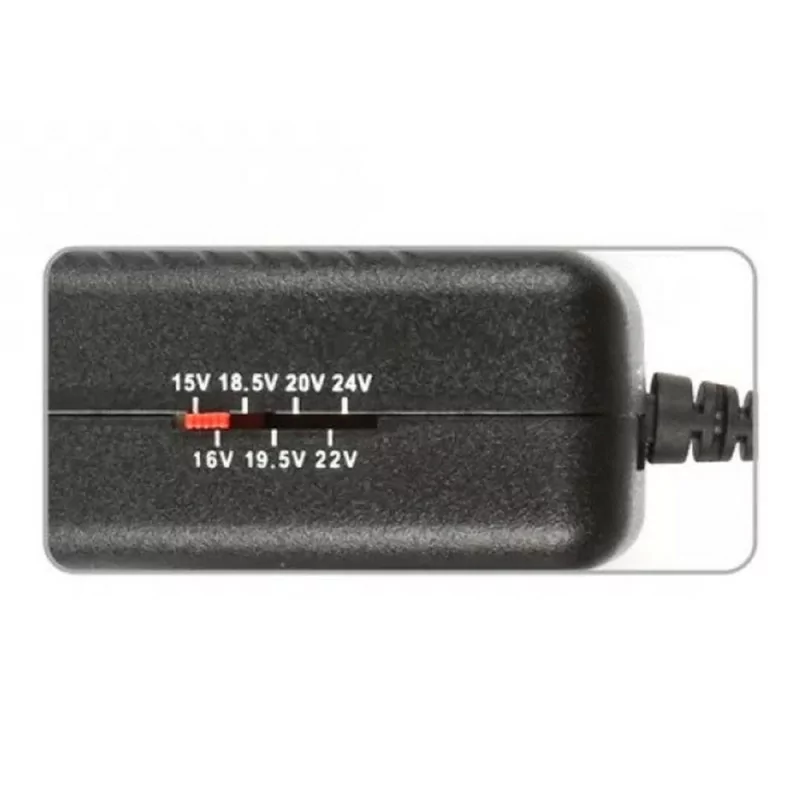

Manual selection for 15 V, 16 V, 18 V, 19.5 V, 20 V, 22 V and 24 V DC

Most common voltages for the connectors included:

15 V (3 A), 15 V (4 A), 15 V (5 A), 15 V (6 A), 16 V (3.36 A), 16 V (3.5 A), 16 V (3.75 A), 16 V (4 A), 16 V (4.5 A), 18 V (4.74 A), 18.5 V (1.1 A), 18.5 V (2.7 A), 18.5 V (3.5 A), 18.5 V (3.52 A), 18.5 V (3.8 A), 18.5 V (4.5 A), 18.5 V (4.9 A), 19 V (1.58 A), 19 V (2.64 A), 19 V (3.16 A), 19 V (3.42 A), 19 V (3.68 A), 19 V (3.95 A), 19 V (4.2 A), 19 V (4.22 A), 19 V (4.47 A), 19 V (4.74 A), 19.5 V (2.15 A), 19.5 V (3 A), 19.5 V (3.34 A), 19.5 V (4.1 A), 19.5 V (4.62 A), 19.5 V (4.7 A), 20 V (3.25 A), 20 V (3.5 A), 20 V DC (4.5 A)

USB port: 5 V DC (2 A)

DC OUTPUTS

A: 6.5 x 4.4 (Sony, Fujitsu with 16, 19 and 19.5 V inputs);

D: 6.3 x 3 (Toshiba with 15 V input);

F: 5.5 x 2.5 (Acer, HP/Compaq, Fujitsu, Toshiba with 16, 18.5, 19, 19.5 V inputs);

G: 5.5 x 3 (Samsung with 16, 19 V inputs);

H: 3-pin Dell 20 V;

N: 5.5 x 1.7 (Acer, Dell with 19 V input);

P: 4.8 x 1.7 (Asus, HP/Compaq, LG, Sony, Benq with 18.5, 19 V inputs);

S: 4 x 1.7 (HP/Compaq with 19 V inputs);

Q: 7.4 x 5 (Dell with 19.5 V inputs);

R: 7.4 x 5 (HP/Compaq with 18.5, 19 V inputs)

INDICATOR

LED power indicator

POWER SUPPLY

100-240 V AC, 50-60 Hz

WEIGHT

0.3 kg

ACCESSORIES

10 interchangeable connectors
