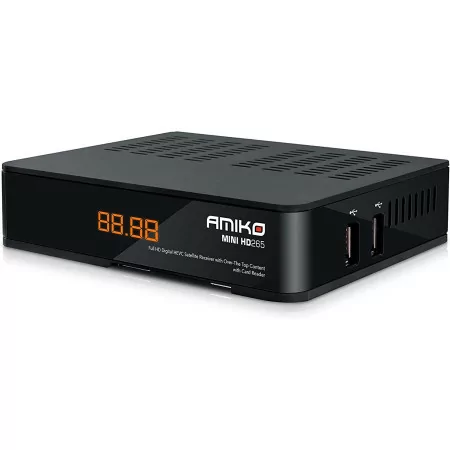

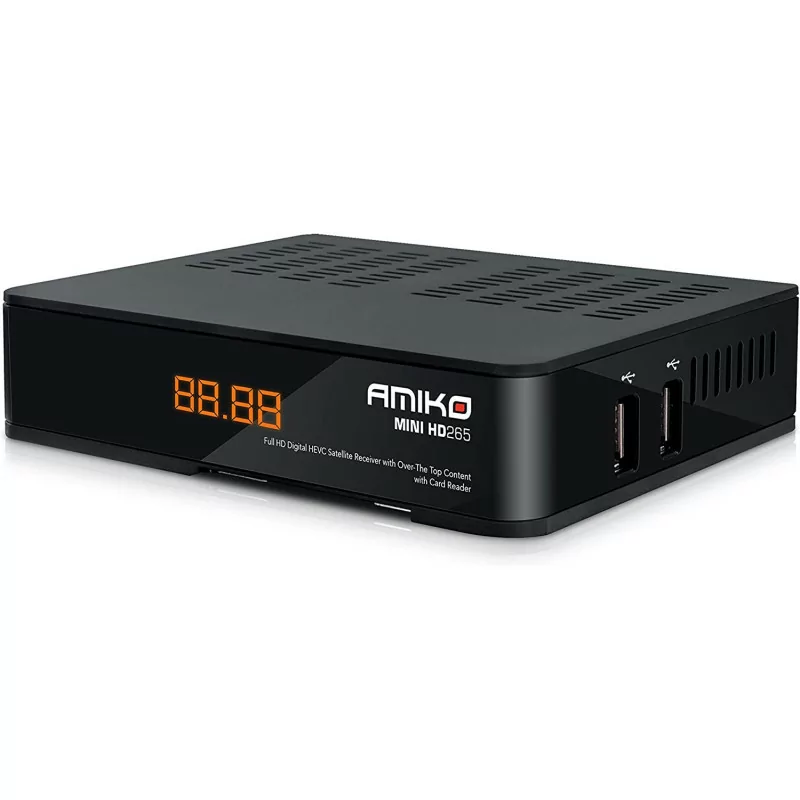

Amiko Mini HD265 SAT STB

Main features:

• Card reader Conax
• H.265 / HEVC Support
• Programmable up to 6000 channels TV and Radio
• Stream TV & Radio Channels for Android Devices via Local Area Network
• 2x USB 2.0 High Speed
• Supports Ethernet & WiFi connection via USB
• Youtube Videos
• Functions RSS Reader & Weather Forecast
• Compatible with DiSEqC 1.0, 1.1, 1.2 & USUALS
• Full HD (1080p) output for HDMI
• Channel recording for external storage devices
• Supports Timeshift
• Recording Channels & Timeshift Simultaneously (Optional)
• Channel change time less than 1 second
• True-color, User Friendly On-Screen Display (OSD)
• Full Picture In Graphic Function (PIG)
• Electronic Program Guide (EPG) for on-screen channel information
• Supports captions
• Supports VBI insertion teletext and software emulation
• Parental control by channel or program
• Transferring channel and receiver information to receiver
• Games Included
• Multi-language support
• Standby power consumption: <0.5W

• Tuner & Demodulation
• Tuner Type: DVB-S / DVB-S2
• Connector Input: F-Type, Connector, Female
• Signal level: -65 to -25 dBm
• Energy LNB & Polarization: Vertical: + 13V / + 14V,
• Horizontal: + 18V / + 19V
• Current: Max 400mA
• Overload protection
• 22KHz: 22 ± 1KHz
• DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
• Demodulation: QPSK, 8PSK
• Symbol Rate Input: 2-45 Mbps,
• FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto

• System Features
• Processor: 800MHz
• Flash Memory: 16MB
• DDR RAM: 256MB
• MPEG TS A / V decoding
• Stream: MPEG-2, H.264, H.265
• Input rate: Max.120Mbit / s
• Aspect Ratio: 4: 3, 16: 9, Letter Box
• Video decoding: MPEG-4 / H.265, SP @ L3 to ASP @ L5, AVC, HP @ level 4.1, MP @ level 4.1
• Video resolution: 720 * 480P / I, 720 * 576P / I, 1280 * 720p, 1920 * 1080i, 1920 * 1080p
• Audio decoding: MPEG-1/2, AAC-LC, HE-AAC, MP3, Dolby digital
• Audio Mode: Left / Right / Stereo / Mono
• Sampling rate: 32, 44.1 and 48KHz

• Power Supply
• Input voltage: 12V DC
• Power Consumption: 24W Max
• Consumption in stand-by mode: <0.5W

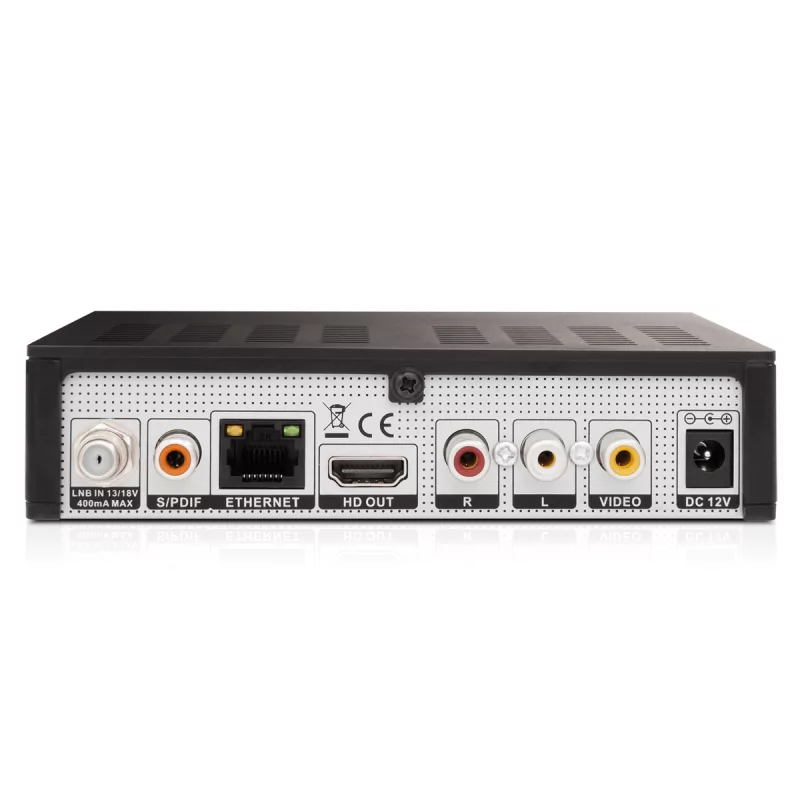

• Input / Output A / V & Data
• AV Output: RCA jack (CVBS L / R audio / video output)
• USB: 2x USB 2.0 High Speed
• S / PDIF: optical
• HDMI: VER1.3, Type A
• Ethernet: 10 / 100M RJ45
• RS232: Type Jack

• Physical specifications
• Net Weight: 0.5KG
• Operating temperature: 0 ° C ~ + 45 ° C
• Storage temperature: -10 ° C ~ + 70 ° C
• Storage humidity: 5% ~ 95% RH (non-condensing)

• Package Contents
• Amiko Mini HD265 STB

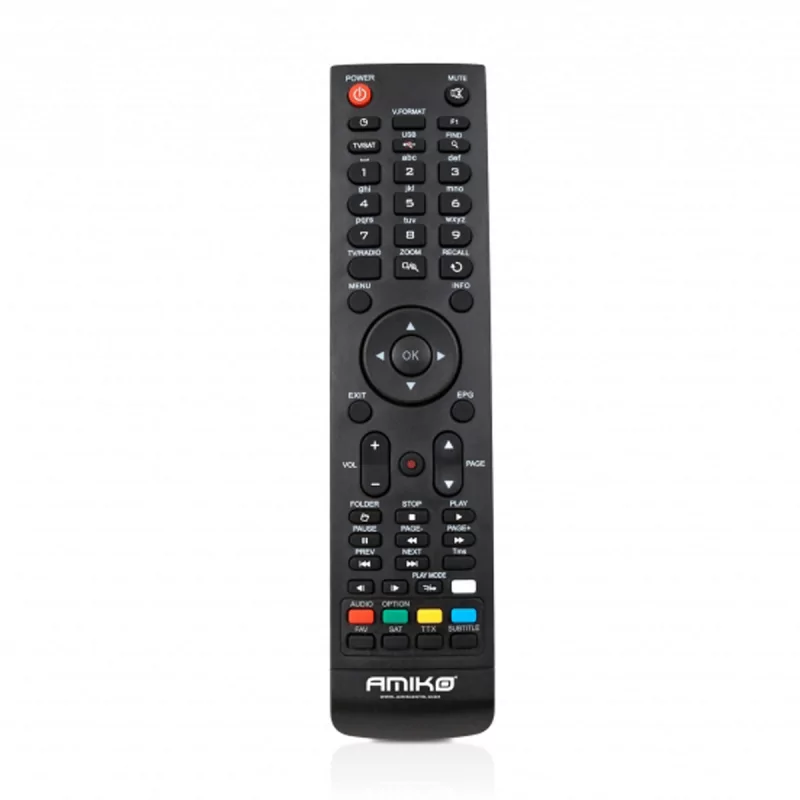

• Remote Control Unit
• 2x AAA Batteries
• Power Adapter 12V 1A
• HDMI Cable
• Infrared Cable
• User Manual
