Specifications:

Electrical Power Supply:

• Voltage / Phase / Frequency: 220–240 V ~ 1 F / 50 Hz Outdoor unit

Performance:

Cold Mode:

• Capacity: 3.4 kW (0.8 ~ 3.8)
• Capacity (Btu/h): 11,594 (2,728 ~ 12,958)
• Consumption: 1,340 W (200 ~ 1,500)
• Current: 5.9 A
• SEER: 6.2 W/W
• Energy Class: A++

Heat Mode:

• Capacity: 3.5 kW (0.8 ~ 4.0)
• Capacity (Btu/h): 11,935 (2,728 ~ 13,640)
• Power consumption: 950 W (200 ~ 1,400)
• Current: 4.1 A
• SCOP: 4.0 W/W
• Energy Class: A+

Features:

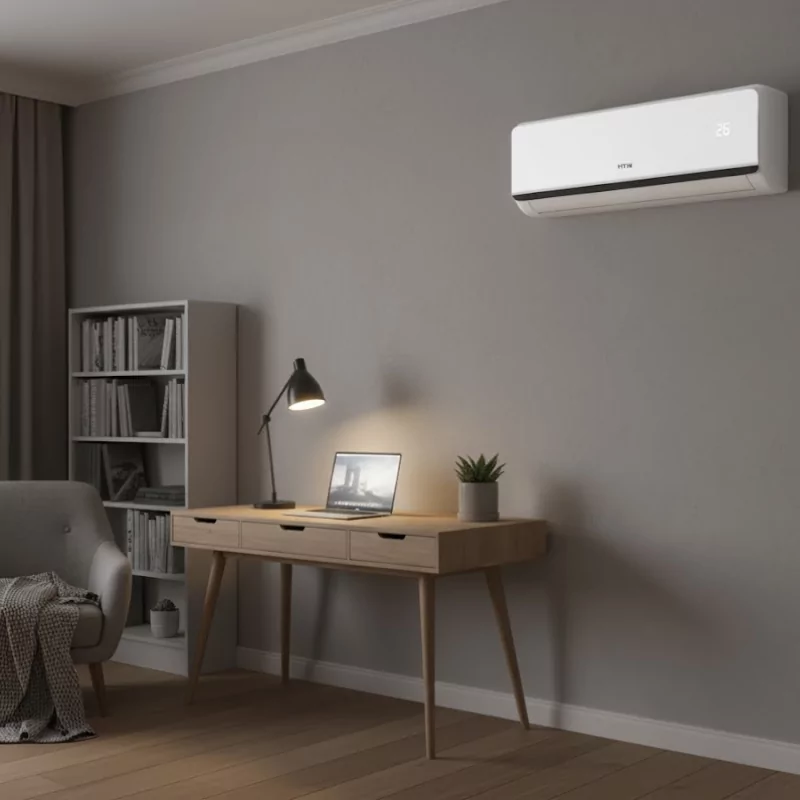

Interior Unit:

• Sound power: 54 dB(A)
• Sound pressure (H/L/M/S): 37 / 34 / 32 / 23 dB(A)
• Air flow rate (H/L/M/S): 600 / 530 / 480 / 420 m³/h
• Selectable temperature range: 17 ~ 32 ºC

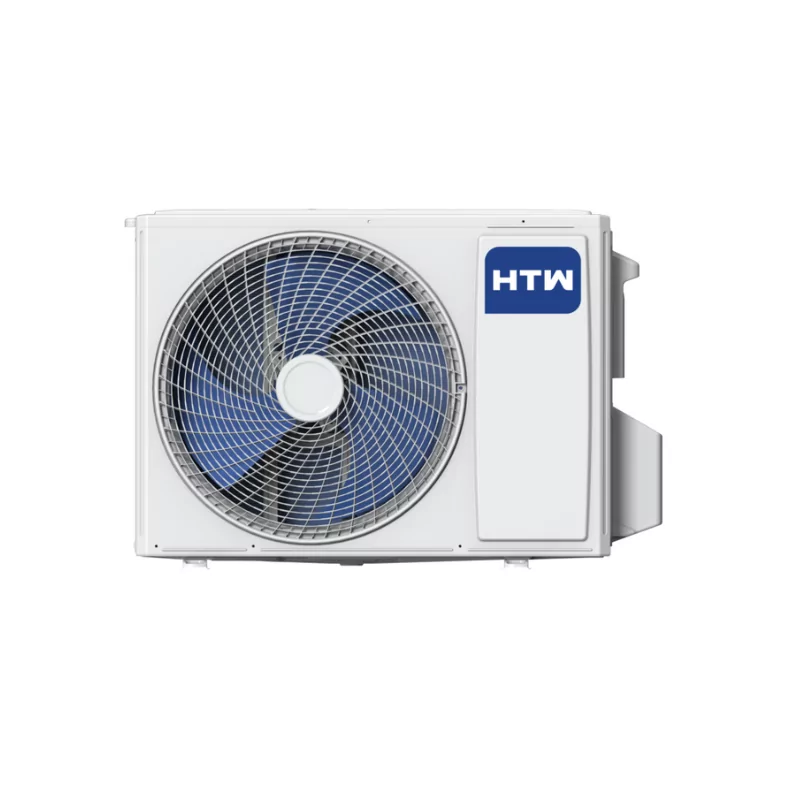

Outdoor Unit:

• Sound power: 61 dB(A)
• Sound pressure: 48 dB(A)
• Airflow: 1,550 m³/h
• Operating temperature (cooling/heating): -15 ~ 50 ºC / -15 ~ 30 ºC

Refrigerator:

• Type / Charge: R32 / 0.57 kg
• Additional load (>5 m): 20 g/m

Dimensions and Weight:

Interior Unit:

• Net dimensions (LxWxD): 750 × 285 × 200 mm
• Gross dimensions (WxHxD): 820 × 347 × 277 mm
• Net / gross weight: 7.5 / 10.5 kg

Outdoor Unit:

• Net dimensions (LxWxD): 649 × 450 × 232 mm
• Gross dimensions (WxHxD): 760 × 510 × 315 mm
• Net / gross weight: 18.5 / 21.0 kg

Connections:

Cooling Tube:

• Liquid / Gas: 1/4" – 3/8"
• Maximum length: 20 m
• Maximum elevation difference (internal/external): 10 m

Electrical Connections:

• Feed: 2×1.5 mm² + T
• Interconnection: 4 x 1.5 mm² + T
