HTW IX75B Split Air Conditioner - 9,000 BTU

Superior efficiency with built-in Wi-Fi.

The HTW IX75B (model HTWS026IX75B) is a highly energy-efficient 1x1 split air conditioning system with integrated Wi-Fi , perfect for air conditioning small to medium-sized rooms. Equipped with DC Inverter technology and environmentally friendly R32 refrigerant, this model stands out for its ultra-quiet operation, minimal consumption, and intelligent connectivity.

Main Features

Wi-Fi remote control included.

• Integrated Wi-Fi, no additional modules required.
• Remote management via smartphone or tablet - control from wherever you are.
• Intuitive application for real-time programming and monitoring.
• Smart connectivity for maximum comfort and convenience.

Advanced Technology

• DC Inverter technology for maximum energy efficiency and precise control.
• R32 refrigerant gas: more environmentally friendly, with less environmental impact and better performance.
• Golden Fin protection on coils for superior corrosion resistance.
• Operating temperature: -15°C to +53°C - works even in extreme conditions.
• Selectable indoor temperature: 17°C to 32°C

Smart Functions

• Turbo Mode: rapid cooling/heating when needed.
• I Feel function: sensor in the control that adjusts the temperature according to your exact location.
• Auto-restart: automatically resumes settings after a power failure.
• 24-hour timer: flexible programming for automatic on/off.

Technical Specifications

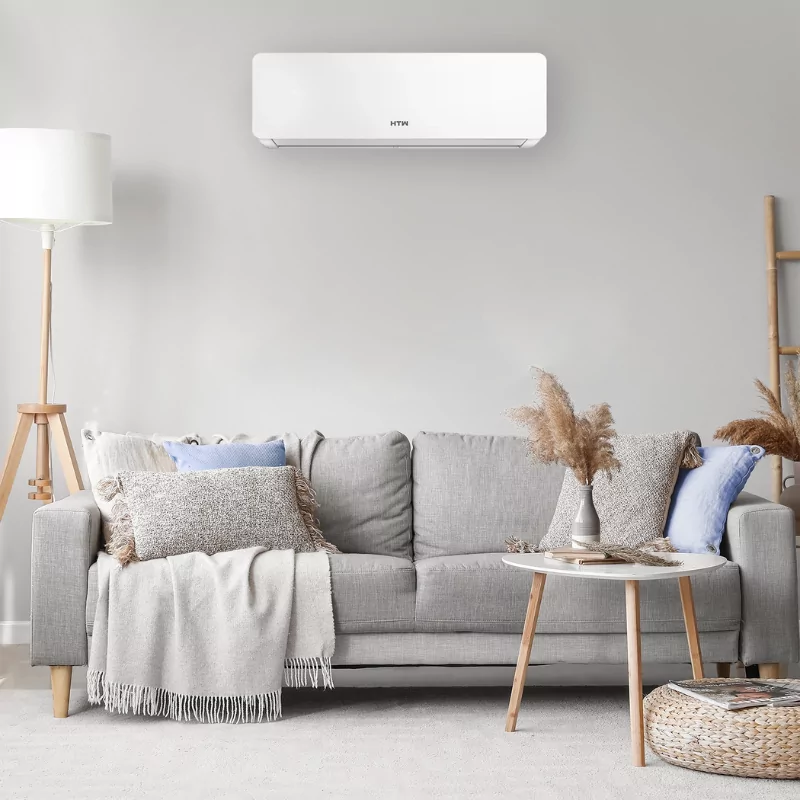

Interior Unit

• Dimensions: 700 × 270 × 197 mm (W × H × D)
• Weight: 7 kg (net) / 8 kg (gross)
• Airflow: 350-500 m³/h (adjustable in 4 speeds)
• Sound pressure: 21-40 dB
• Sound power: 37-50 dB

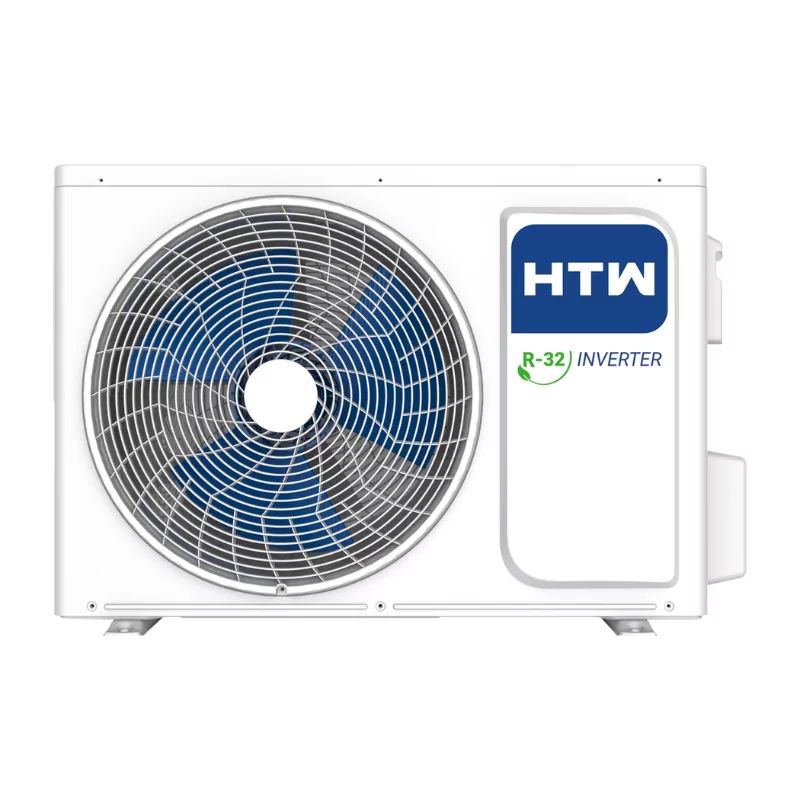

Outdoor Unit

• Dimensions: 665 × 530 × 260 mm (W × H × D)
• Weight: 21.2 kg (net) / 24.3 kg (gross)
• Airflow: 1650 m³/h
• Sound pressure: 52 dB
• Sound power: 62 dB

Installation

• Power supply: 220-240V ~ 50Hz (single phase)
• Electrical connection: 2 × 2.5 mm² + Ground (power supply) | 4 × 1.5 mm² + Ground (interconnection)
• Refrigeration connections: 1/4" - 3/8"
• Gas charge: 0.60 kg R32
• Extra charge: 15 g/m²
• Maximum pipe length: 20 m
• Maximum elevation difference: 15 m

Ideal for: Bedrooms, small offices, studios or rooms up to 25m² that require efficient, extremely quiet air conditioning with smart remote control via Wi-Fi.

EAN code: 8435483869479

Model: HTWS026IX75B
