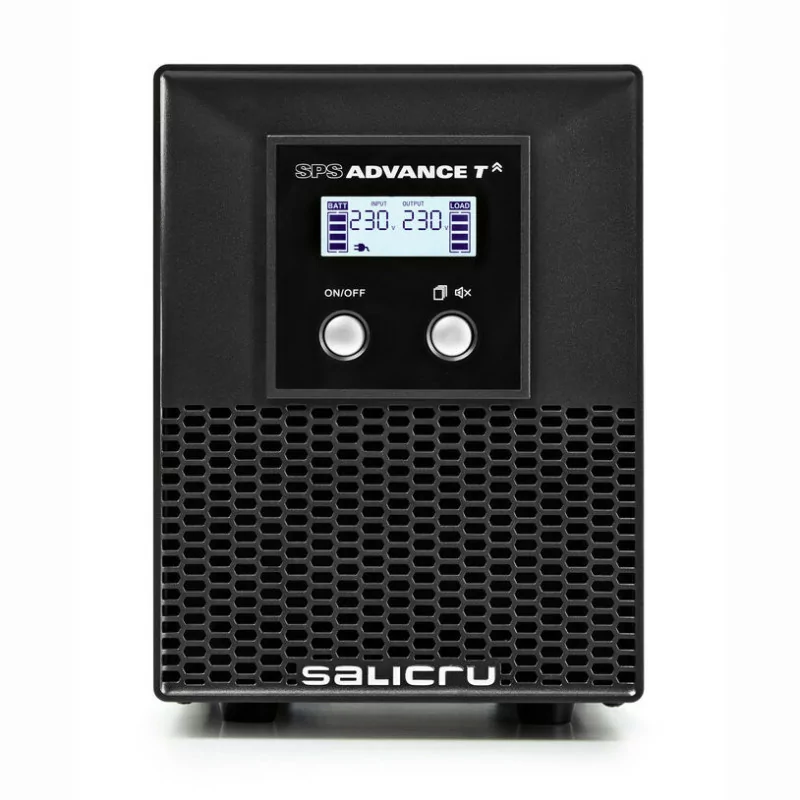

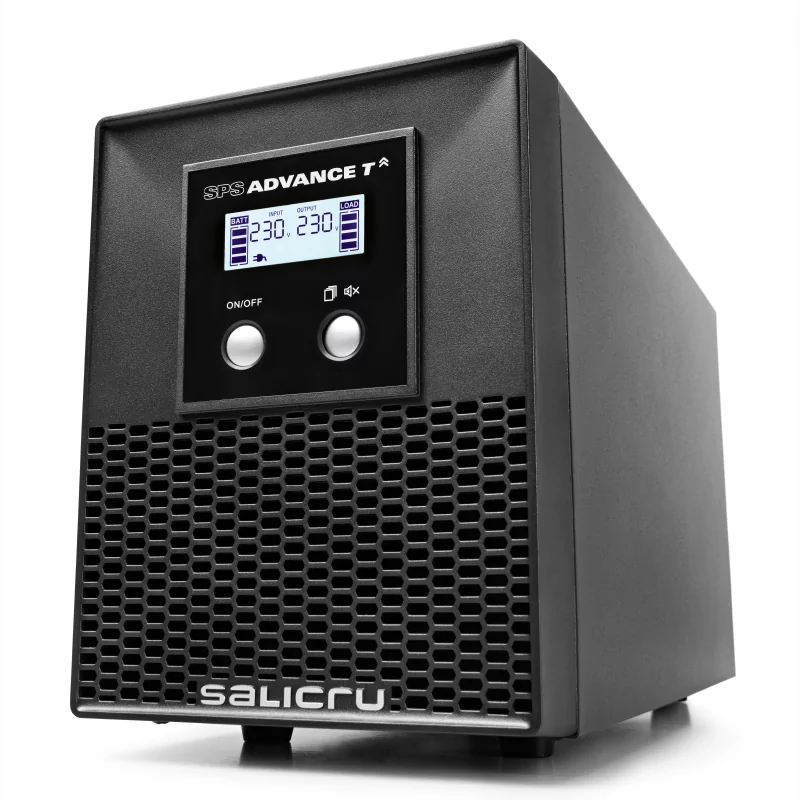

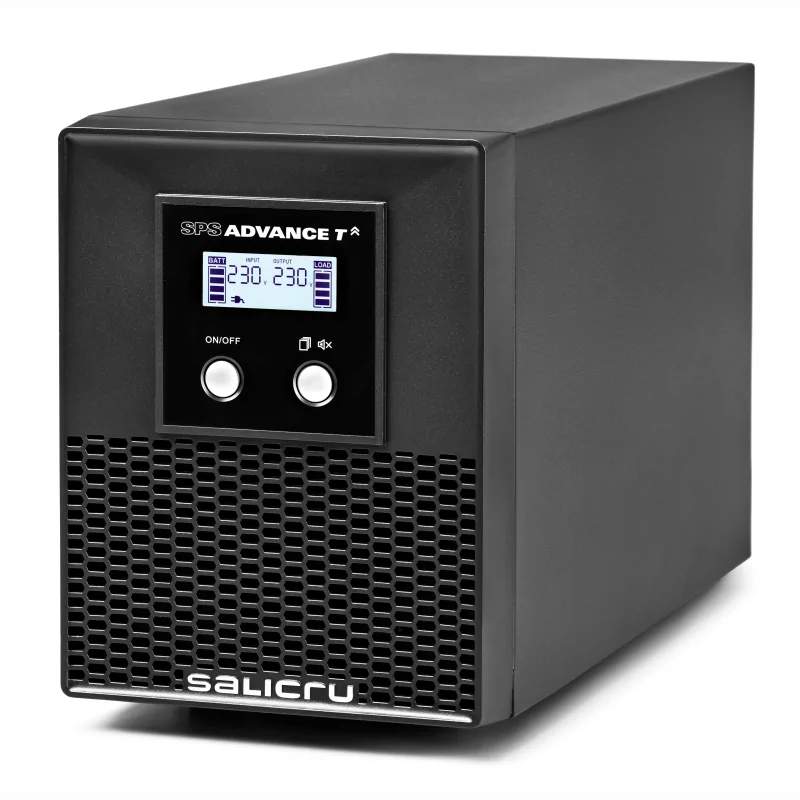

SPS ADVANCE T SERIES

Salicru's SPS ADVANCE T series offers, as a UPS (Uninterruptible Power Supply System) solution, optimal levels of efficiency and reliability for all critical devices that require continuity and reliability in the electrical supply. They feature a very compact tower format to save space in server and computing rooms. Likewise, the technology available is line-interactive to combat any fluctuations coming from the power supply, together with an output voltage that is always sinusoidal, the highest quality to supply all sensitive loads.

LINE-INTERACTIVE TECHNOLOGY

The Line-interactive technology is based on an AVR automatic voltage regulator (Buck/Boost) that attenuates possible fluctuations in the input voltage, simultaneously causing less use of the batteries, extending their life and providing maximum autonomy, if necessary. .

USB INTERFACE FOR MORE CONTROL

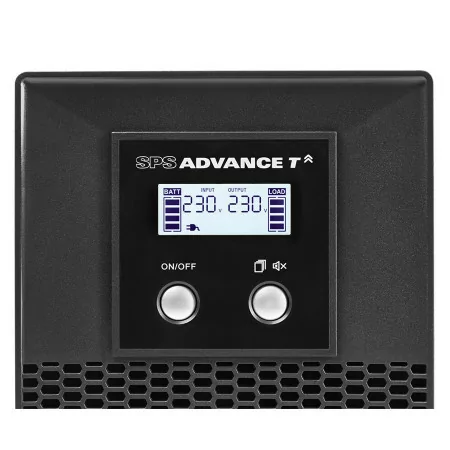

For an easier and more practical use, it has, on the one hand, a monitor with all the information about the operation of the equipment and about the electrical supply (input/output voltage, % load, % battery, etc.) and, on the other hand, extensive communication options with the outside world via the USB interface with HID protocol, the monitoring and management software (downloadable) or the communication options via the built-in smart slot (SNMP).

CONTROL SOFTWARE

It includes UPS monitoring and management software, allowing orderly closure of files and programs in the event of a prolonged power outage. Valid for Windows, Unix, Linux and Mac family.

Specifications:

-Capacity: 1500VA / 1050W

-Technology: Line-interactive

Prohibited:

-Nominal voltage: 230V

-Nominal frequency: 50 / 60 Hz

- Stabilization: AVR Buck/Boost

Exit:

-Voltage: 230V

-Voltage accuracy: ±10%

-Frequency: 50 / 60 Hz ± 1 Hz

-Waveform: Pure Sinusoidal

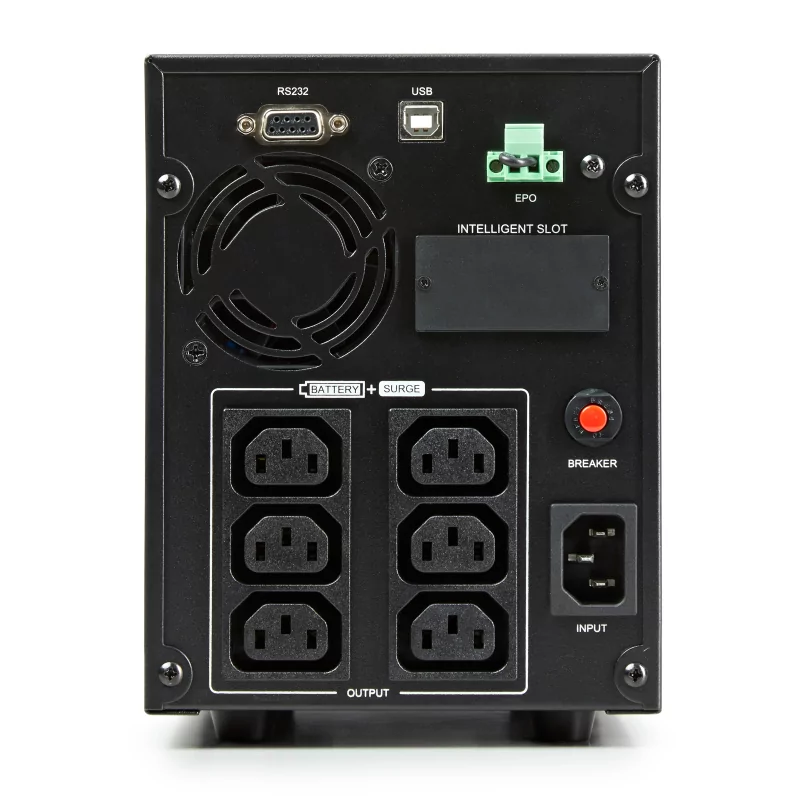

-Type of sockets: 6 x IEC C13

Communication:

-Interface: RS-232 / USB (HID protocol)

-Slot for SNMP / potential-free contacts / MODBUS: Yes

-Monitoring software: Compatible with Windows, Mac and Linux

Indications:

-LCD + keyboard: Yes, multifunction

-Values shown: Input and output voltage / % load / % battery / autonomy

-Levels: Connected Load / Overload / Battery / Low Battery

-Alarm: Battery / Low Battery / Overload / Anomaly

Battery:

-Type: Battery Type: Sealed Pb-Ca, AGM, maintenance free

-Protection: Built-in current limiting

-Charge time: 4 hours at 90%
