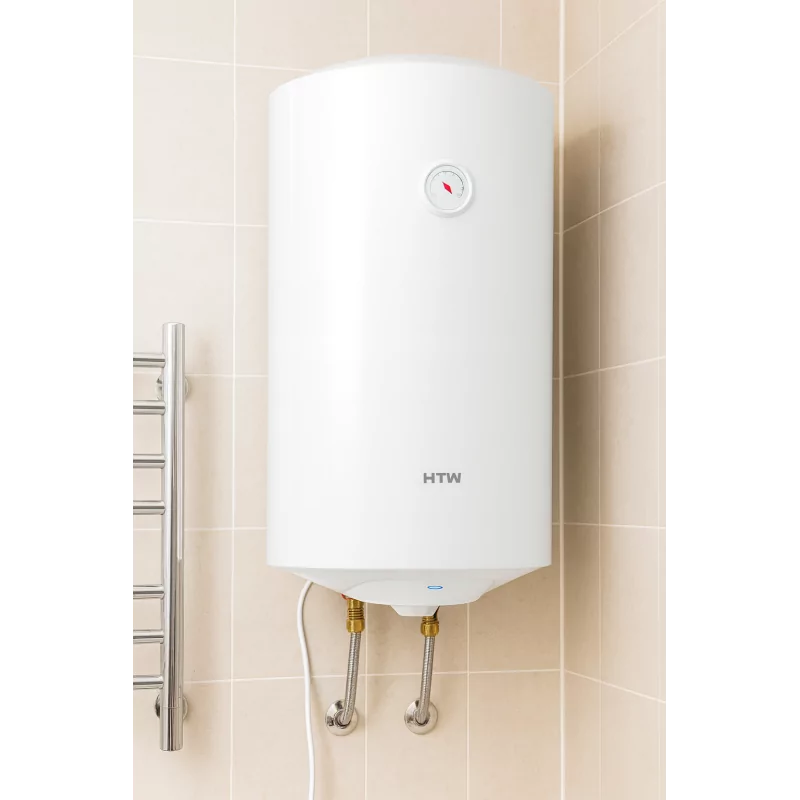

Vertical water heater 100L HTW
AQUA range - EVOLUTION - HTW-TV-100EVO

• Large 100L capacity – ideal for families of up to 4 people, ensuring hot water is available for several consecutive showers.
• Adjustable temperature (30–75°C) – choose the ideal temperature for comfort and energy efficiency.
• Protection against corrosion and wear – thanks to the XL magnesium anode and dry powder enameled tank, it increases the durability of the equipment.
• Greater thermal efficiency – high-density polyurethane insulation that reduces heat loss and keeps water hot for longer.
• High-performance resistance – Incoloy 840 resistance, designed to withstand water of different qualities and extend its useful life.
• Integrated safety – protection against dry overheating, ensuring reliability and peace of mind during use.
• Compact vertical installation – design designed to optimize space, even in homes with reduced technical areas.

This product has a 5-year tank warranty and a 3-year quality guarantee, provided that the maintenance recommended by the brand is carried out.

Technical Specifications

• Feature: HTW-TV-100EVO
• EAN Code: 8435483866515
• Useful capacity: 100 L
• Declared profile: M
• Energy rating: C
• Power supply 230 V / 50 Hz (single-phase)
• Power: 1500 W
• Rated current: 6.5 A
• Operating temperature: 30°C – 75°C
• Recovery time (15 → 40 ºC): 105 min
• Annual electricity consumption: 1427 kWh
• Maximum working pressure: 0.75 MPa
• Insulation: Polyurethane, 20 mm
• Inner tank: Dry powder enameled
• Magnesium Anode 20×300 mm
• Incoloy 840 Resistance
• Vertical Installation
• IPX4 protection rating
• 1/2” water inlets
• Net dimensions (Ø × Height): Ø 450 × 917 mm
• Net weight: 24.2 kg

Important Notes

• Capacity and consumption data obtained under standard conditions.
• Performance may vary depending on installation and usage habits.
• Electrical wiring dimensions must be calculated according to the specific installation.
