Automatic channel selection and power adjustment to optimize overall performance

Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmit power levels of neighboring APs on the same network.

Easy deployment and higher performance by Omada Mesh

With Mesh technology, Omada EAPs save you from the need for extra wires by wirelessly extending your WiFi signal further and more flexibly into hard-to-wire areas.

Optimized Network Performance

Intelligent self-organization optimizes the best path between EAPs, while self-healing ensures you stay online even when an AP goes down.

Ultra-thin design brings more agility

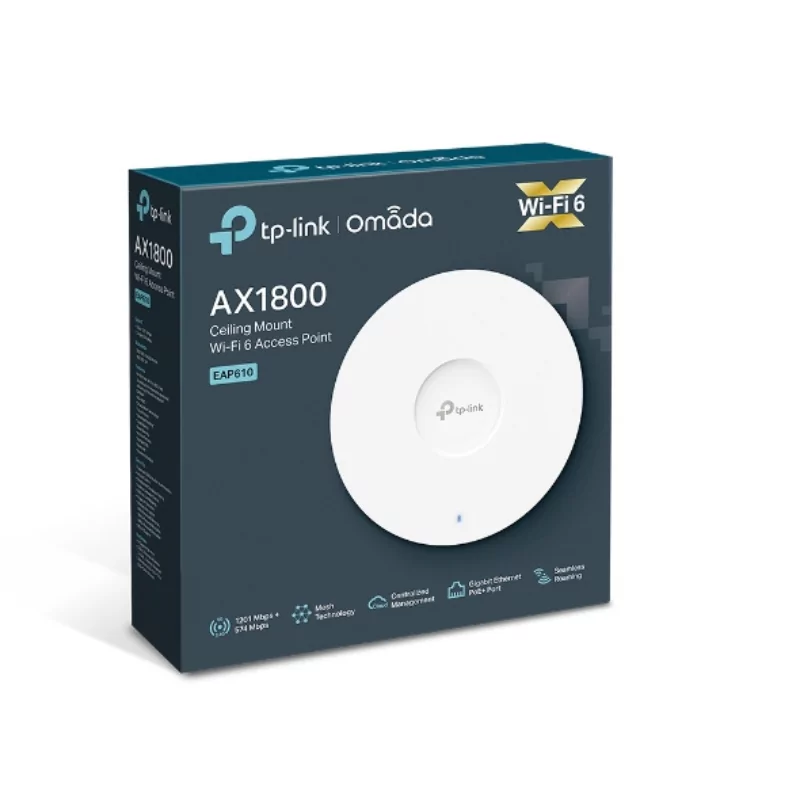

Exceptional performance with a compact design ensures simple WiFi installation while saving space. The sleek appearance makes the EAP610 fit perfectly into any modern office, hotel, classroom or cafe.

Features

• Interface: 1x RJ45 Gigabit Ethernet Port (Supports 802.3at PoE and Passive PoE)
• Button: Reset
• Power supply:
• 802.3at PoE
• 48V/0.5A Passive PoE (PoE adapter included)
• Power Consumption: 12.5W (802.3at PoE or Passive PoE)
• Antenna:
• 2.4 GHz: 2x 4 dBi
• 5 GHz: 2x 5 dBi
• Resistance: IP67
• Mounting: Pole and Wall (Kits included)
• Dimensions: 280.4 x 106.5 x 56.8 mm (without antenna and mounting kit)
• Wireless:
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Transmit Power: CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
• Wireless Security:
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/EnterpriseFCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
