Automatic channel selection and power adjustment to optimize overall performance

Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmit power levels of neighboring APs on the same network.

Easy deployment and higher performance by Omada Mesh

With Mesh technology, Omada EAPs save you from the need for extra wires by wirelessly extending your WiFi signal further and more flexibly into hard-to-wire areas.

Optimized Network Performance

Intelligent self-organization optimizes the best path between EAPs, while self-healing ensures you stay online even when an AP goes down.

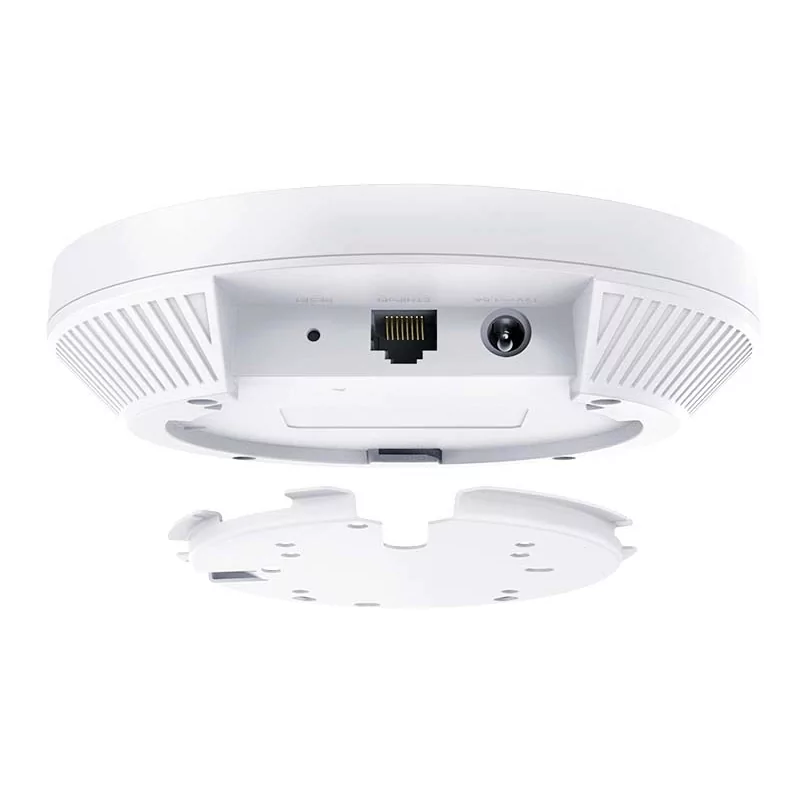

Ultra-thin design brings more agility

Exceptional performance with a compact design ensures simple WiFi installation while saving space. The sleek appearance makes the EAP613 fit perfectly into any modern office, hotel, classroom or cafe.

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequencies: 2.4 GHz and 5 GHz
• Max speed: Up to 1201 Mbps (5 GHz), 574 Mbps (2.4 GHz)
• Client capacity: 250+ concurrent
• Wireless Functions: MU-MIMO, Beamforming, OFDMA, Seamless Roaming
• Wireless Security: WPA3-Personal/Enterprise, WPA2, WPA
• Transmit power: 20 dBm (2.4 GHz), 23-25 dBm (5 GHz)

• Ethernet port: 1 x Gigabit RJ-45
• Power supply method: PoE 802.3at, passive PoE 48V, or 12V DC (does not include adapter)
• Maximum power consumption: 11 W (PoE), 9.9 W (DC)

• Omada App: Yes
• Centralized Controller: Support for Omada Cloud-Based Controller, Hardware Controller (OC300/OC200), and Software Controller
• Cloud access: Yes
• SNMP: v1, v2c, v3
• Web Management: HTTP/HTTPS
• VLAN Management: Yes
• Zero-Touch Provisioning: Yes

• Operating temperature: 0–40℃
• Operating humidity: 10–90% (non-condensing)
• Certifications: CE, FCC, RoHS

• Dimensions: 160 × 160 × 33.6 mm
• Antenna Type: Internal omnidirectional (2x 4 dBi at 2.4 GHz, 2x 5 dBi at 5 GHz)

• Included: Access Point, Ceiling/Wall Mounting Kits, Installation Guide
