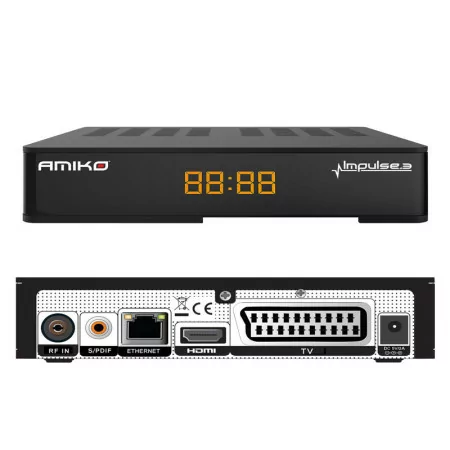

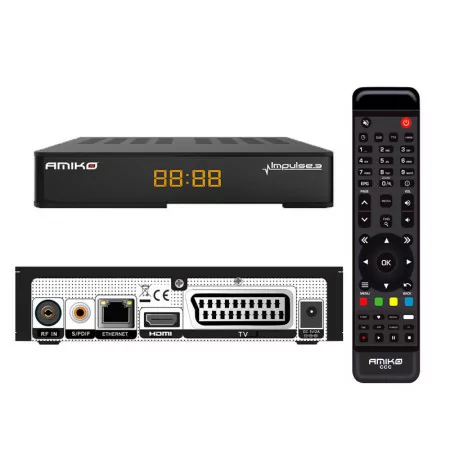

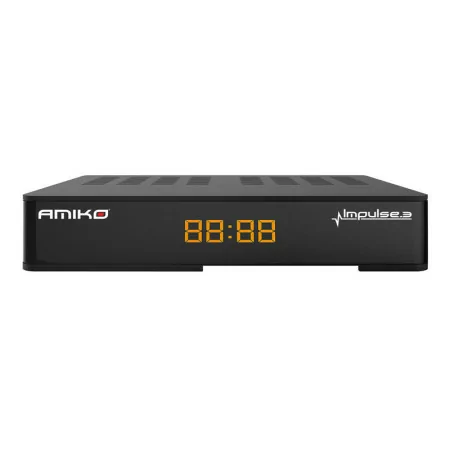

Amiko Impulse 3 - Cable T2/C - Full HD

DTT channel digital receiver (DVB-T) and cable TV (T2 and C)

The Amiko Impulse 3 - Cable T2/C is a Full HD receiver for receiving terrestrial programs or for receiving cable programs.

It is equipped with a Conax card reader, Full HD 1080p quality with capacity for more than 6000 programmable channels (TV and Radio).

System resources

• Main processor: 333 MHz
• Flash Memory: Serial Flash 8MB x 1
• RAM DDR: DDRIII 1333 16bit 1Gbit

MPEG TS A/V decoding

• Transport stream: MPEG-2, H.265
• Input Rate: Max.120Mbit/s
• Radio Aspect: 4:3, 16:9, Letter Box
• Video decoding: MPEG-4/H.265 SP@L3 to ASP@L5, AVC, HP@level 4.1, MP@level 4.1
• Video resolution: 720*480P/I, 720*576P/I, 1280*720p, 1920*1080i, 1920*1080p
• Audio decoding: MPEG-1/2,AAC-LC,HE-AAC,MP3,Dolby Digital plus
• Audio Mode: Left/Right/Stereo/Mono
• Sampling rate: 32, 44.1 and 48KHz

Power supply

• Input voltage: 5V DC
• Power consumption: 18W max.
• Standby power consumption: <0.5W
• LAN: 10/100M RJ-45 Ethernet connection

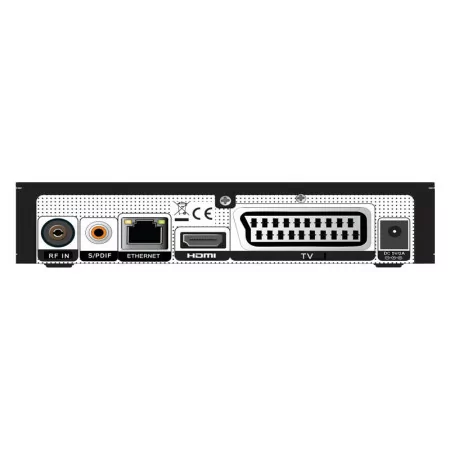

A/V and data input/output

• SCART: CVBS video output / L/R audio output
• USB: One USB 2.0 slot
• S/PDIF: Coaxial
• Digital Video Output
• IR Port: Internal and Jack Type

Specifications

• Size: 144mm*40mm*110mm
• Net Weight: 0.25KG
• Operating Temperature: 0°C~+45°C
• Storage temperature: -10°C~+70°C
• Storage humidity: 5%~95% RH (non-condensing)
• Conax card reader included
• More than 6000 programmable channels (TV and Radio)
• external infrared sensor
• Mounting on TV (Sticker included in package)
• 2 high data transmission USB 2.0 ports
• Ethernet LAN connection and Wi-Fi support via adapter (only with Ralink RT5370 chip)
• RSS reader and weather functions
• Full HD picture quality (1080p) via HDMI
• Channel recording function for external storage

Brand

Amiko

Reference

Amiko Impulse 3
