Specifications:

General:

• Inner Conductor: Solid Copper
• Dielectric: Foamed PE
• External Conductor: AL Foil
• AL Braid: 1650.15mm
• Power cable: Black and Red PVC
• Coating: Virgin White UV PVC
• Printing: Black ink, legible, cannot be erased with your fingers.
• Packaging: Red plastic caps on both ends.

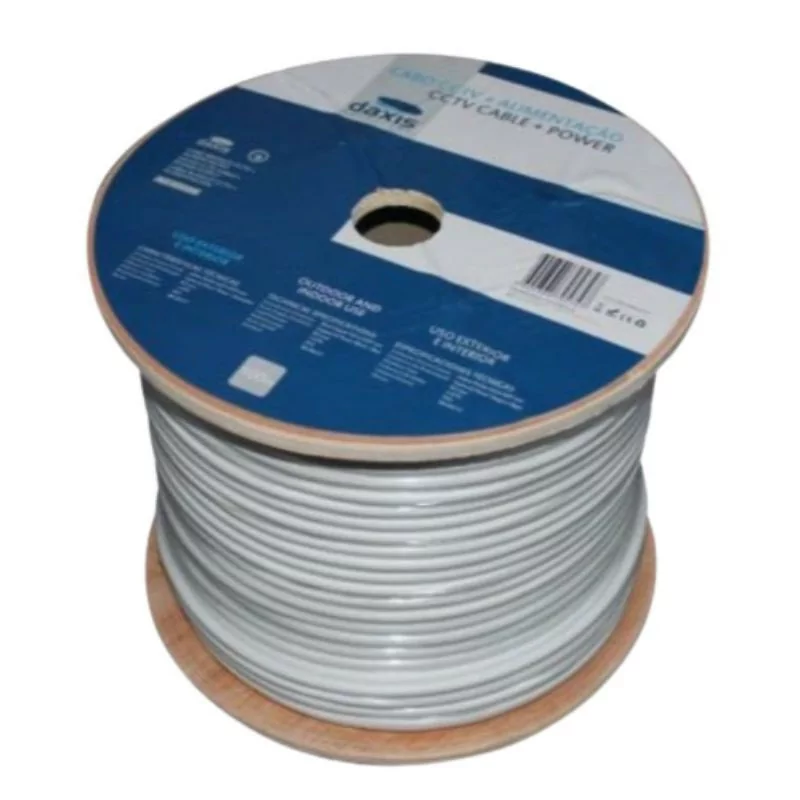

• ED0350, 100m wooden spool per outer box.
• Label: Approved CPR label and circular label required to be attached to each wooden spool

Dimensions – (mm)

• Inner conductor diameter: 0.61
• Foam dielectric diameter: 3.30
• Power cord: 24*0.18 CU
• Diameter over casing: 5.20
• Cladding wall thickness: 0.60 nominal
• Diameter over outer casing: 6.80-8.50
• 100m plastic spool (DdA): 275150230
• 100m box (CLA): 280280240
• Round label: 270mm
• CPR Label: 55*70
• Print height: 2.50 ±0.50

Properties:

• Operating temperature: -10℃ to +60℃
• Characteristic impedance - Ohms: 82 ± 3
• Capacitance – pF/m: 48 ± 2
• Max DC resistance of inner conductor - Ohms/km: 62
• Max. DC resistance of shielding conductor - Ohms/km: 31
• Jacket spark - AC volts: 2500
• Return loss, minimum dB 5-1000 MHz: 20
• Attenuation, dB/100m (Nominal):
• 5MHz: 3.0
• 50MHz: 11.0
• 100MHz: 16.0
• 200MHz: 22.0
• 500MHz: 35.0
• 800MHz: 45.0
• 1000MHz: 51.5

Brand

Daxis

Reference

ED0350
