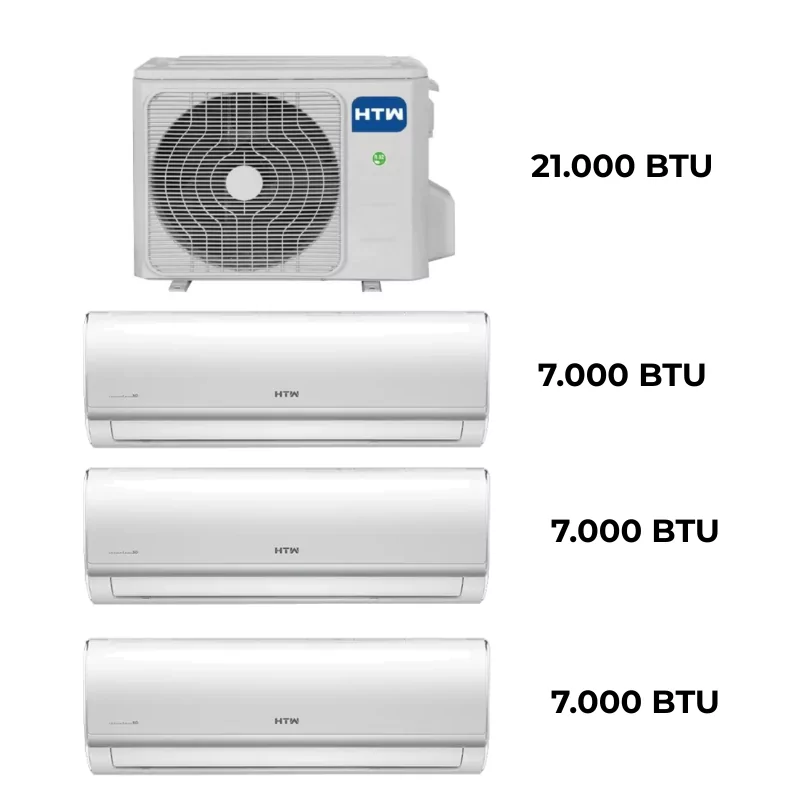

HTW Multisplit Outdoor Air Conditioning Unit - 21,000 BTU - IX41B2R32

Golden Fin Protection

This feature provides a special anti-corrosion coating, known as Golden Fin , which protects the outdoor units against damage caused by exposure to air and moisture, thus extending the life of the equipment.

Anti-oxidation housing

The structure of the air conditioning outdoor unit is constructed with oxidation- resistant materials , providing additional protection against the corrosive effects of environmental factors such as humidity and atmospheric pollutants.

Greater efficiency

This system is designed to operate with significantly greater energy efficiency compared to traditional systems, resulting in lower energy consumption and reduced operating costs .

Connectable indoor units

The indoor units can be easily connected to each other, offering flexibility in installation and allowing the system to be adapted according to the specific needs of the space.

DC Inverter Compressor and Fans

This system uses a direct current (DC Inverter) compressor and fans, which are capable of dynamically adjusting their operating speed as needed. This results in more efficient operation, greater comfort and energy savings.

• Capacity kW: 6.15 (1.94~6.86)
• Btu/h capacity: 21,000 (6,800~22,500)
• Power consumption: 1.905 (180~2.200)
• SEER: 6.1
• Energy classification Fr
• Power supply: 220240V (1 Phase ~ 50Hz)io: A++

• Capacity kW: 6.6 (1.7~7.3)
• Btu/h capacity: 22,000 (4,947~22,800)
• Power consumption: 1.738 (350~1.800)
• SCOP: 4
• Energy rating: A+

• Sound power: 65 dB(A)
• Sound pressure: 57.5 dB(A)
• Air flow: 3000 m3/h
• Operating temperature: 15~50 / -15~24 ºC
• Refrigerant Type/Charge: 1.5 R32/Kg
• Additional load >7.5: 12 g/m

• Outdoor unit:

• Net dimensions (W×H×D): 890x673x342 mm
• Gross dimensions (W×H×D): 1030x750x438 mm
• Net weight: 43.3 kg

Cooling tube:

• Liquid - Gas: 1/4-3/8x3
• Maximum length: 60 m
• Max. length (1Inside): 30 m
• Unequal. max. (inside/outside): 15 m
• Unequal. max. (between int.): 10 m

Electrical connections

• Power: 2x4+T mm
• Interconnect: 3x2.5+T mm

Brand

HTW

Reference

KIT-AC-21-1

Stock Online

Sold out

Stock Store

Sold out

EAN13

8435483837072

UPC

5
