Automatic Channel Selection and Power Tuning to Optimize Overall Performance

Provides more powerful wireless performance by significantly reducing WiFi interference by automatically adjusting channel settings and transmit power levels of the closest APs on the same network.

Easier Deployment & Higher Performance with Omada Mesh

With Mesh technology, Omada's EAPs reduce the passage of network cable sections, thus expanding the WiFi network when there are some constraints in areas where it is not possible to install network cables.

Optimized Network Performance

Intelligent self-organization optimizes the best data path between EAPs, while self-healing technology ensures it stays online even when an AP goes down.

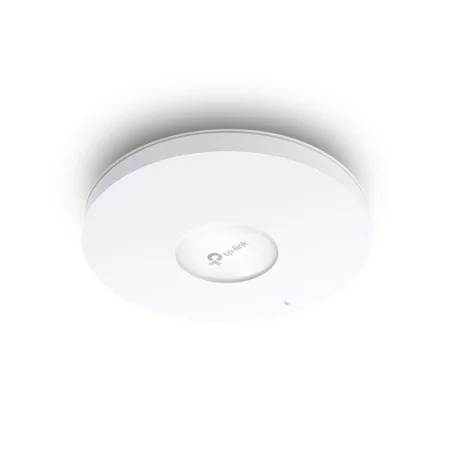

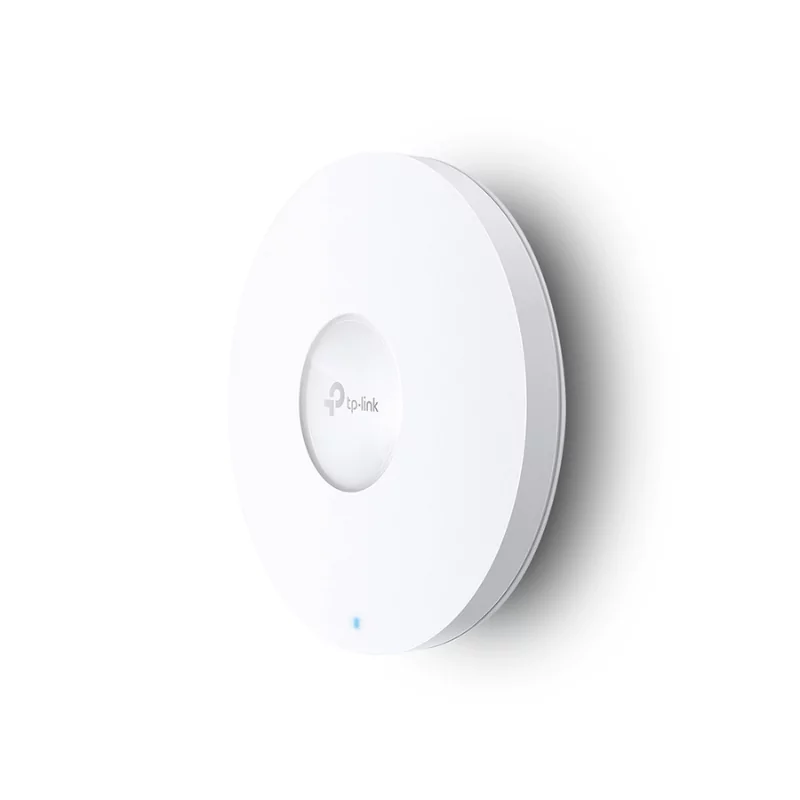

Ultra Slim Design

Exceptional performance with a compact design ensures a simple and framed Wi-Fi installation. The sleek appearance makes the EAP653 blend seamlessly into any modern office, hotel, classroom or cafe.

Easy to Assemble with Refined Business Design

Characteristics:

• Interface: 1 x Gigabit Ethernet Port (RJ-45) (supports IEEE802.3at PoE)
• Button: Reset
• Power Supply: 802.3at PoE / 12V DC (DC Adapter not included)
• Power Consumption: 13.5 W
• Product Dimensions: 160 x 160 x 33.6 mm
• Antenna Type: Internal Omni, 2.4 GHz: 2x 4 dBi / 5 GHz: 2x 5 dBi
• Mounting: Ceiling/Wall Mount (kits included)

WiFi Features:

1. Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
2. Wireless Frequencies: 2.4GHz and 5GHz
3. Signal Rate: 5GHz: Up to 2402Mbps / 2.4GHz: Up to 574Mbps
