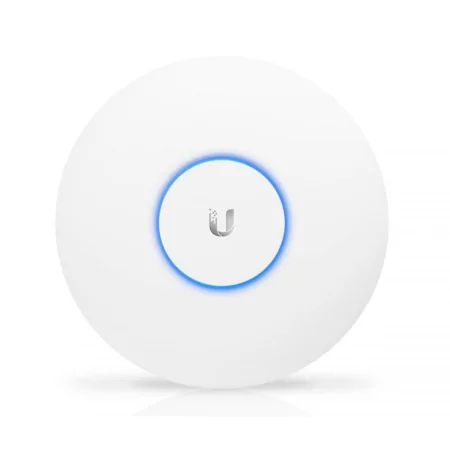

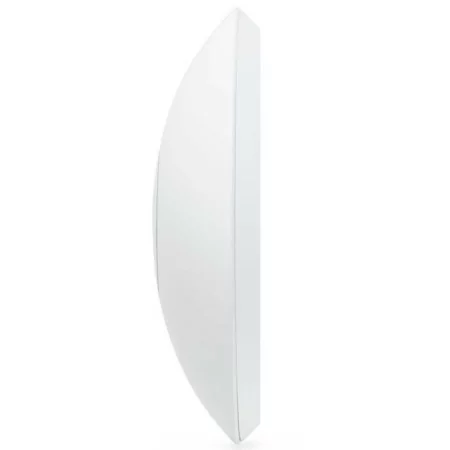

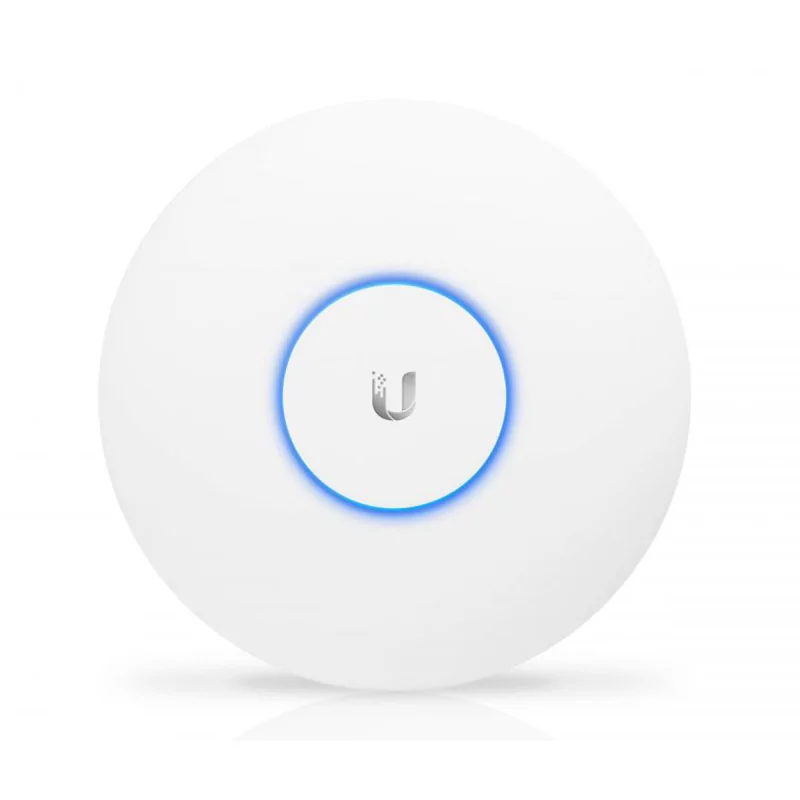

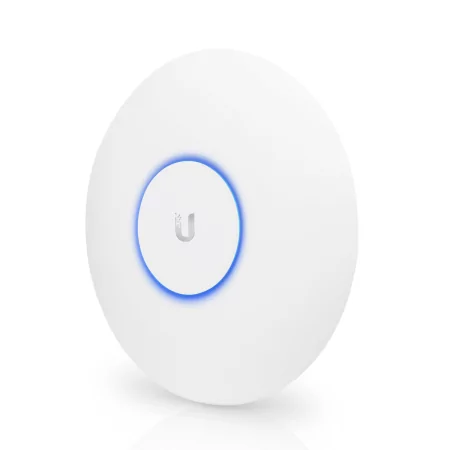

The UniFi AC LR AP features 802.11ac Wi-Fi technology, with an exquisite industrial design ideal for deployment of high-performance, long-range wireless networks.

INNOVATIVE DESIGN

The innovative design provides a long-range antenna for a wider coverage area. Provides high transmission power to connect distant customers.

DESIGNED FOR A GREAT RF PERFORMANCE

The redesigned UniFi Controller optimizes RF performance:

• Spectral analysis - Gathers feedback on interference on the 5 GHz and 2.4 GHz channels.
• Band Direction - Brings customers quickly to the 5 GHz crystal band.
• Equity - Minimizes problems for customers through the possibility of limiting their access to the antenna time.

SCALEABLE BUSINESS WI-FI MANAGEMENT

UniFi Controller v4 is a powerful enterprise software ideal for wireless deployments of high density clients that require low latency and high performance uptime. With its software-based capabilities the UniFi virtual control plan enables unlimited scalability under a centralized command. Access the UniFi controller remotely to update the deployed UniFi APs.

• Specifications:
• Environment:
• For indoor use 2.4 GHz
• Speed: Up to 450 Mbps
• 2.4 GHz MIMO: 3x3
• 5 GHz Speed: Up to 867 Mbps
• 5 GHz MIMO: 2x2
• Antennas: 1 x Dual-Band Tri-Polarity
• 2.4 GHz: 3 dBi
• 5 GHz: 6 dBi
• Network Interface: 1 x 10/100/1000 Ethernet Port
• Buttons: Reset
• Max. TX Power: 2.4 GHz 24 dBm / 5 GHz 22 dBm
• Range: 183 m
• Gigabit Ethernet: Yes
• Wi-Fi standards: 802.11 a / b / g / n / a
• Simultaneous Dual band: Yes
• PoE Mode: 24V Passive
• PoE Wireless Security: WPA WPA-PSK WPA-Enterprise (WPA / WPA2 TKIP / AES)
• Dimensions: 175.7 x 175.7 x 43.2 mm
• Weight: 240 g
• Power Consumption Max: 6.5 W

• Package content:
• 1 x UniFi UAP-AC-LR
• Wall and ceiling mount kit
