Superior Wi-Fi speeds with MU-MIMO technology

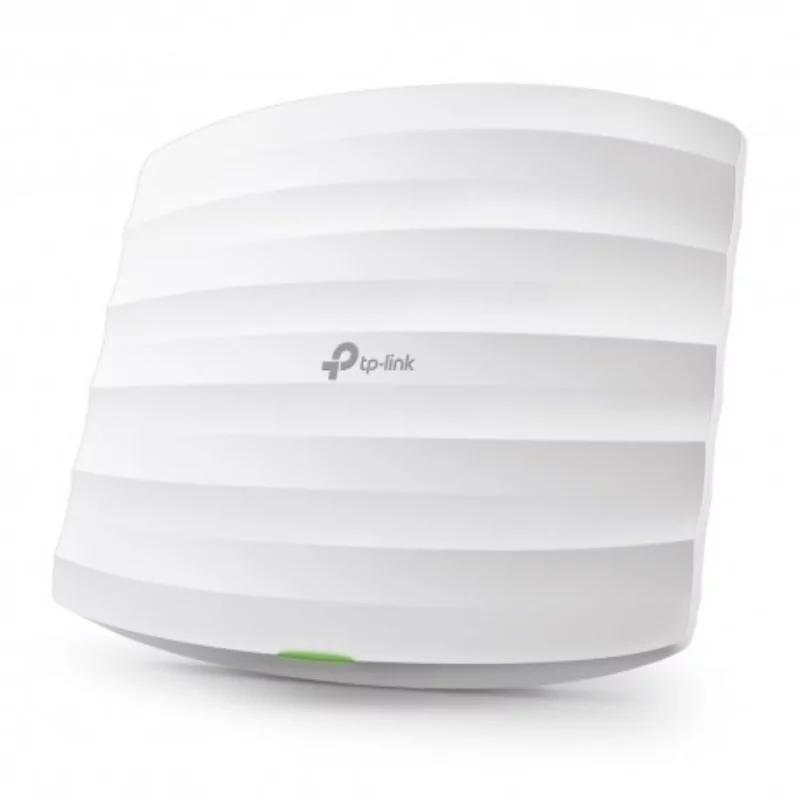

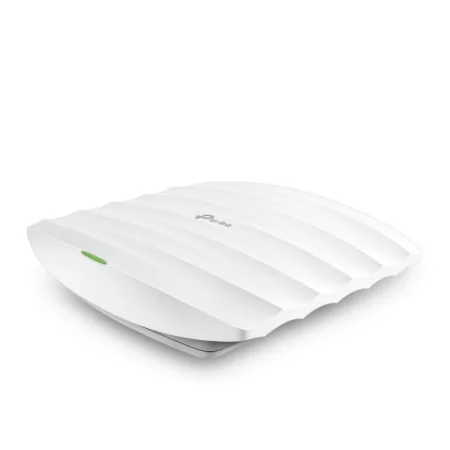

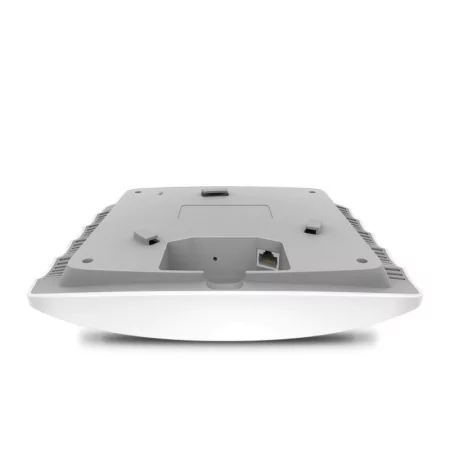

Equipped with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP223 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Traditional SU-MIMO AP (Single-User MIMO)

Sends data to one device at a time which causes more latency.

MU-MIMO (multi-user MIMO) EAP

Sends data simultaneously to multiple devices for faster speed.

Multiple PoE options for easy installation

The EAP223 supports 802.3af/at PoE and Passive PoE power supply, which can be powered by a PoE switch or PoE adapter, making deployment easy and flexible.

• Transmit power: ≤20 dBm (2.4 GHz), ≤23 dBm (5 GHz)
• Frequency: 2.4GHz, 5GHz
• Max speed: 450 Mbps (2.4 GHz) / 867 Mbps (5 GHz)
• Antennas: 2.4 GHz: 4 dBi, 5 GHz: 5 dBi

• Ethernet Ports: 1 Gigabit Port (RJ-45)
• Power Supply: 802.3af/at PoE or 48V Passive PoE
• Power consumption: 9.7W (EU) / 12.1W (US)

• Web Management: HTTP/HTTPS
• Multi-site Management: Yes
• SNMP: Support

• Operating temperature: 0°C ~ 40°C
• Operating Humidity: 10% ~ 90% RH non-condensing
• Certifications: CE, FCC, RoHS

• Dimensions: 205.5 × 181.5 × 37.1 mm
• Weight: 450g (with assembly)

• Included: EAP223, PoE Adapter (not included), Mounting Kits, Installation Guide

Brand

Tp-link Omada

Reference

EAP223

Stock Online

Low stock

Stock Store

Available soon

Color

White

Ethernet LAN Speed

Wi-Fi Speed

867 Mbit/s

Dual-Band

Yes

GHz

2.4 / 5
