Superior Wi-Fi speeds with MU-MIMO technology

Equipped with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Multiple PoE options for easy installation

The EAP225 supports both 802.3af/at PoE and Passive PoE power supply, which can be powered by a PoE switch or the provided PoE adapter, making deployment easy and flexible.

• Transmit Power: Max. 23 dBm (5 GHz), 20 dBm (2.4 GHz)
• Frequency: 2.4 GHz and 5 GHz
• Max speed: 867 Mbps (5 GHz) / 450 Mbps (2.4 GHz)
• Antennas: 3 internal Omni-directional antennas (2.4 GHz: 4 dBi, 5 GHz: 5 dBi)

• Ethernet Ports: 1 Gigabit Port (RJ-45)
• Power Supply: Passive PoE 24V, PoE 802.3af/at
• Power consumption: 10.5W (EU), 12.6W (US)

• Web Management: HTTP/HTTPS
• SNMP: Support
• Multi-site Management: Yes

• Operating temperature: 0°C ~ 40°C
• Operating Humidity: 10% ~ 90% RH
• Certifications: CE, FCC, RoHS

• Dimensions: 205.5 x 181.5 x 37.1 mm (without antennas)
• Weight: 450 g (with mounting kit)

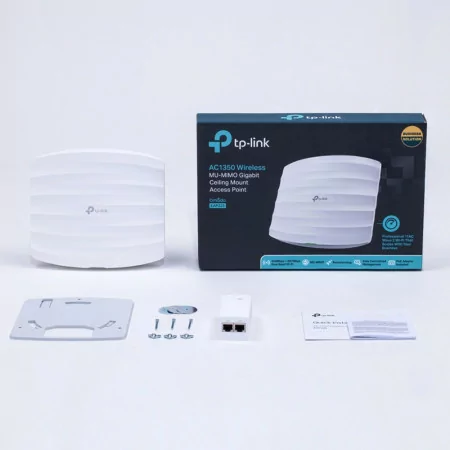

• Included: EAP225, Passive PoE adapter, power cable, mounting kits, installation guide

Brand

Tp-link Omada

Reference

EAP225

Stock Online

Low stock

Stock Store

Low stock

Color

White

Ethernet LAN Speed

Wi-Fi Speed

867 Mbit/s

Dual-Band

Yes

GHz

2.4 / 5
