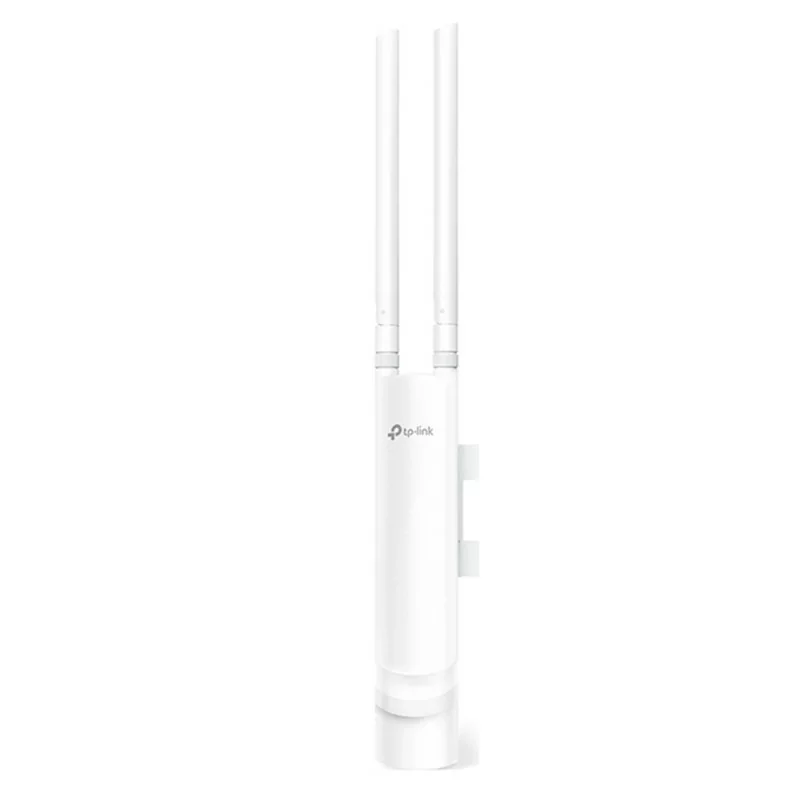

TP-Link Access Point - EAP225-Wall - AC1200 Gigabit Dual-Band - Wall

Omada Mesh Technology

Intelligent Self-Organization

Omada EAPs with Mesh technology automatically choose the best route to extend your Wi-Fi even further and with more flexibility.

Self-healing

If one link has an issue, the system will automatically reroute data through other Omada devices to ensure you stay online.

Fast roaming for seamless mobility

802.11k and 802.11v fast roaming automatically switches clients to the access point with the optimal signal with seamless transition on the move.* This enables sensitive applications such as VoIP and video conferencing to be uninterrupted.

Weatherproof enclosure specially designed for outdoor environments

Rated IP65 during ingress protection testing, a resilient weatherproof enclosure protects access points from harsh outdoor conditions.

• Frequencies: 2.4 GHz and 5 GHz
• Max speed: 300 Mbps (2.4 GHz), 867 Mbps (5 GHz)
• Client capacity: 200+ concurrent
• Wireless Features: MU-MIMO, QoS, VLANs, SSID mapping, Rogue AP detection
• Transmit power: 20 dBm (2.4 GHz), 27 dBm (5 GHz)
• Antenna: 3 dBi (2.4 GHz), 4 dBi (5 GHz)

• Ethernet Port: 1 x RJ45 Gigabit
• Power supply method: PoE 802.3af/at, passive PoE
• Maximum power consumption: 10.5W

• Management App: Omada
• Web Management: HTTP/HTTPS
• SNMP: v1, v2c
• Dynamic DDNS: Yes

• Operating temperature: -30 to 70℃
• Operating humidity: 10 to 90% (non-condensing)
• Certifications: CE, FCC, RoHS

• Dimensions: 215.7 x 45 x 37.7 mm (without antenna), 403.8 x 90.7 x 55.2 mm (with antenna)
• Weight: 300g (without mounting kit), 315g (with kit)

• Included: EAP225-Outdoor Access Point, PoE adapter, power cable, mounting kit, installation guide
